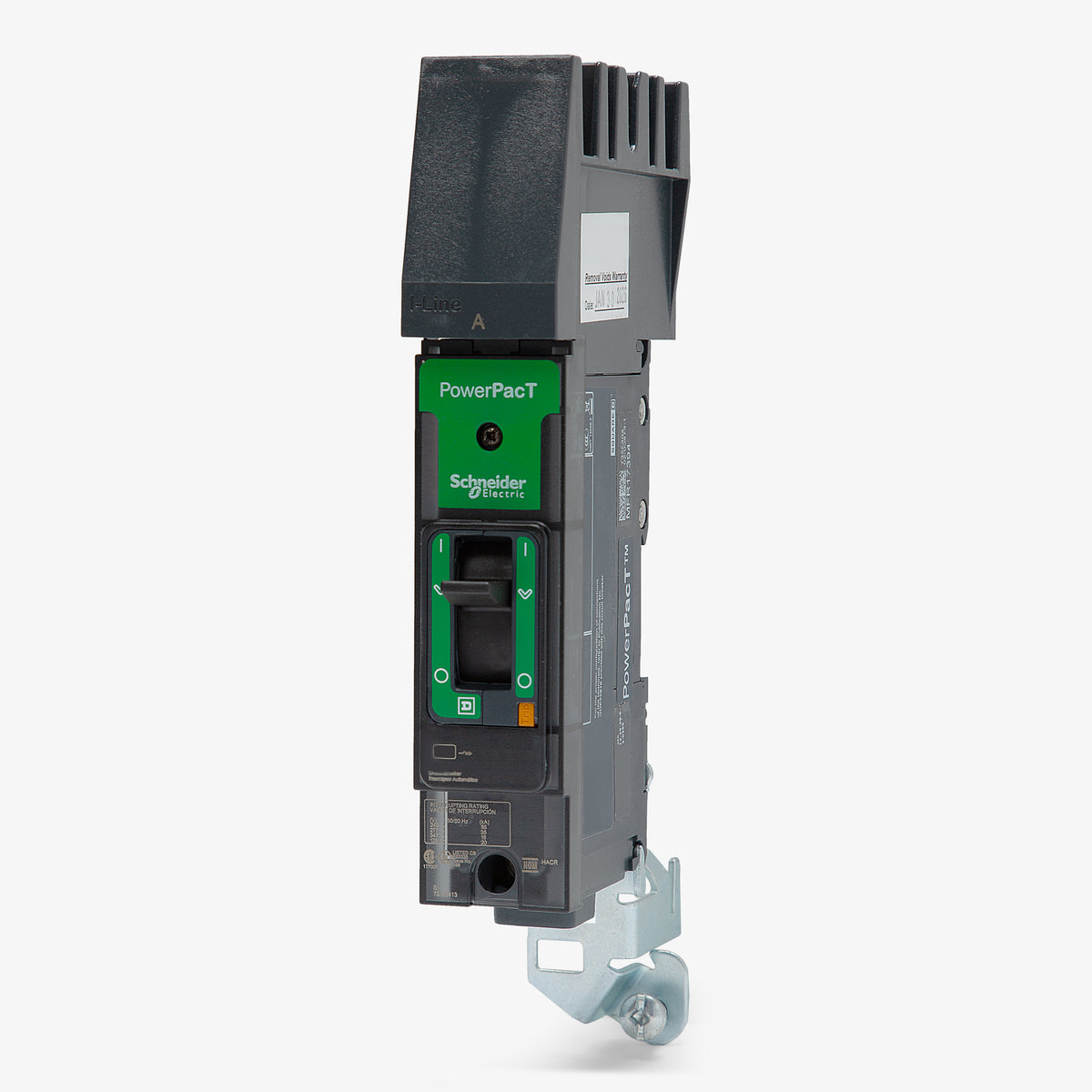

Square D BDA140151 Molded Case Circuit Breaker
- 15A
- 1 Pole
- I-Line
Square D
BDA140151
Molded Case Circuit Breaker
Brand
Square D
SKU
BDA140151
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D BDA140151 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Square D BDA140151 is a 1-pole, 15A molded case circuit breaker from the PowerPacT B-Frame family. It delivers dependable thermal-magnetic protection for power distribution systems. This breaker mounts into Square D I-Line panelboards and switchboards. It features a factory-configured A-phase connection and serves as a direct replacement for legacy FA14015A breakers. Rated at 18 kAIC at 480Y/277V, it includes an 80% continuous rating.Specifications
| Brand | Square D |
|---|---|
| Series | BDA |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 10kA @ 125VDC |
| Frame Type | BDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No 5, EN/IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersWhat phase connection does the BDA140151 circuit breaker use?
The "1" at the end of the BDA140151 catalog number indicates it is configured for an A-phase connection on Square D I-Line panelboards and switchboards.
How is the BDA140151 installed in a panel?

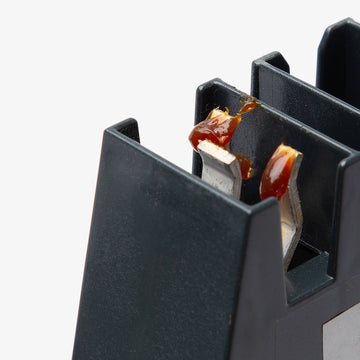

This breaker features an I-Line style plug-on jaw for the line side connection and a mechanical lug on the load side. The load lug accepts 14 to 2/0 AWG aluminum or copper wire.
What does the "D" in the BDA140151 part number represent?
The "D" indicates the interrupting rating level for this PowerPacT B-frame breaker. It provides an 18 kA interrupting rating at 480Y/277VAC and 25 kA at 120/240VAC.
Is the BDA140151 rated for 100% continuous current?
No, this breaker has a standard 80% continuous current rating. Continuous loads should not exceed 12 amps, which is 80% of its 15-amp rating.
Is the trip unit on the BDA140151 adjustable?
No, this breaker features a fixed thermal-magnetic trip unit. It has a fixed hold current of 400A and a fixed trip current of 600A.
Can the PowerPacT B-frame replace older Square D legacy breakers?
Yes, PowerPacT B-frame breakers like the BDA140151 are the modern replacements for legacy Square D F-frame (FA, FAL, and FH) 1-pole I-Line circuit breakers.
Does the BDA140151 have a push-to-trip feature?
Yes, all PowerPacT B-frame circuit breakers include an integral push-to-trip button on the cover. This allows you to manually trip the breaker to verify the mechanical operation of the trip mechanism.
