Square D BDA160251 Molded Case Circuit Breaker
- 25A
- 1 Pole
- I-Line
Square D
BDA160251
Molded Case Circuit Breaker
Brand
Square D
SKU
BDA160251
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

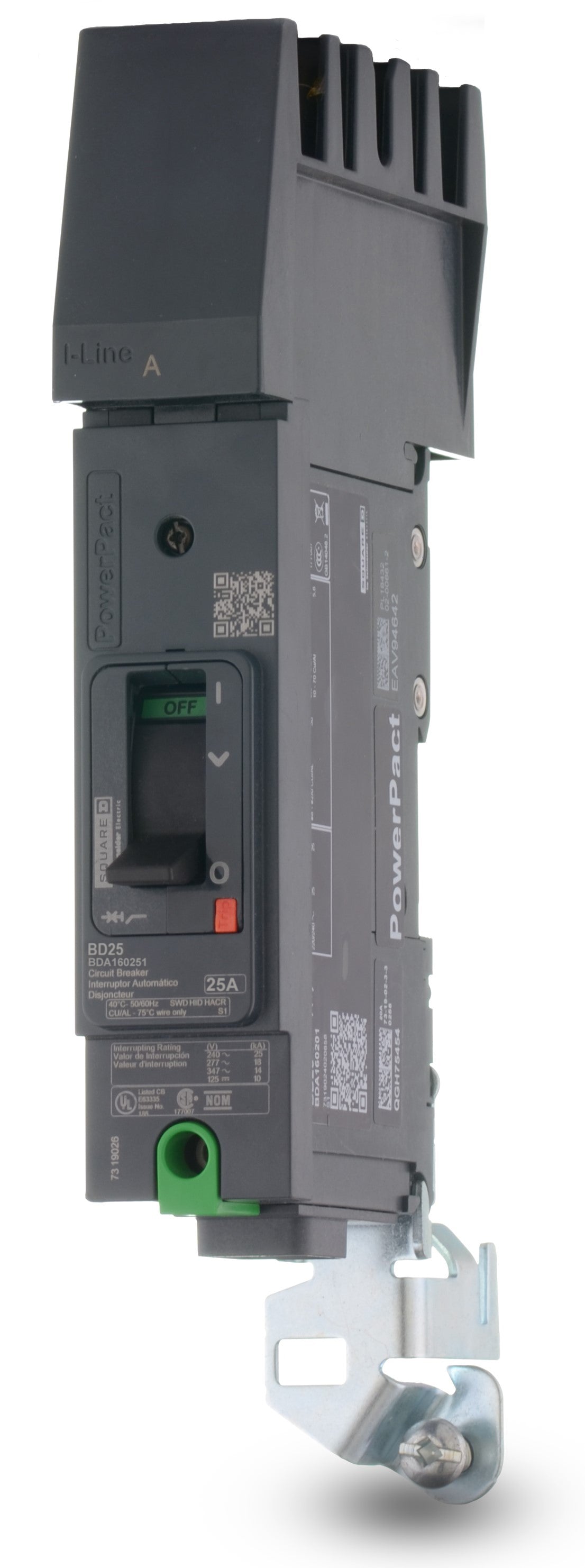

Square D BDA160251 - 25A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 1 Pole Molded Case Circuit Breaker
30A 1 Pole Molded Case Circuit Breaker
30A 1 Pole Molded Case Circuit Breaker
Description
The BDA160251 is a 1-pole, 25-amp molded case circuit breaker from Square D's PowerPacT B-Frame lineup, designed for commercial and industrial distribution. It features a Phase A connection and provides reliable long-time and instantaneous (LI) thermal-magnetic protection. This unit mounts into Square D I-Line panelboards and switchboards. It serves as an exact, modern replacement for legacy FA14025A breakers. Rated at 25kAIC at 240V and 14kAIC at 600Y/347V, it includes Visi-Trip indication.Specifications
| Brand | Square D |
|---|---|
| Series | BDA |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 600Y/347VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 10kA @ 125VDC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, GB 14048.2, NEMA AB 1, NMX J-266, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Visual Trip Indicator, Non-Interchangeable Trip, RoHS Compliant, Mercury Free |
Product FAQs
6 answersCan I use the BDA160251 to replace an older FA or FH series circuit breaker?
Yes. The PowerPacT B-frame is the modern, direct replacement for legacy Square D FA and FH series 1-pole circuit breakers. It maintains the same I-Line mounting footprint for easy retrofitting in existing panelboards.
What does the "D" in the BDA160251 catalog number signify?
The "D" indicates the interrupting rating tier of the PowerPacT B-frame circuit breaker. For this model, it signifies a D-interrupting tier, providing 25kA at 240VAC, 18kA at 480Y/277VAC, and 14kA at 600Y/347VAC.
How does this breaker connect to the panelboard bus?
The BDA160251 features an I-Line style plug-in connection. It uses a plug-on jaw that snaps directly onto the I-Line panelboard bus stack, allowing for faster installation compared to traditional bolt-on breakers.
Is the BDA160251 suitable for direct current (DC) applications?
Yes, this thermal-magnetic circuit breaker is rated for use in DC systems. It provides an interrupting rating of 10kA at 125VDC.
What type of wire can be used with the lugs on this breaker?
The factory-installed mechanical lugs accept both aluminum and copper (Al/Cu) conductors ranging from 14 AWG to 2/0 AWG.
Are the trip settings on the BDA160251 adjustable?
No. This breaker features a fixed thermal-magnetic trip unit, meaning both the long-time (overload) and instantaneous (short circuit) trip functions are factory-set and cannot be adjusted in the field.
