Square D BDA160501 Molded Case Circuit Breaker
- 50A
- 1 Pole
- I-Line
Square D
BDA160501
Molded Case Circuit Breaker
Brand
Square D
SKU
BDA160501
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

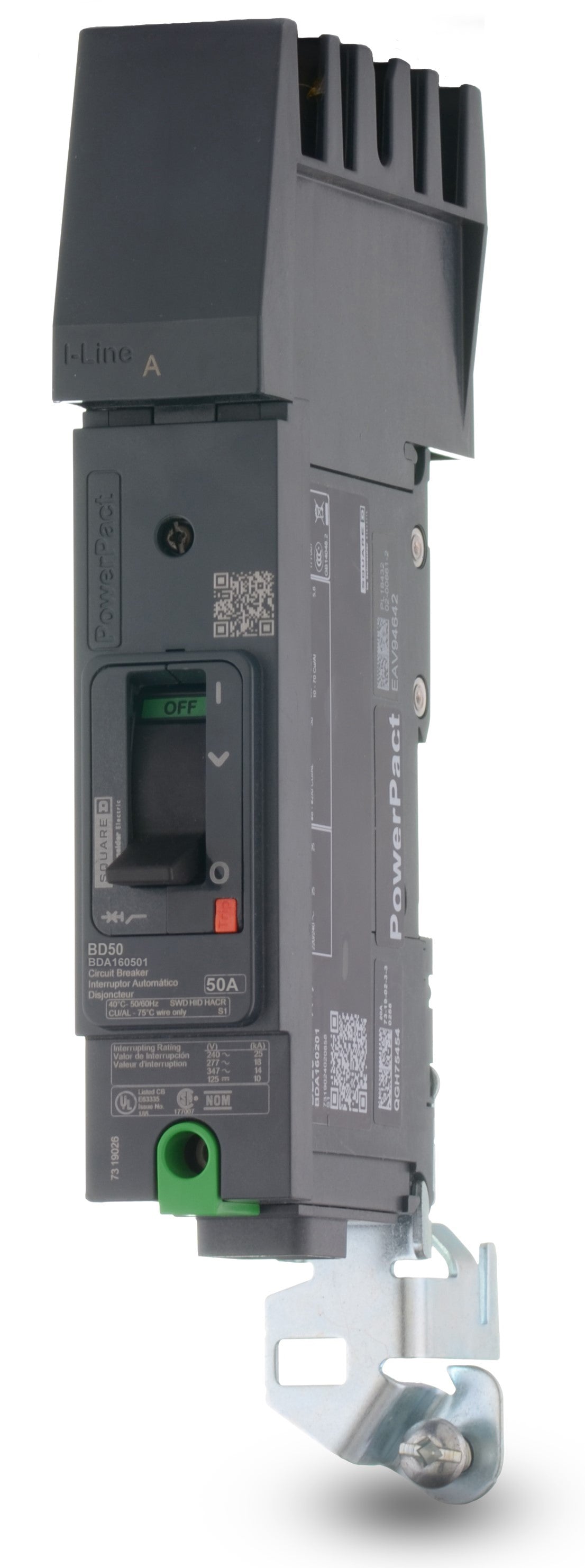

Square D BDA160501 - 50A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 1 Pole Molded Case Circuit Breaker
40A 1 Pole Molded Case Circuit Breaker
30A 1 Pole Molded Case Circuit Breaker
Description
Delivering robust thermal-magnetic protection, the Square D BDA160501 is a 50A, 1-pole molded case circuit breaker from the PowerPacT B-Frame series. It provides long-time and instantaneous (LI) trip functions for industrial and commercial applications. Designed for Square D I-Line panelboards and switchboards, this breaker features a Phase A connection. It is the designated replacement for the discontinued FA14050A. This HACR-rated MCCB offers a 25kAIC rating at 240V and includes Visi-Trip.Specifications
| Brand | Square D |
|---|---|
| Series | BDA |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 600Y/347VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 10kA @ 125VDC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
8 answersWhich panelboards are compatible with the BDA160501 circuit breaker?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It utilizes the I-Line plug-in mounting system and will not fit standard load centers like QO or Homeline.
What type of wire connections are supported on the load side of this breaker?
The load side features mechanical lugs that accept aluminum or copper wire ranging from 14 AWG to 2/0 AWG. The line side connects directly to the I-Line bus.
What does the "D" signify in the BDA160501 part number?
In the Square D PowerPacT B-frame series, the "D" indicates the interrupting rating level. For this specific model, it denotes a rating of 18kA at 480Y/277VAC, 14kA at 600Y/347VAC, and 25kA at 240VAC.
What does the "A" in the BDA160501 catalog number indicate?
In the Square D PowerPacT catalog numbering system, the "A" signifies an I-Line plug-in connection on the line side and mechanical lugs on the load side.
Does this 1-pole breaker require a specific phase connection on the I-Line bus?
Yes, 1-pole I-Line breakers are factory-configured for a specific phase. The "1" at the end of the BDA160501 catalog number indicates it is built for an A-phase connection. If you need a B-phase or C-phase connection, you must order a different catalog number.
Does the PowerPacT B-frame replace older Square D circuit breakers?
Yes, the PowerPacT B-frame series is the modern replacement for legacy Square D F-frame breakers, such as the FA and FH series, in many industrial applications.
What is the continuous current rating for the BDA160501?
Like most standard molded case circuit breakers, the BDA160501 is rated for standard 80 percent continuous current. It should not be loaded continuously beyond 40 amps unless specifically applied in an assembly listed for 100 percent continuous operation.
Does this breaker include a push-to-trip feature?
Yes, all PowerPacT B-frame circuit breakers feature an integral push-to-trip button on the front cover. This allows you to manually trip the breaker to verify the mechanical operation of the trip mechanism.
