Square D BDA260904 - 90A 2 Pole Molded Case Circuit Breaker

Brand Square D
SKU BDA260904
4.9
Rated 4.9 out of 5 stars
8 Reviews
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Square D BDA260904 - 90A 2 Pole Molded Case Circuit Breaker

Brand Square D
SKU BDA260904
4.9
Rated 4.9 out of 5 stars
8 Reviews
Select Item Condition
Earn 841 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Square D BDA260904 - 90A 2 Pole Molded Case Circuit Breaker

New

$841.00 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

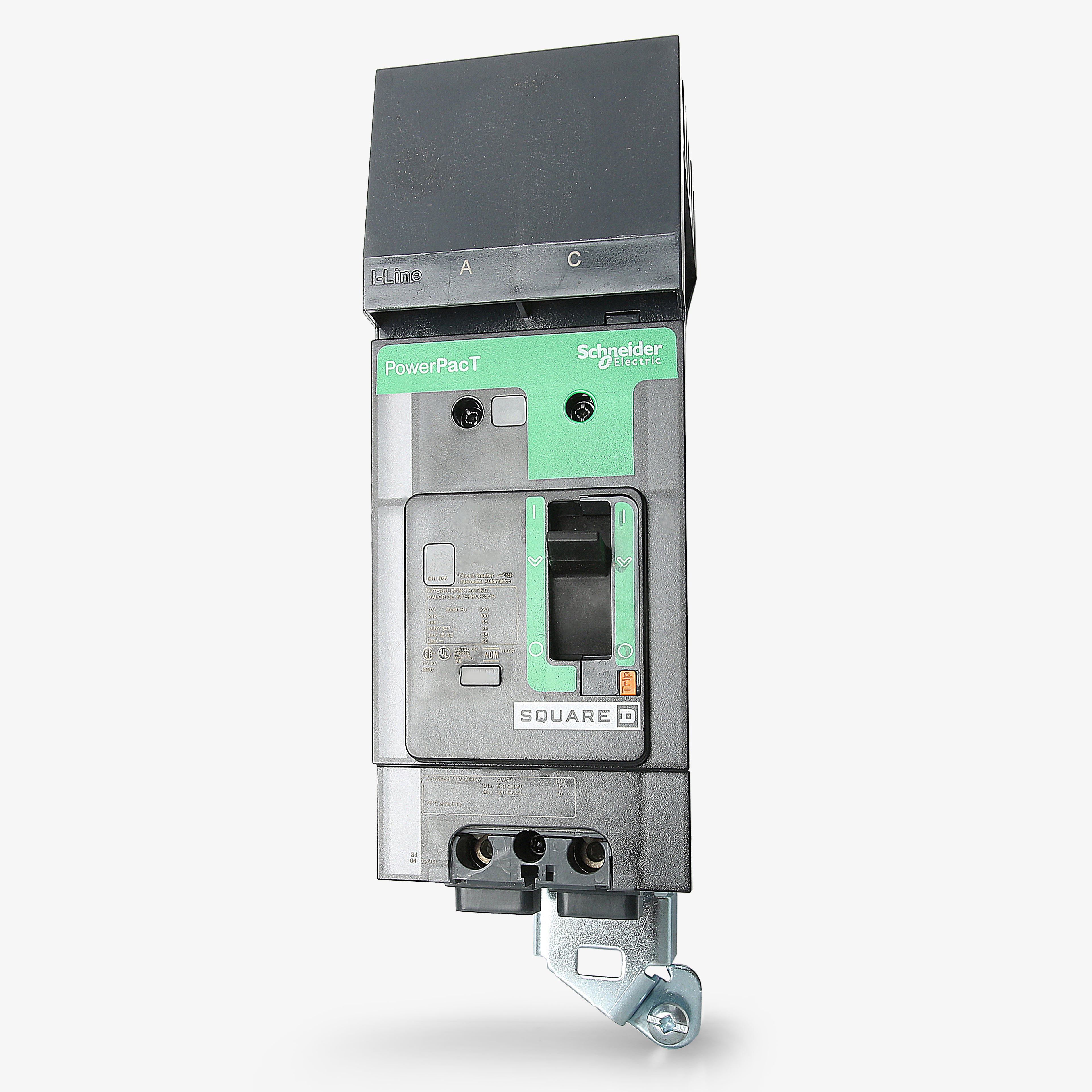

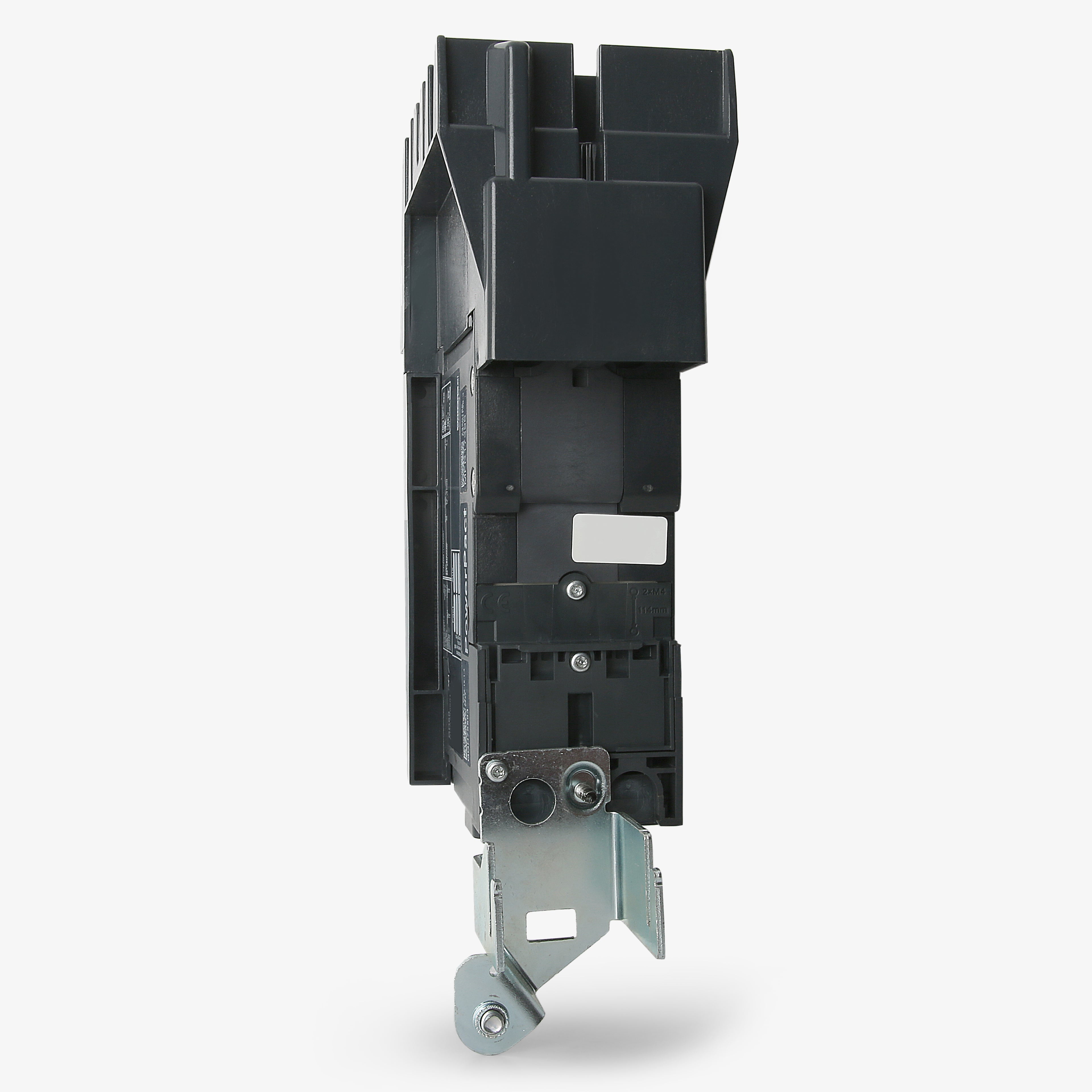

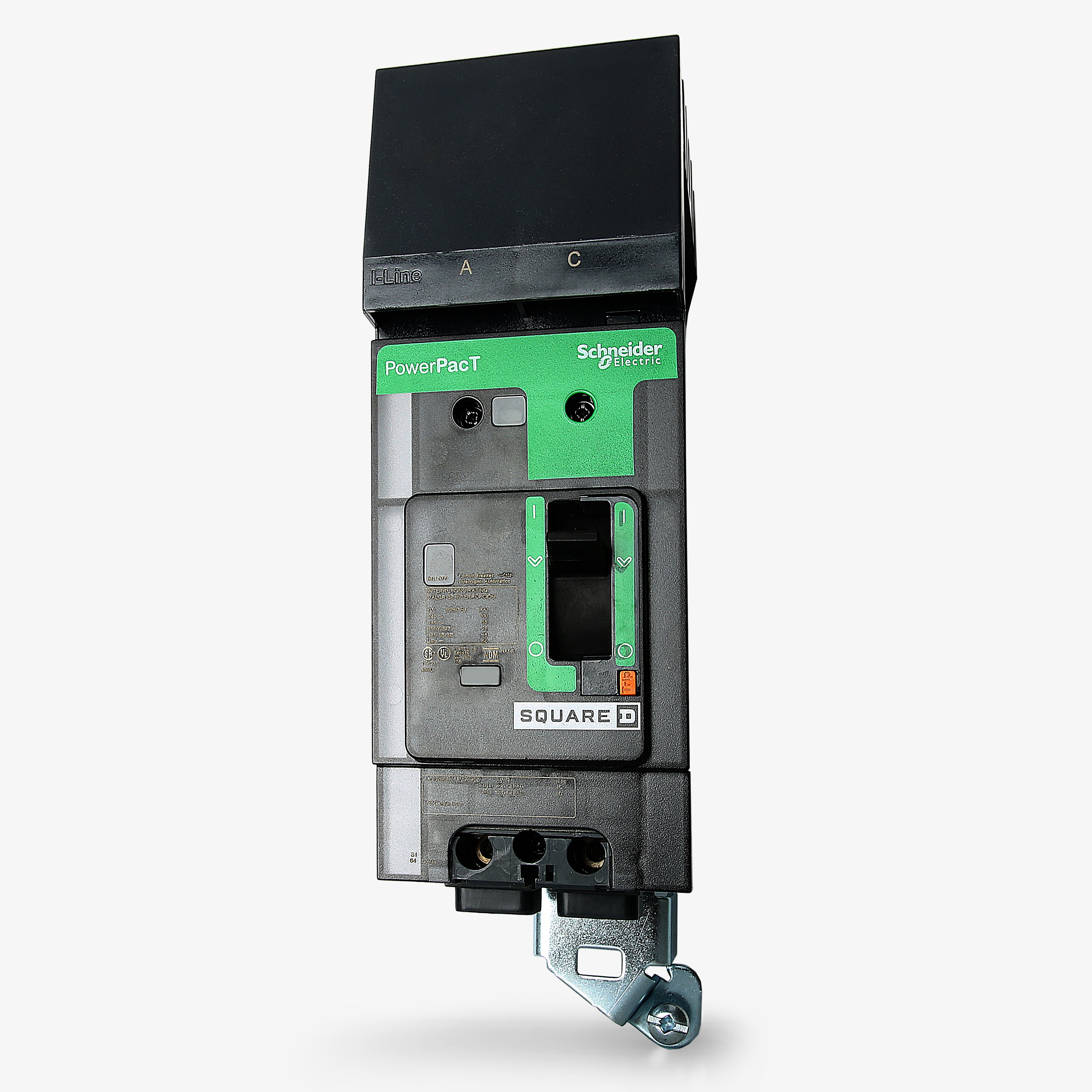

Designed for commercial power distribution, the Square D BDA260904 is a 2-pole, 90A molded case circuit breaker. It utilizes thermal-magnetic trip technology to provide long-time and instantaneous (LI) protection. This unit features an I-Line mounting configuration for Square D switchboards and panelboards. It is the designated replacement for the legacy FA26090BC breaker. Equipped with a BC phase connection, it offers an 18kAIC rating at 480VAC and is suitable for reverse feed setups.

Specifications

Brand Square D
Series BDA
Part Number BDA260904
Amperage 90A
Voltage 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC
Poles 2
Phase 1
AIC Rating 25kA @ 208Y/120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 10kA @ 250VDC

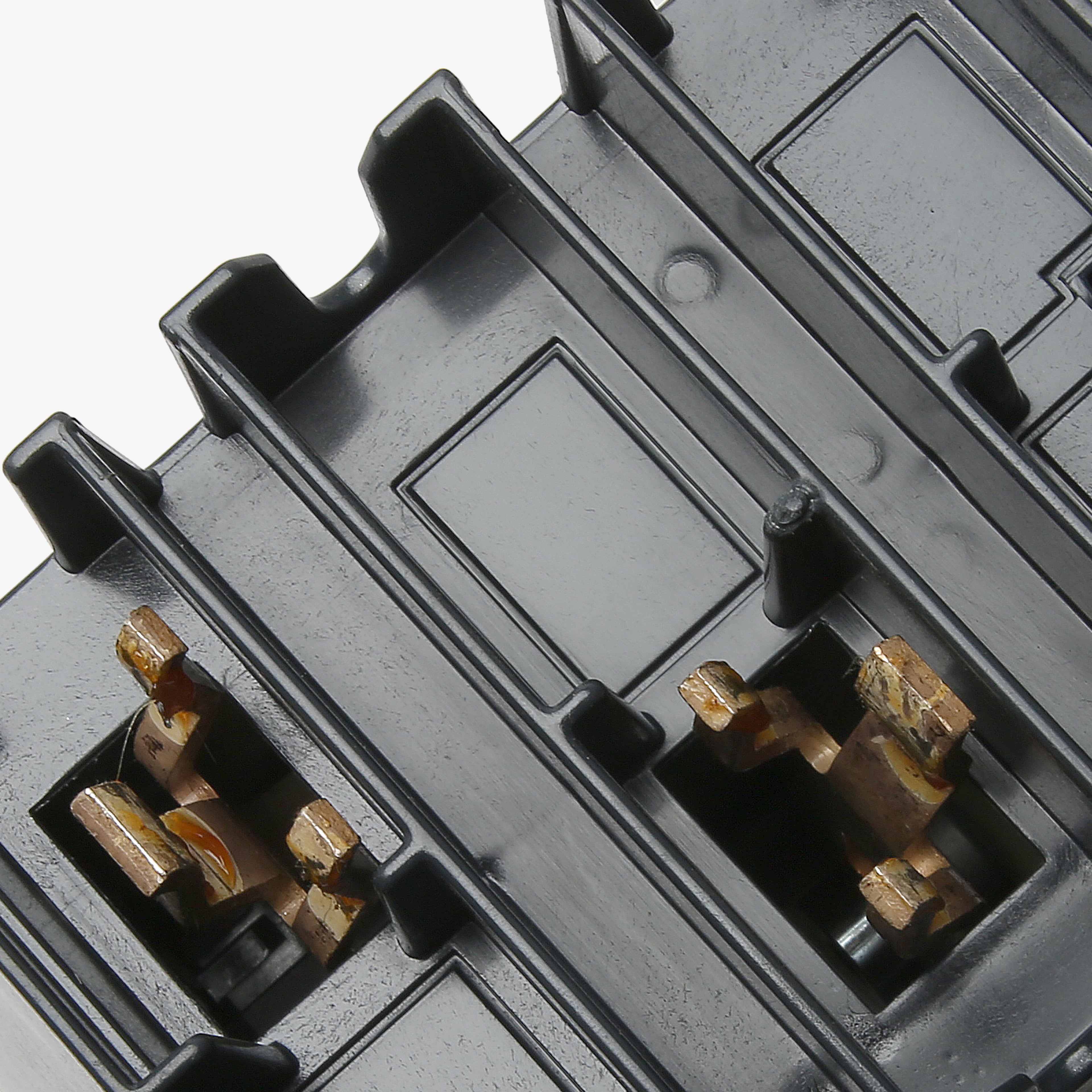

Mounting Style I-Line

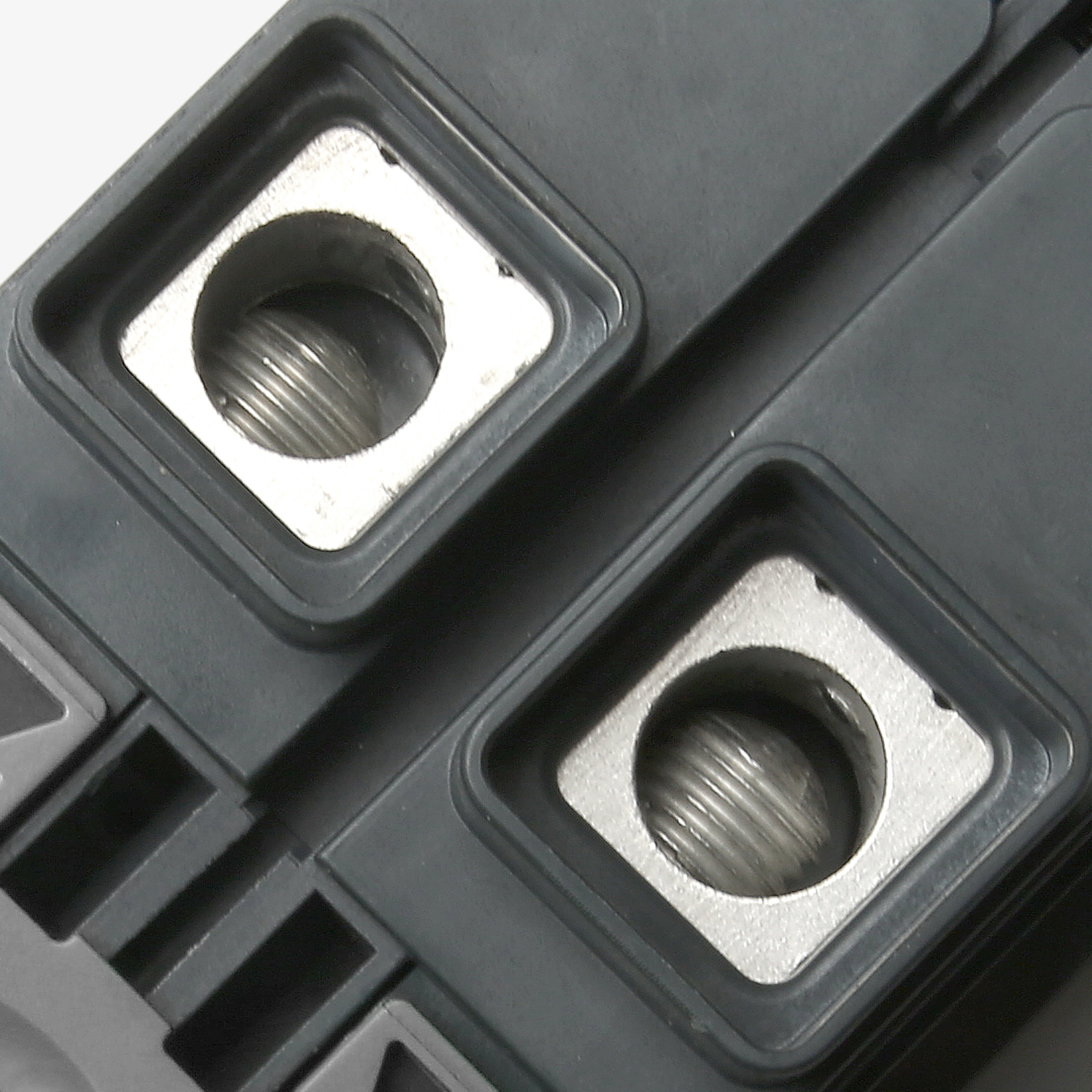

Terminal Type Lugs
For Use With Square D I-Line Panelboards, Switchboards
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 14 AWG - 2/0 AWG (Al/Cu)
Max Wire 2/0 AWG
Min Wire 14 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle
Accessories Load Side Lugs Included
Standards CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, UL 489
Approval CCC, CE, CSA, EAC, IEC, NOM, RoHS, UL
Temp Rating -25C to 70C
Construction Features HACR Rated, Reverse Feed, Non-Interchangeable Trip, Phase Connection BC
