Square D BDL26050 Molded Case Circuit Breaker
- 50A
- 2 Pole
- Unit Mount
Square D
BDL26050
Molded Case Circuit Breaker
Brand
Square D
SKU
BDL26050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

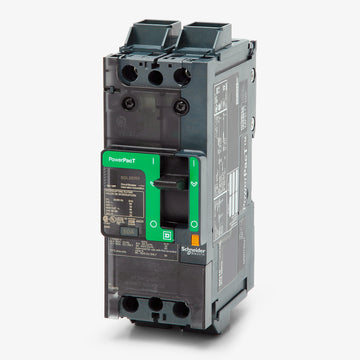

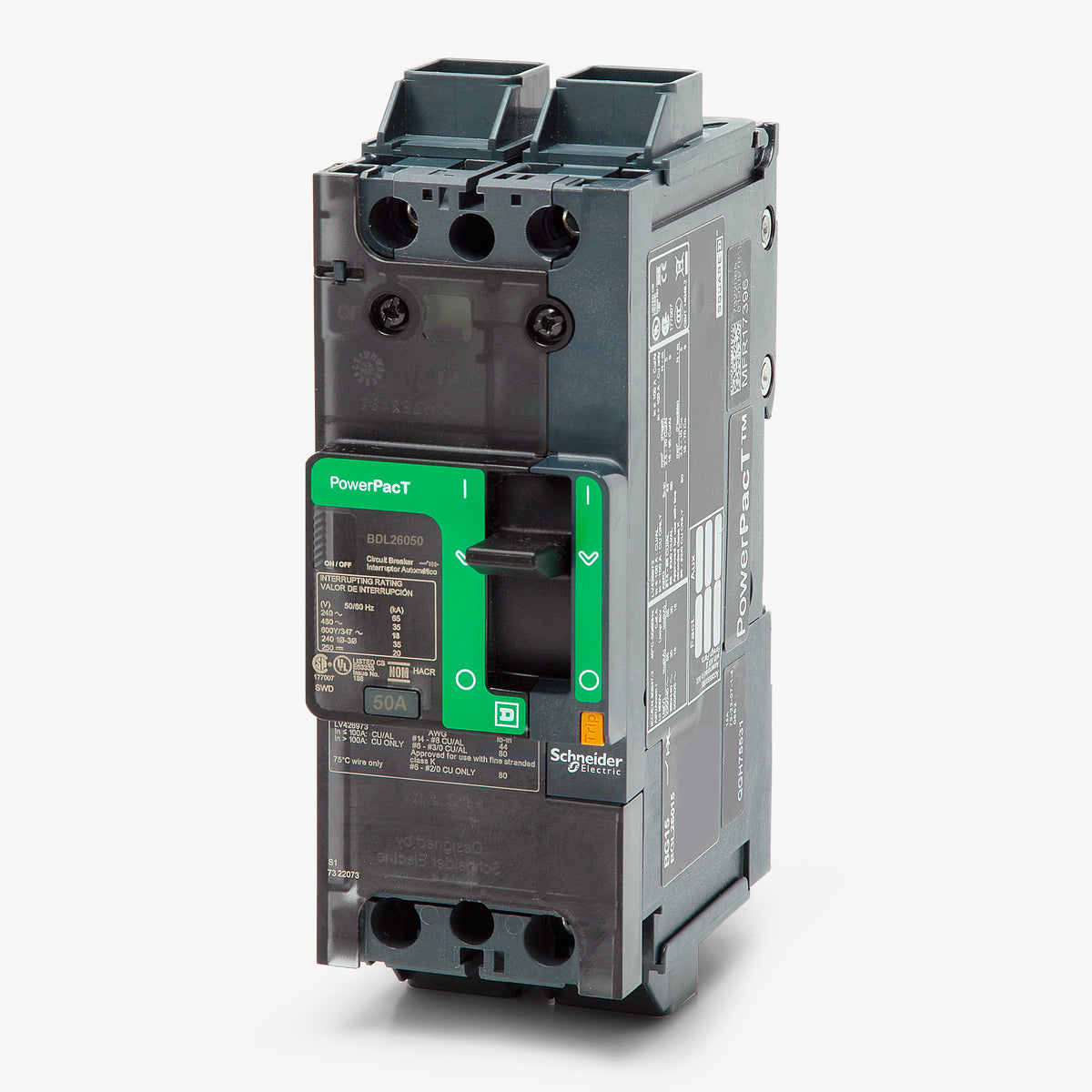

Square D BDL26050 - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
35A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
Description

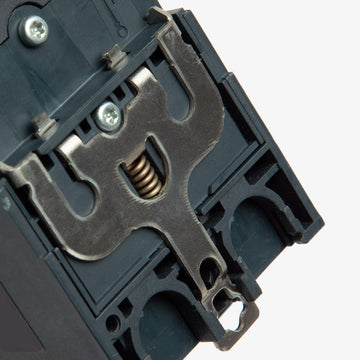

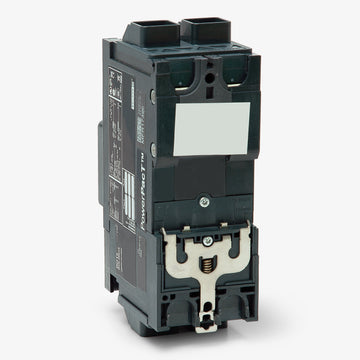

A compact solution for power distribution, the Square D BDL26050 is a 50A, 2-pole molded case circuit breaker. It delivers dependable trip functions for industrial control panels. Designed with unit-mount construction, it easily accommodates standard back pans or DIN rails. It serves as an exact replacement for obsolete FAL26050 breakers. Rated for 18 kAIC at 480VAC, it features a push-to-trip mechanism alongside EverLink lugs for superior wire retention.Specifications
| Brand | Square D |
|---|---|
| Series | BDL |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | BDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | EverLink Lugs |
| Standards | CSA C22.2 No 5, EN/IEC 60947-2, GB 14048.2, NEMA AB 1, NMX J-266, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
Product FAQs
4 answersIs the BDL26050 compatible with Square D I-Line panelboards?
No, the BDL26050 is a unit-mount breaker designed for surface mounting on a backpan with feed-thru lugs. For plug-on I-Line panelboards, you need an I-Line B-frame breaker, which typically starts with the prefix BDA instead of BDL.
Does this B-frame breaker support direct current applications?
Yes, this 2-pole breaker is rated for use in DC circuits up to 250VDC. It provides a 10kA interrupting capacity at 250VDC, making it suitable for DC control panels and specialized equipment.
Can the trip elements on this breaker be adjusted for specific loads?
No, the thermal magnetic trip unit on this 50A breaker features fixed long-time (overload) and fixed instantaneous (short-circuit) settings. They cannot be adjusted in the field.

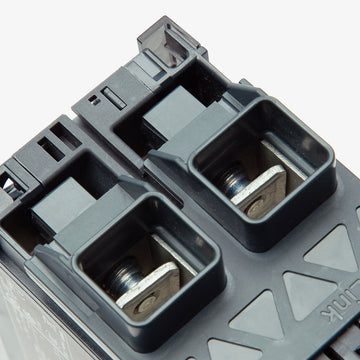

What wiring is supported by the factory lugs on this breaker?
The line and load side lugs accept 14 AWG to 3/0 AWG wire. They are certified for use with both aluminum and copper conductors. Ensure proper torque values are applied as indicated on the device label during installation.
