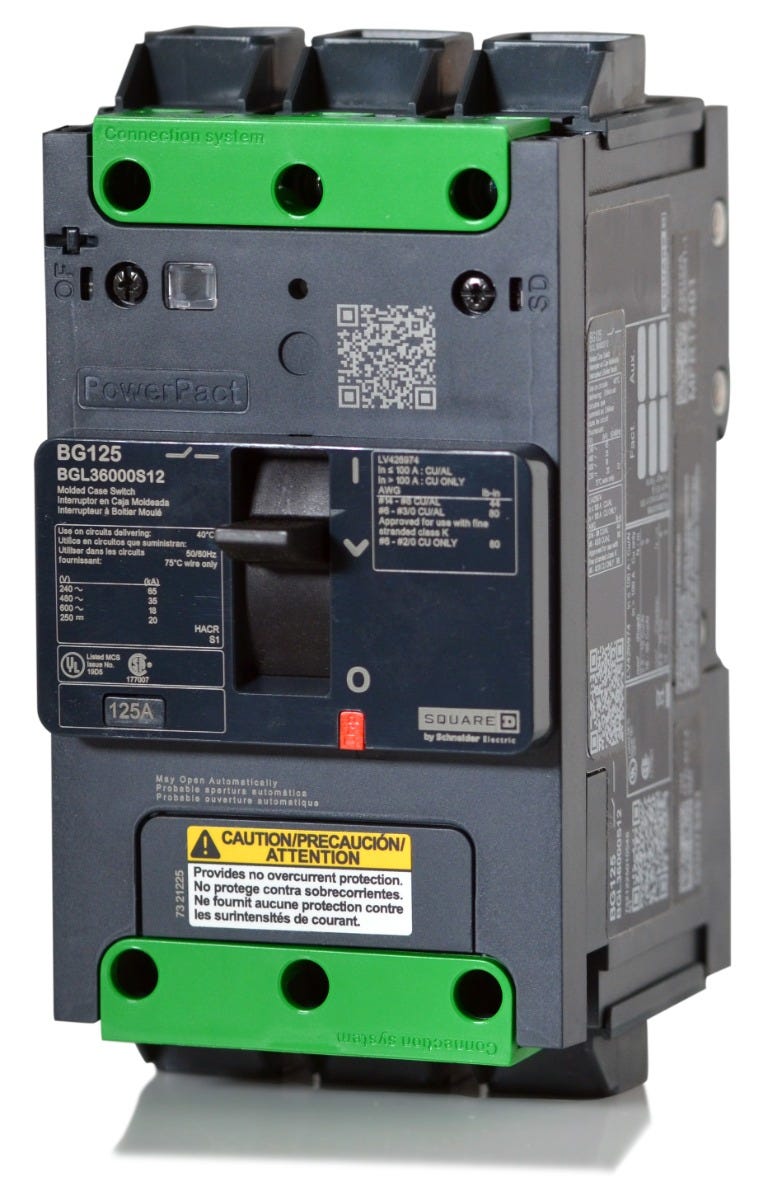

Square D BGL36000S12 - 125A 3 Pole Automatic Molded Case Switch
New
Quantity
Description
Built for heavy-duty commercial and industrial environments, this 125A PowerPacT B-frame switch provides dependable circuit isolation. The unit mounts into industrial control panels and switchboards, acting as an upgrade for discontinued FAL36000M models. Equipped with a magnetic-only trip for instantaneous self-protection, it boasts a 65kA short-circuit current rating at 240V and features EverLink lugs to ensure secure, creep-compensating wire connections over time.Specifications
| Brand | Square D |
|---|---|
| Part Number | BGL36000S12 |
| Series | BGL |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Padlock Attachment, Terminal Shields |
|---|---|
| Accessories | EverLink Lugs |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, GB 14048.2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
