Square D BJA36060 3 Pole Circuit Breaker

Brand Square D
SKU BJA36060
(3 Reviews)
Square D BJA36060 3 Pole Circuit Breaker

Square D BJA36060 3 Pole Circuit Breaker

Brand Square D
SKU BJA36060
(3 Reviews)
Select Item Condition

Quantity
Buy Now. Pay Later with Shop Pay.
Earn 890 SuperPoints
Add to Favorites Added to Favorites
Hassle-free returns
Fast and reliable shipping
Free shipping over $99
Square D BJA36060 3 Pole Circuit Breaker

Square D BJA36060 3 Pole Circuit Breaker

New

$890.00 In stock

Quantity

Description

Square D BJA36060 3 Pole Circuit Breaker

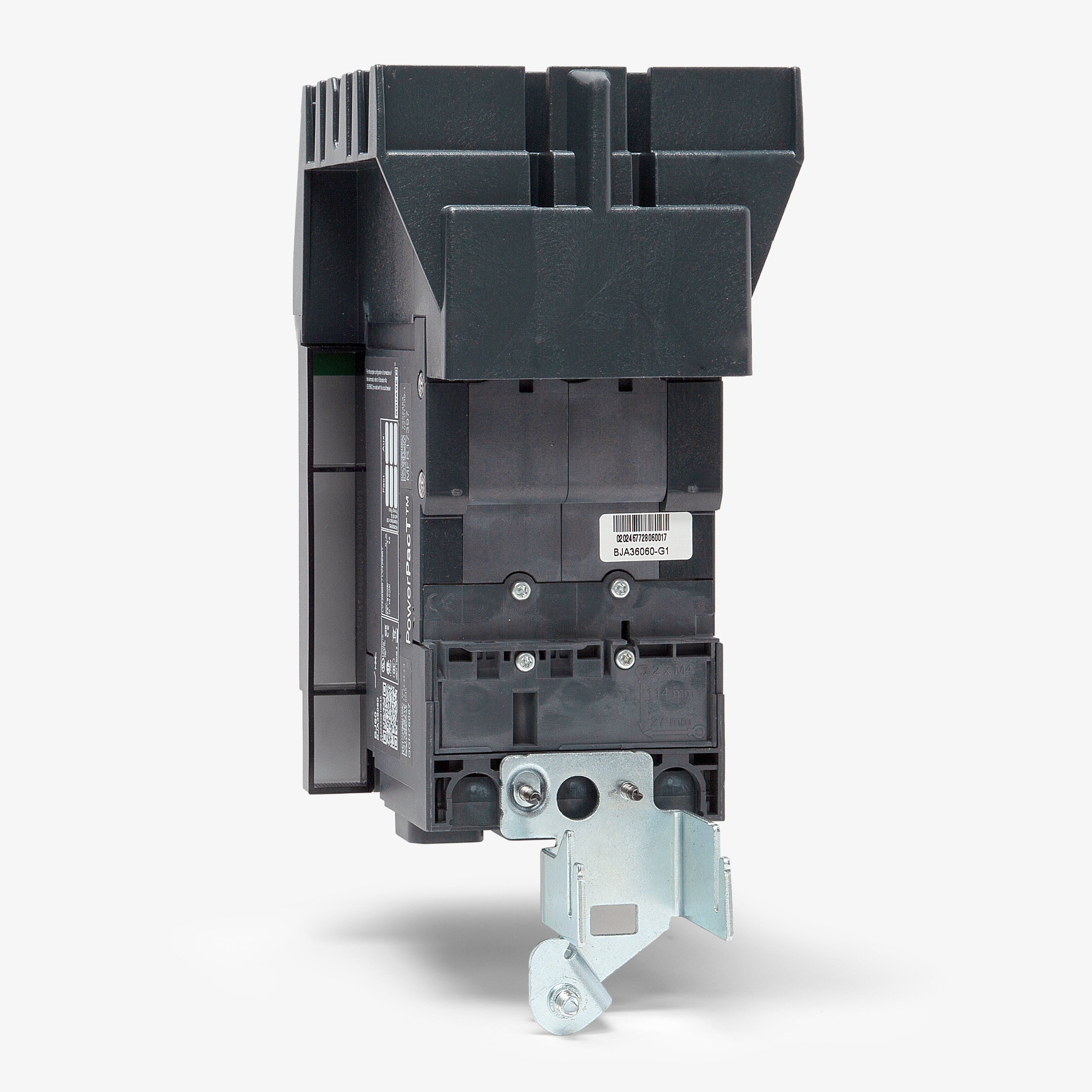

The Square D BJA36060 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 60 Amps and a voltage rating of 600Y/347VAC. It has an interrupting rating of 65kAIC at 480VAC, 25kAIC at 600VAC, 100kAIC at 240VAC. The BJA36060 has an I-Line style plug-in connection type and includes long time and instantaneous trip functions.

Specifications

Brand Square D
Series PowerPacT B
Amperage 60
Voltage 600Y/347VAC
Poles 3
Phase 3
Mounting Type I-Line
Approval UL, IEC, CCC, EAC, CSA, NOM
Interrupting Rating 65kAIC at 480VAC, 25kAIC at 600VAC, 100kAIC at 240VAC
Frame Type BJA
Connection Type I-Line Style Plug-In
Protection Thermal Magnetic
Functions LI - Long-Time and Instantaneous
Terminal Connection Load Side Lug
Length (in) 3.5
Width (in) 3.19
Height (in) 5.39
Wire Gauge AWG 14 to AWG 2/0, Aluminum/Copper
Standards RoHS, REACh, HACR
Temperature Rating -25 to 70 °C
Mpn BJA36060
Upc 3606481185877
Gtin 3606481185877
