Square D BJL36125 Molded Case Circuit Breaker
- 125A
- 3 Pole
- Unit Mount
Square D
BJL36125
Molded Case Circuit Breaker
Brand
Square D
SKU
BJL36125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

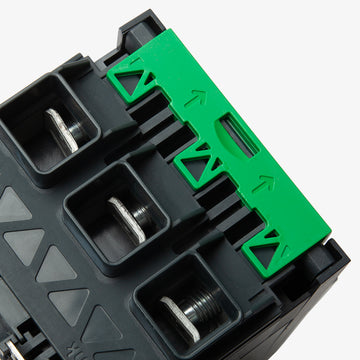

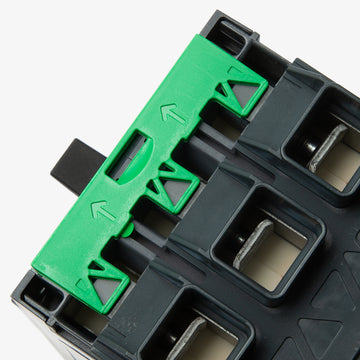

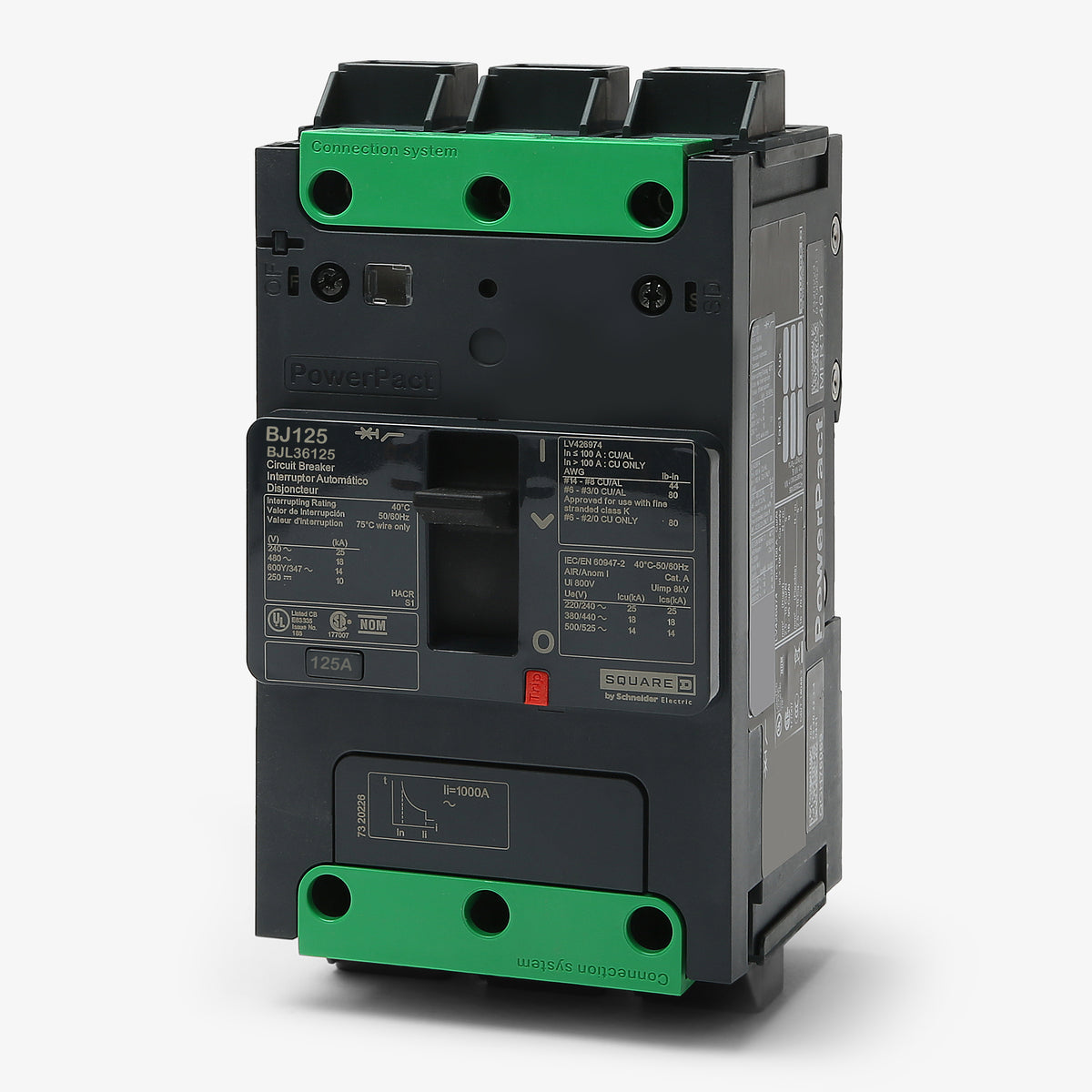

Square D BJL36125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
70A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding commercial and industrial environments, this 125A unit mount MCCB provides fixed thermal and magnetic (LI) trip functions. The breaker mounts into industrial control panels and switchboards, offering a compact footprint with integrated DIN rail compatibility. Rated for 65kAIC at 480VAC, it utilizes advanced EverLink lugs to prevent thermal cycling wire loosening, ensuring long-term reliability in high-capacity electrical distribution systems.Specifications
| Brand | Square D |
|---|---|
| Part Number | BJL36125 |
| Series | BJL |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 208Y/120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 50kA @ 250VDC |
| Frame Type | BJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Enclosures, Switchboards |
| Wire Gauge | 14 AWG-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | EverLink Lugs (Line & Load) |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB 1, NMX J-266, UL 489 |
| Approval | CCC, CE, CSA, EAC, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, 80% Rated, Mercury Free, PVC Free, RoHS Compliant, Double-Break Rotary Contact Structure |
Product FAQs
6 answersWhat is the lug torque specification for the BJL36125 circuit breaker?
The EverLink lugs require 44.3 lb-in (5 N.m) for 14 to 4 AWG wire and 79.7 lb-in (9 N.m) for 3 to 3/0 AWG wire.

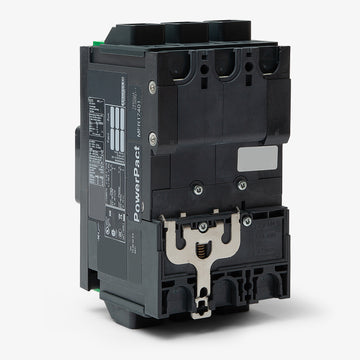

Can the BJL36125 be mounted on a DIN rail?
Yes, this unit-mount circuit breaker features integrated clips for standard 35 x 15 mm symmetrical DIN rail mounting, in addition to traditional back-pan screw mounting.
Does the PowerPacT BJL36125 replace older Square D circuit breakers?
Yes, the PowerPacT B-frame series is the direct replacement for legacy Square D F-frame breakers, including the FAL and FHL series commonly used in control panels.
Is the BJL36125 suitable for reverse feeding?
Yes, standard unit-mount PowerPacT B-frame circuit breakers have sealed thermal magnetic trip units and can be safely reverse fed.
What do the letters in the BJL prefix indicate?
The B designates the PowerPacT B-frame, the J indicates the interrupting rating of 65kA at 480V, and the L specifies that the breaker comes with lugs on both the line and load ends.
What type of lugs are included with the BJL36125?
This breaker includes Square D EverLink lugs on both the line and load sides. These creep-compensating lugs are designed to prevent wire loosening caused by thermal cycling.
