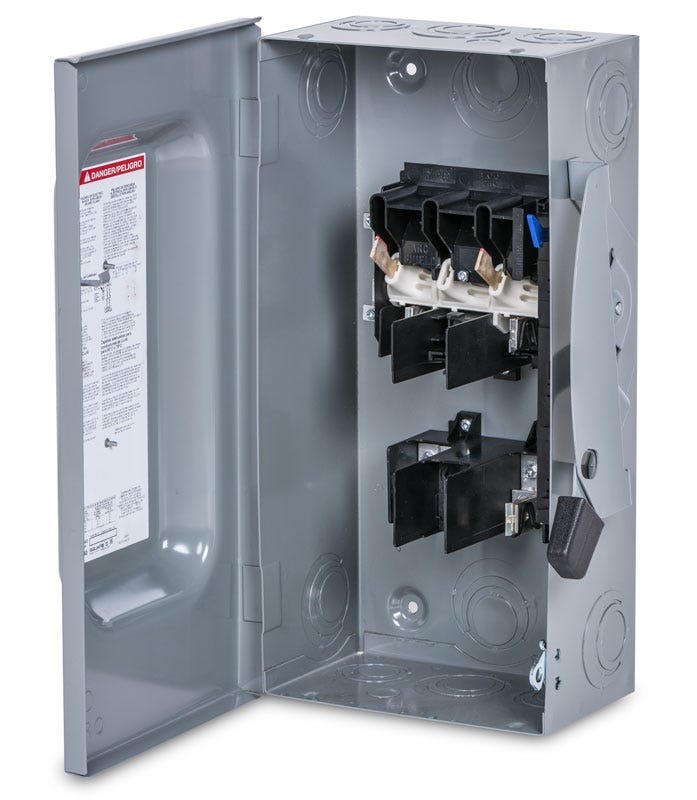

• Authentic Square D D223N Safety Switch • Terminal Type: Lugs • Type of Duty: General Duty • UPC : 785901460688 • Maximum Voltage Rating: 240VAC • Wire Size: #12 to #1/0 AWG(Al) - #14 to #1/0 AWG(Cu) • Depth: 6.50 Inches • Height: 17.50 Inches • Width: 8.50 Inches • Action: Single Throw • Ampere Rating: 100A • Approvals: UL Listed File: E2875 • Enclosure Rating: NEMA 1 • Enclosure Type: General Purpose (Indoor) • Factory Installed Neutral: Yes • Fuse Type: Cartridge (Class H K or R) • Disconnect Type: Fusible • Short Circuit Current Rating: 100kA (max. depending on fuse type) • Mounting Type: Surface • Number of Poles: 2-Pole • General Duty Safety Switches are a durable and economical solution for applications such as lighting air conditioning and appliances.
Specifications
Brand
Square D
Series
D
Contactor Type
Lighting
Nema Rating
Indoor
Duty Rating
General Duty
Fusibility
Fusible
Mpn
D223N
Upc
785901460688
Gtin
785901460688
