Square D EDB34070SA Miniature Circuit Breaker
- 70A
- 3 Pole
- Bolt-On
Square D
EDB34070SA
Miniature Circuit Breaker
Brand
Square D
SKU
EDB34070SA
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

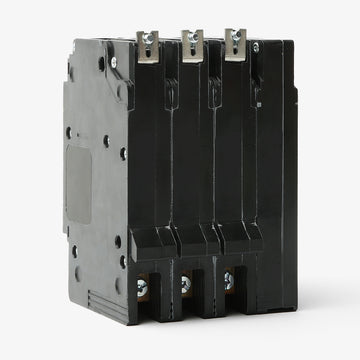

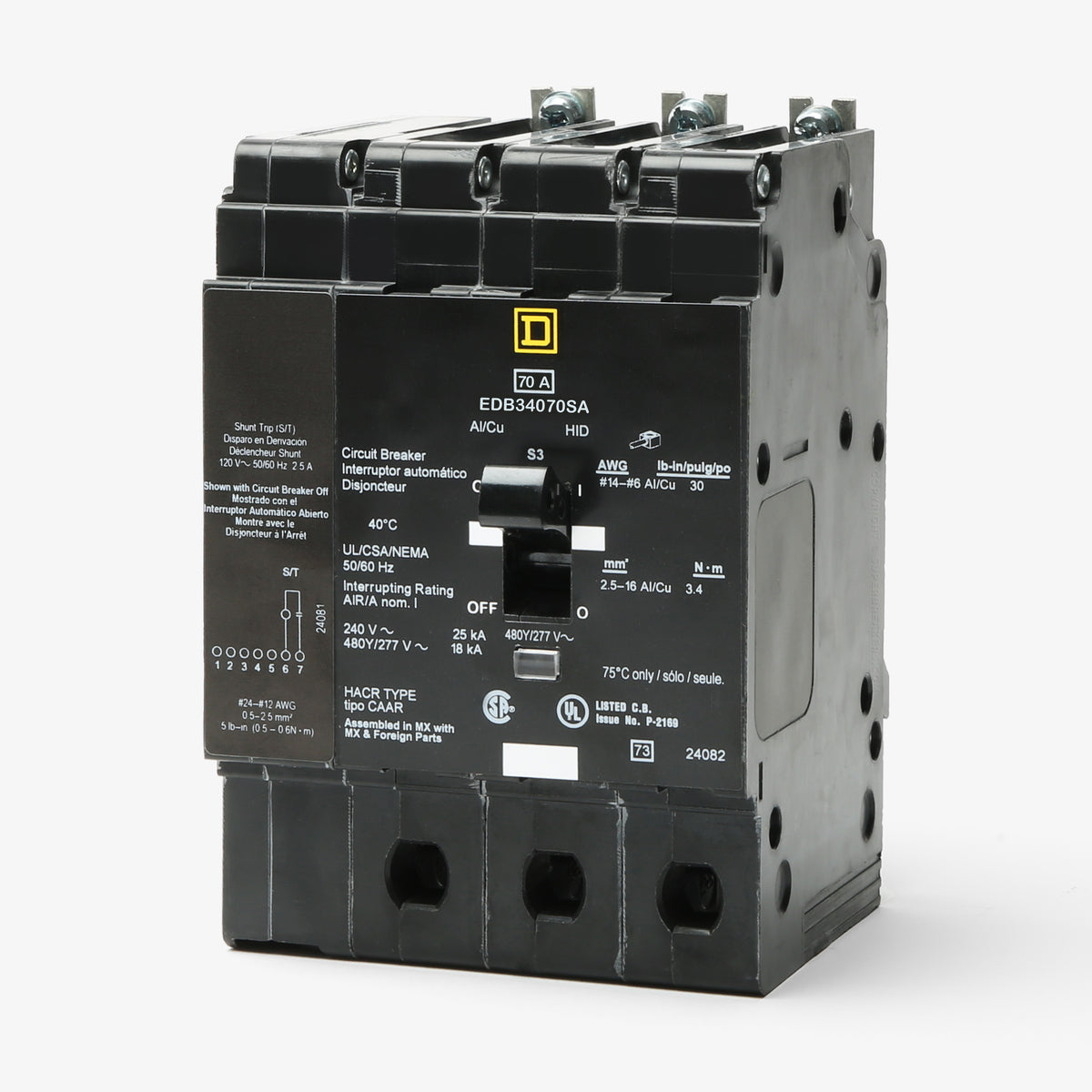

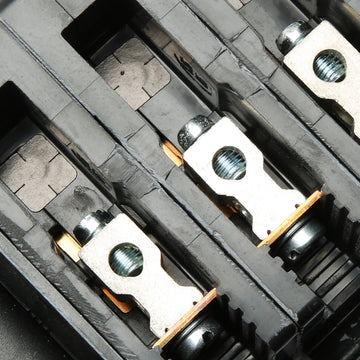

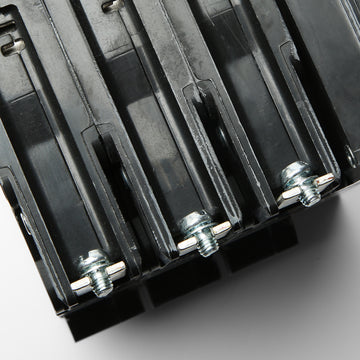

Square D EDB34070SA - 70A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
45A 3 Pole Miniature Circuit Breaker
100A 3 Pole Miniature Circuit Breaker
30A 3 Pole Miniature Circuit Breaker
Description
Part of the E-Frame series, this 70A, 3-pole miniature circuit breaker is engineered for commercial and industrial applications. It features a factory-installed 120VAC shunt trip, allowing for remote opening of the circuit for enhanced safety. The bolt-on design ensures a secure connection into Square D NF panelboards. It accepts 14-2/0 AWG copper or 12-2/0 AWG aluminum wire via standard lugs. Rated for 18 kAIC at 480Y/277VAC, it includes Visi-Trip indication and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | EDB34070SA |
| Series | EDB |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 25kA @ 120/240VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NOM-117, UL 489 |
| Approval | CSA, cULus, HACR, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhich panelboards accept the Square D EDB34070SA circuit breaker?
This E-frame breaker is designed specifically for bolt-on installation in Square D NF series panelboards.
What does the SA suffix mean on the EDB34070SA catalog number?
The SA suffix indicates the breaker is equipped with a factory-installed 120VAC shunt trip. This accessory allows the breaker to be tripped remotely by an external control signal.
How many pole spaces does the EDB34070SA occupy in a panelboard?
Although it is a 3-pole breaker, the factory-installed shunt trip requires an additional pole space. It will occupy a total of four pole spaces in your NF panelboard.
Can the shunt trip on the EDB34070SA be removed or added in the field?
No. Square D E-frame electrical accessories, including the shunt trip, are factory-installed only and cannot be modified or field-installed.
How does the interrupting rating of the EDB34070SA change based on system voltage?
The breaker provides 18kAIC at its maximum rated voltage of 480Y/277VAC. When applied to 120VAC or 240VAC systems, the interrupting rating increases to 25kAIC.
What are the acceptable wire sizes for the EDB34070SA terminals?
The standard lugs accept 14 AWG to 2/0 AWG copper conductors, or 12 AWG to 2/0 AWG aluminum conductors.
