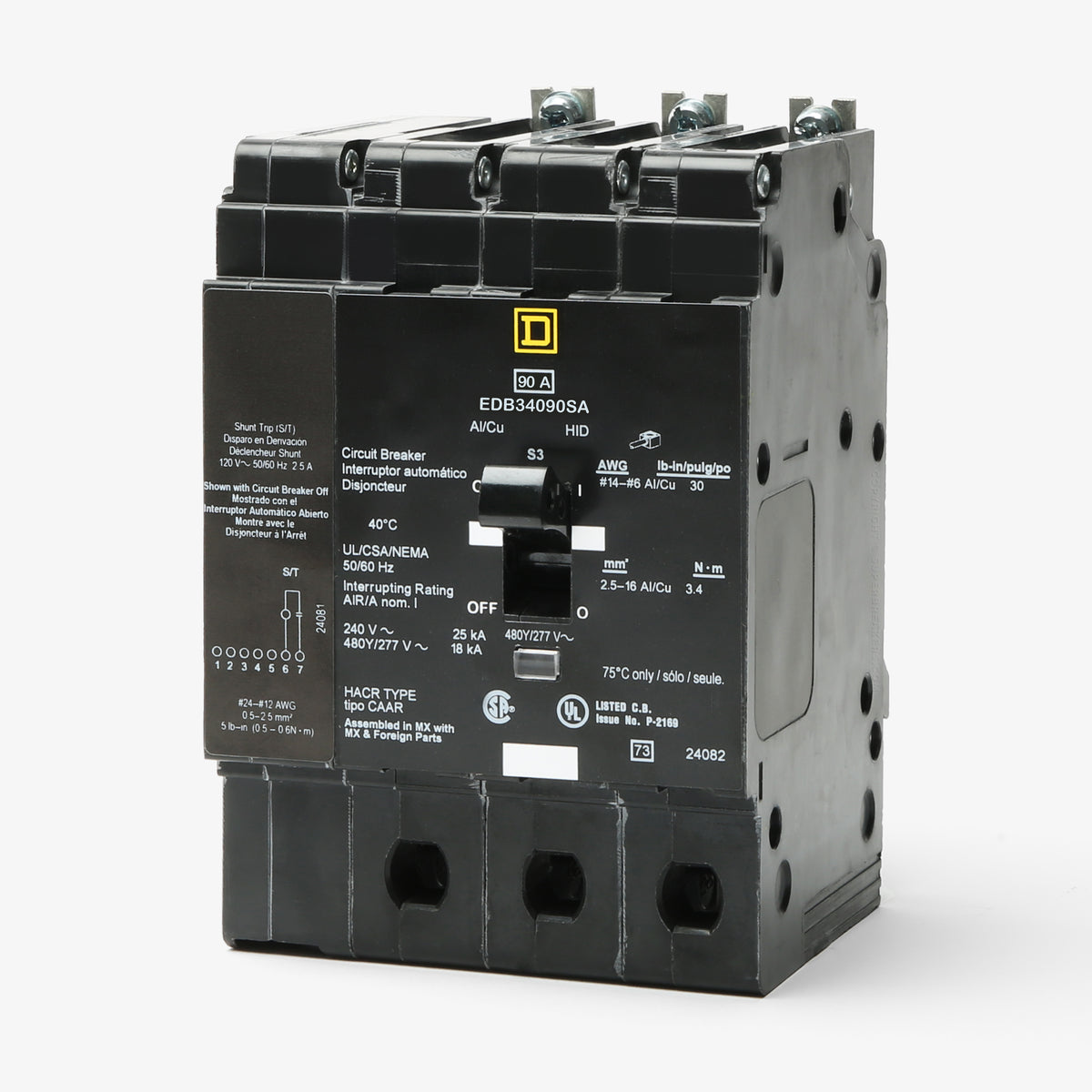

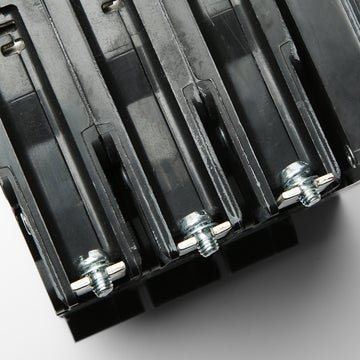

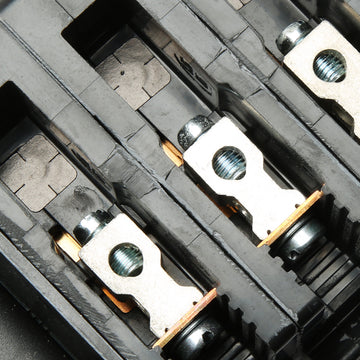

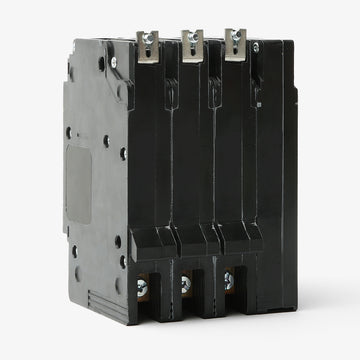

Square D EDB34090SA Molded Case Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
Quantity
Square D EDB34090SA - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D EDB34090SA - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | EDB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 25kA @ 120/240VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included, Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, cULus, HACR, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D EDB34090SA - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | EDB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 25kA @ 120/240VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included, Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, cULus, HACR, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Description
Engineered for commercial applications, the Square D EDB34090SA is a 3-pole, 90A molded case circuit breaker. It belongs to the E-Frame family, delivering dependable thermal-magnetic protection for distribution networks. This bolt-on MCCB mounts exclusively into Square D NF panelboards. It accepts 14-2/0 AWG copper or 12-2/0 AWG aluminum wire via included load lugs. Rated 18 kAIC at 480Y/277V, it features a factory-installed 120VAC shunt trip for remote interruption and a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Series | EDB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 25kA @ 120/240VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included, Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, cULus, HACR, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
7 answersWhat does the "SA" suffix mean on the EDB34090SA?
The "SA" suffix indicates the breaker is equipped with a factory-installed 120VAC shunt trip. This allows the circuit breaker to be tripped remotely by an external control signal.
How many panel spaces does the EDB34090SA require?
Because of the factory-installed shunt trip, this 3-pole breaker requires four pole spaces when installed in a Square D NF panelboard.
Can I add a shunt trip to a standard EDB34090 breaker in the field?
No. Shunt trips for Square D E-frame circuit breakers are factory-installed only and cannot be added in the field. You must purchase a breaker with the "SA" suffix if a 120VAC shunt trip is needed.
What control voltage is required for the shunt trip on this breaker?
The factory-installed shunt trip on the EDB34090SA operates on a control voltage of 120VAC (110 to 130VAC). Applying the correct voltage to the shunt trip terminals will remotely open the breaker.
How is the shunt trip on the EDB34090SA typically used?
The 120VAC shunt trip is commonly wired to fire alarm systems, emergency stop buttons, or automation controls to remotely disconnect power for safety or operational requirements.
What is the difference between Square D EDB, EGB, and EJB breakers?
While they share the same physical dimensions and mount in NF panelboards, they have different short-circuit interrupting ratings. EDB is the standard tier (18kA at 480Y/277VAC), whereas EGB and EJB provide higher interrupting capacities for systems with higher available fault currents.
Does the EDB34090SA feature a tripped circuit indicator?
Yes, it includes Square D's Visi-Trip indicator. When the breaker trips due to an overcurrent, short circuit, or shunt trip activation, the handle snaps to a midpoint position and a highly visible red indicator appears to help quickly identify the tripped breaker.
