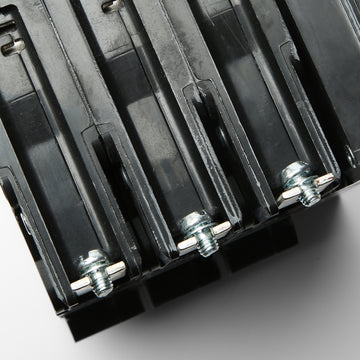

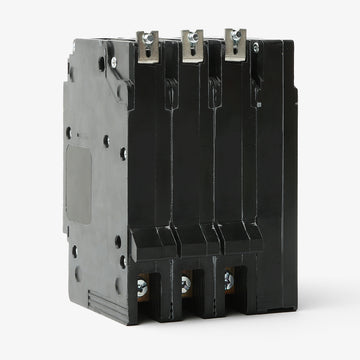

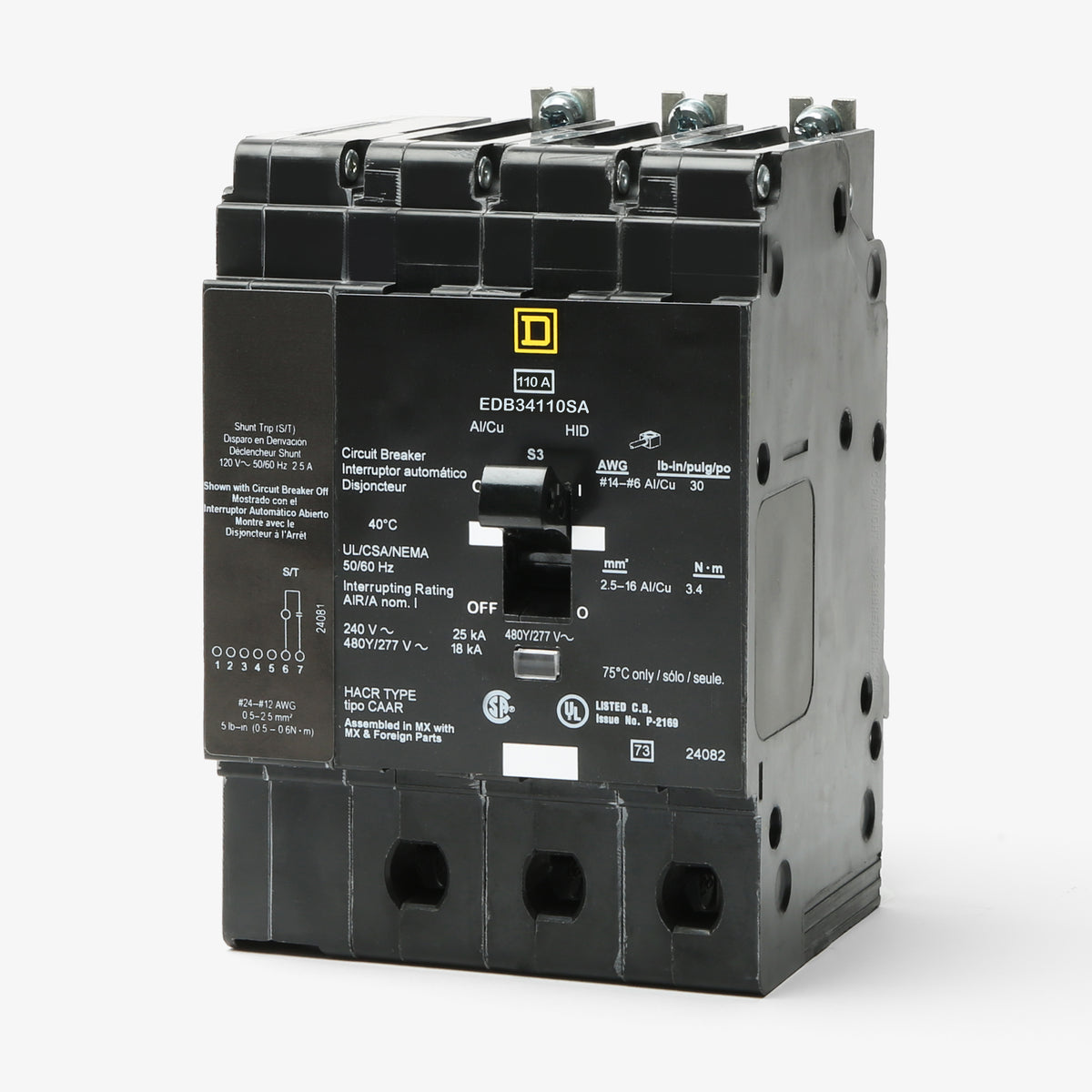

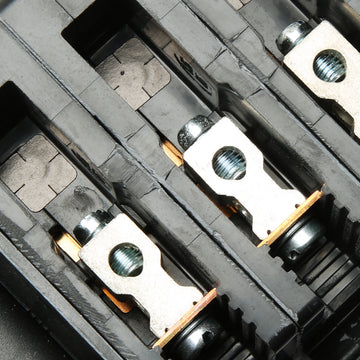

Square D EDB34110SA Molded Case Circuit Breaker
- 110A
- 3 Pole
- Bolt-On
Quantity
Square D EDB34110SA - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D EDB34110SA - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EDB34110SA |
| Series | EDB |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 25kA @ 120/240VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, cULus, HACR, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D EDB34110SA - 110A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | EDB |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 25kA @ 120/240VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, cULus, HACR, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Description
Designed to handle heavier commercial loads, the Square D EDB34110SA is a 110A, 3-pole molded case circuit breaker. It operates within the reliable E-Frame architecture, offering long-time and instantaneous trip functions. Installation is straightforward with its bolt-on mounting style, compatible with Square D NF panelboards. The breaker includes factory-installed lugs for 14-2/0 AWG copper wire. Equipped with a 120VAC shunt trip, it allows remote opening and provides 18 kAIC at 480Y/277V.Specifications
| Brand | Square D |
|---|---|
| Part Number | EDB34110SA |
| Series | EDB |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 25kA @ 120/240VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, cULus, HACR, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhich panelboards are compatible with the EDB34110SA circuit breaker?
This bolt-on E-frame breaker is designed specifically for installation in Square D NF series panelboards.
What does the SA suffix indicate on the EDB34110SA catalog number?
The SA suffix signifies that this breaker includes a factory-installed shunt trip. This mechanism operates on a 120V AC control voltage, allowing the breaker to be tripped remotely for safety or automation purposes.
How many panel spaces does the EDB34110SA require for installation?
This breaker requires a total of four pole spaces in the panelboard. While it is a 3-pole breaker, the factory-installed shunt trip occupies one additional space.
Can the shunt trip on the EDB34110SA be installed or replaced in the field?
No. The shunt trip on Square D E-frame circuit breakers is a factory-installed component and is not field-installable or replaceable.
Is the EDB34110SA suitable for use on a 480V Delta electrical system?
No. This breaker carries a 480Y/277V slash rating, meaning it is only approved for solidly grounded Wye systems where the voltage to ground does not exceed 277V. It must not be installed on ungrounded or corner-grounded 480V Delta systems.
Does the EDB34110SA require a specific mounting hardware kit?
No separate mounting kit is required. This is a bolt-on breaker that fastens directly to the busbar of a Square D NF panelboard using the integrated mounting screws.
