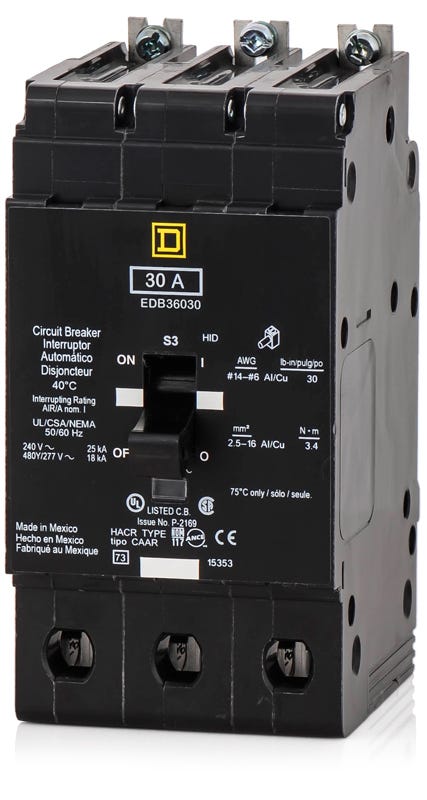

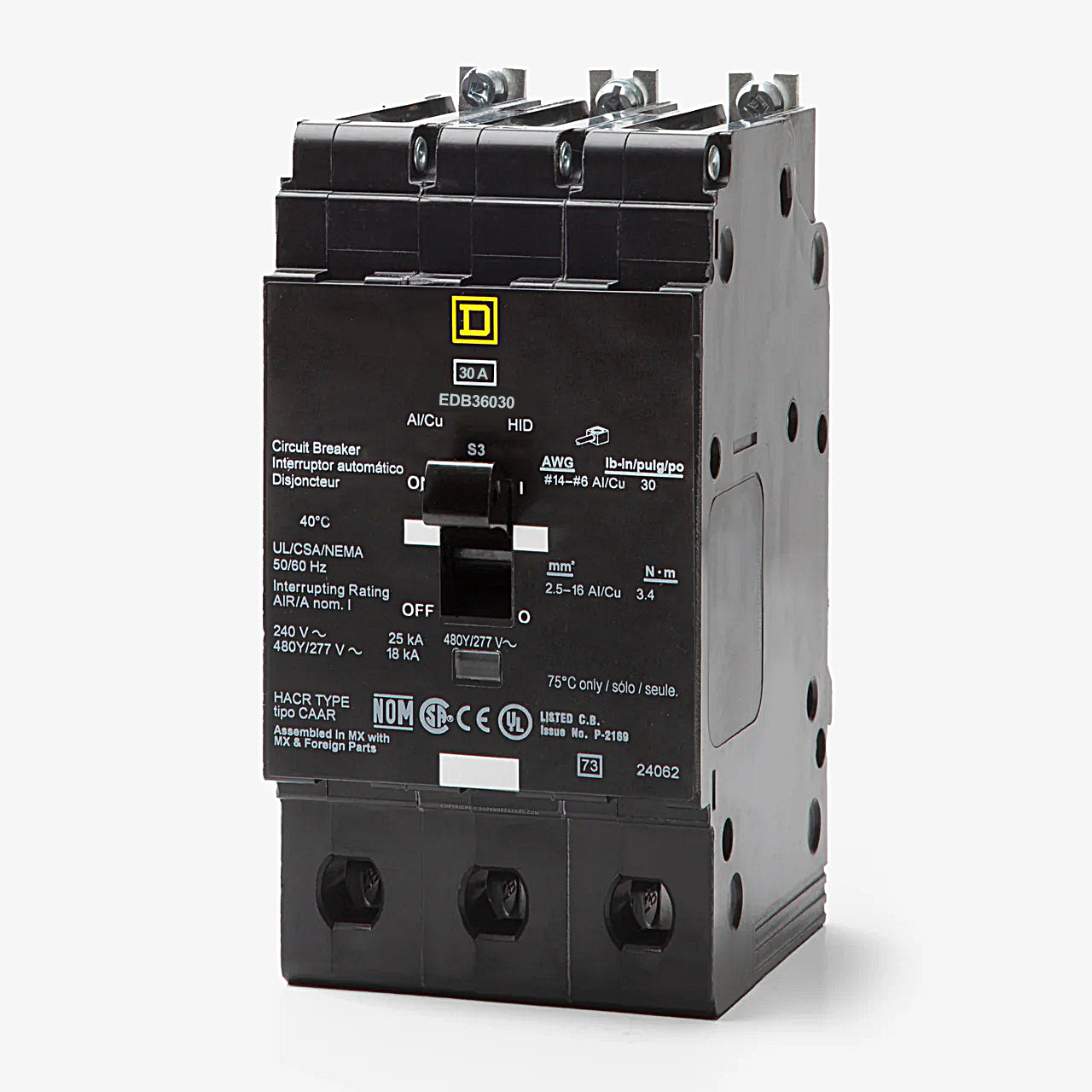

Square D EDB36030 Miniature Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Square D
EDB36030
Miniature Circuit Breaker
Brand
Square D
SKU
EDB36030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EDB36030 - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D EDB36030 - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EDB36030 |
| Series | EDB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC, 600Y/347VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 25kA @ 120/240VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, NOM-117, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Sold out
Quantity
Square D EDB36030 - 30A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | EDB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC, 600Y/347VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 25kA @ 120/240VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, NOM-117, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Similar Items
35A 3 Pole Miniature Circuit Breaker
35A 3 Pole Miniature Circuit Breaker
25A 3 Pole Miniature Circuit Breaker
Description
Designed for 3-phase commercial applications, the Square D EDB36030 is a 30A miniature circuit breaker. It offers fixed long-time and instantaneous trip functions to maintain system safety. The breaker features a bolt-on mounting configuration tailored exclusively for Square D NF panelboards. Capable of interrupting 18 kAIC at 480Y/277V, this E-Frame unit meets UL 489 standards. It also includes the signature Visi-Trip visual indicator, making it simple to spot a tripped circuit in a panel.Specifications
| Brand | Square D |
|---|---|
| Part Number | EDB36030 |
| Series | EDB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC, 600Y/347VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 25kA @ 120/240VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, NOM-117, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards accept the EDB36030 circuit breaker?
This breaker is designed specifically for Square D NF series panelboards. It features a bolt-on mounting design and will not fit in NQ, I-Line, or QO load centers.
What is the difference between EDB, EGB, and EJB circuit breakers?
EDB, EGB, and EJB are all E-Frame breakers designed for NF panelboards. They share the same physical dimensions and trip features but offer different maximum interrupting ratings. EDB provides 18kAIC at 480Y/277VAC, while EGB offers 35kAIC and EJB offers 65kAIC.
What wire sizes do the factory-installed lugs on the EDB36030 accept?
The standard lugs accept 14 to 6 AWG copper wire or 12 to 6 AWG aluminum wire. Always refer to the labeling on the breaker body for specific torque requirements during installation.
Is the EDB36030 rated for HVAC equipment?
Yes, this E-Frame breaker is HACR rated, making it suitable for heating, air conditioning, and refrigeration applications. It is also HID rated for high-intensity discharge lighting circuits.
Can this breaker be used on 480V or 600V systems?
Yes. The EDB36030 is rated for 480Y/277VAC grounded Wye systems with an 18kAIC interrupting rating. It is also rated for 600Y/347VAC systems with a 14kAIC rating.
Can the trip settings be adjusted on this breaker?
No, the EDB36030 features a fixed thermal-magnetic trip unit. Both the long-time and instantaneous trip functions are factory set and cannot be adjusted in the field.
