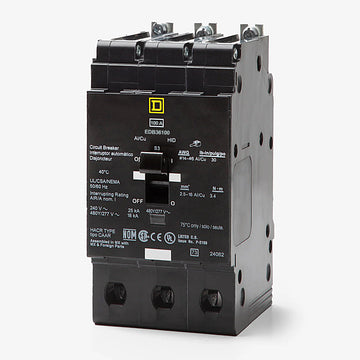

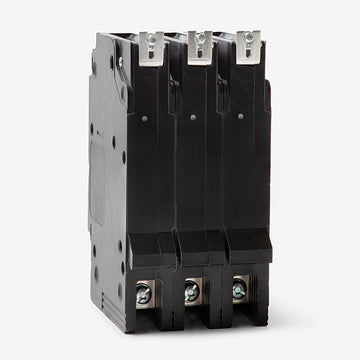

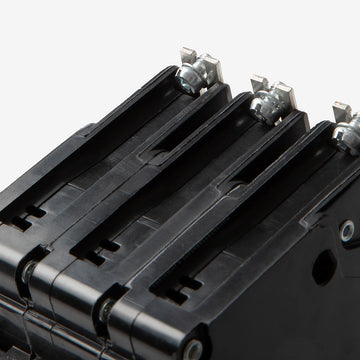

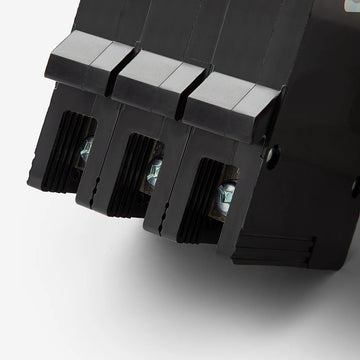

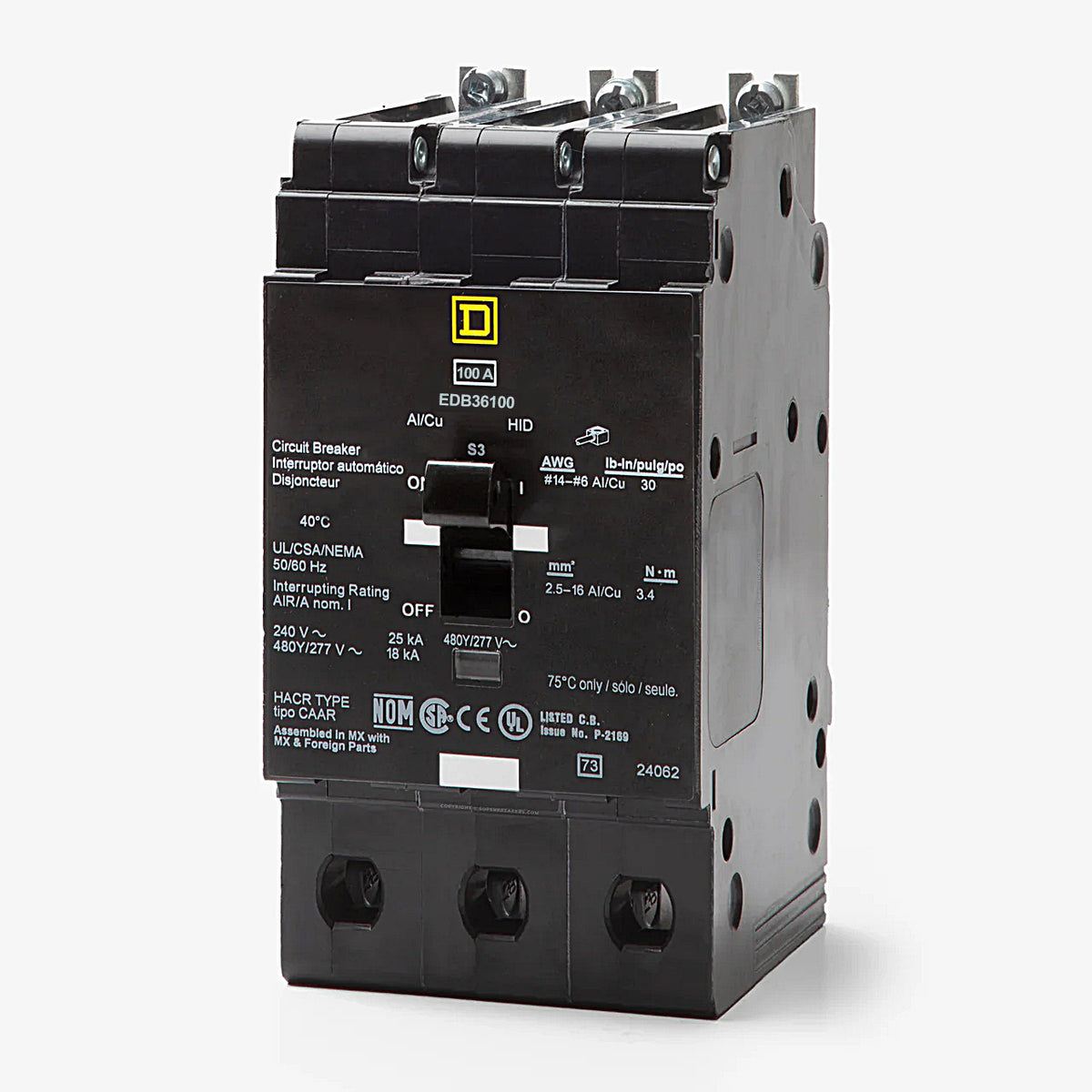

Square D EDB36100 Miniature Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Square D
EDB36100
Miniature Circuit Breaker
Brand
Square D
SKU
EDB36100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EDB36100 - 100A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
100A 3 Pole Miniature Circuit Breaker
110A 3 Pole Miniature Circuit Breaker
80A 3 Pole Miniature Circuit Breaker
Description
Part of the Square D E-Frame family, the EDB36100 provides 100 amps of thermal-magnetic protection for three-phase systems. It is engineered to handle commercial loads, ensuring consistent performance across branch circuit applications. Designed for seamless integration, this breaker bolts into Square D NF panelboards. It comes equipped with factory-installed lugs. With an interrupting rating of 18 kAIC at 480Y/277VAC, the HACR-rated design includes the signature Visi-Trip visual indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | EDB36100 |
| Series | EDB |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 14kA @ 600Y/347VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
8 answersWill this breaker fit in a Square D NQ or I-Line panelboard?
No. The EDB36100 is an E-frame breaker strictly designed for NF series lighting and distribution panelboards. NQ panels require QO or QOB breakers, while I-Line panels require bracketed I-Line breakers.
How does the EDB36100 attach to the panelboard bus?
It features a standard bolt-on connection. The breaker secures directly to the NF panelboard bus bars using captive mounting screws, providing a high-integrity electrical connection suitable for commercial and industrial environments.
Can this breaker be used on an ungrounded 480V Delta system?
No. The breaker has slash voltage ratings of 480Y/277VAC and 600Y/347VAC. It is approved only for solidly grounded wye systems where the line-to-ground voltage does not exceed 277V or 347V. It is not rated for ungrounded or corner-grounded Delta systems.
Is the EDB36100 rated for use with heating and air conditioning equipment?
Yes, this circuit breaker carries a HACR rating, making it fully certified for use with motor-driven HVAC loads such as air compressors and refrigeration equipment.
What is the difference between the EDB36100, EGB36100, and EJB36100?
While these three E-frame models share the same physical dimensions and 100A rating for NF panelboards, their short-circuit interrupting ratings (AIC) at 480Y/277VAC differ. The EDB is rated for 18kA, the EGB for 35kA, and the EJB for 65kA.
Does this breaker include a visual trip indicator?
Yes, it features Square D's Visi-Trip technology. When the breaker trips due to an overcurrent or short circuit, the handle snaps to a center position and a high-visibility red indicator appears, allowing for rapid fault identification in the panel.
Does this model provide Ground Fault Equipment Protection (GFEP)?
No, the standard EDB36100 provides only thermal-magnetic overload and short-circuit protection. It does not include built-in Ground Fault (EPD) or Arc Fault (AFI) protection modules.
Do I need to purchase terminal lugs separately?
No, the breaker comes with factory-installed mechanical lugs. These standard lugs accept both copper (14 to 2/0 AWG) and aluminum (12 to 2/0 AWG) conductors.
