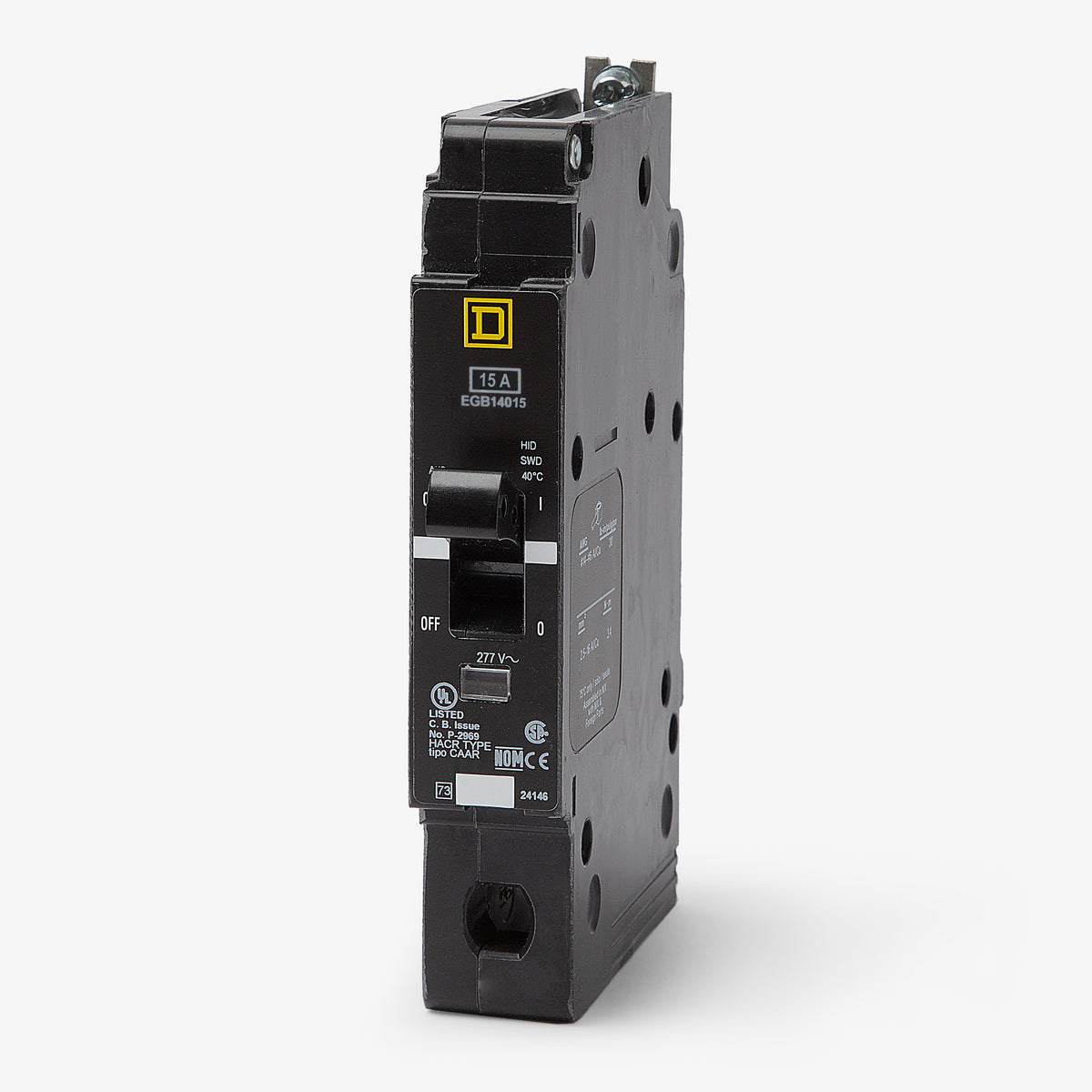

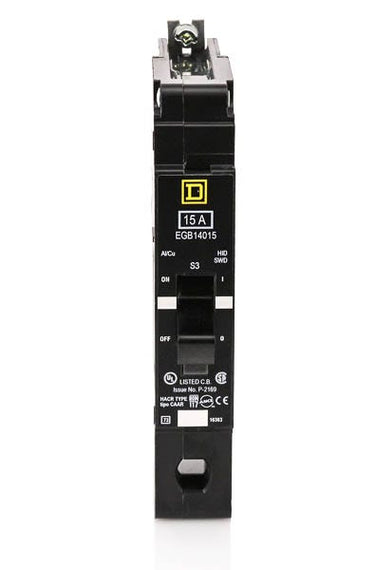

Square D EGB14015 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Quantity
Square D EGB14015 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D EGB14015 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EGB14015 |
| Series | EGB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC |
| Phase | 1 |

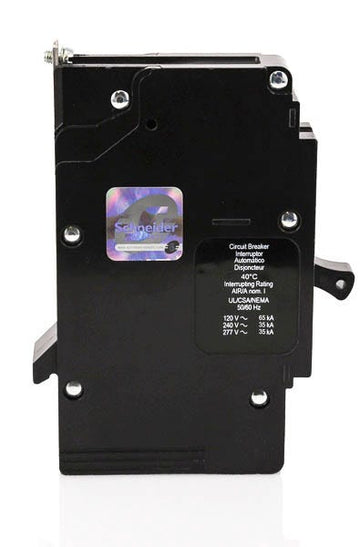

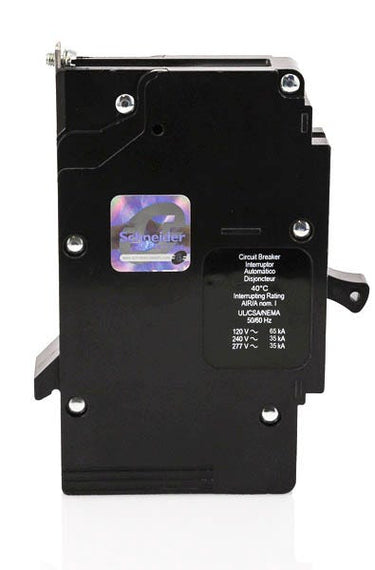

| AIC Rating | 65kA @ 120VAC, 35kA @ 240VAC, 35kA @ 277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, SWD Rated, Visual Trip Indicator |
Quantity
Square D EGB14015 - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EGB14015-R |
| Series | EGB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 35kA @ 240VAC, 35kA @ 277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, SWD Rated, Visual Trip Indicator |
Description
Built for high-capacity distribution, the Square D EGB14015 is a 1-pole, 15A molded case circuit breaker. It delivers reliable thermal-magnetic protection with a robust 65kAIC rating at 120VAC and 35kAIC at 277VAC. This E-Frame breaker mounts into Square D NF panelboards, providing a secure bolt-on connection for commercial lighting and power circuits. It includes a Visi-Trip indicator for rapid fault identification and is SWD rated for switching duty applications.Specifications
| Brand | Square D |
|---|---|
| Part Number | EGB14015 |
| Series | EGB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 35kA @ 240VAC, 35kA @ 277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, SWD Rated, Visual Trip Indicator |
Product FAQs
5 answersWhich panelboards are compatible with the Square D EGB14015 circuit breaker?
The EGB14015 is an E-Frame bolt-on circuit breaker designed exclusively for use in Square D NF series panelboards.
What is the difference between Square D EDB, EGB, and EJB circuit breakers?
The difference lies in their interrupting ratings at 277VAC. The EDB is rated at 18kAIC, the EGB is rated at 35kAIC, and the EJB is rated at 65kAIC. All three share the same physical E-Frame dimensions and mount in NF panelboards.
Can I replace an EDB14015 with the EGB14015?
Yes. The EGB14015 has a higher interrupting rating (35kAIC vs 18kAIC at 277VAC) but features the exact same physical dimensions, mounting style, and wire lug specifications, making it a safe and direct upgrade.

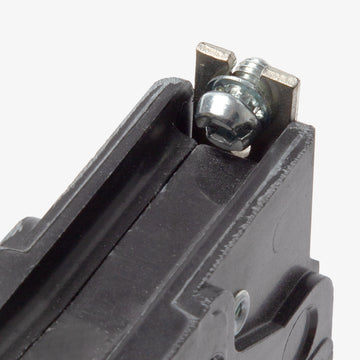

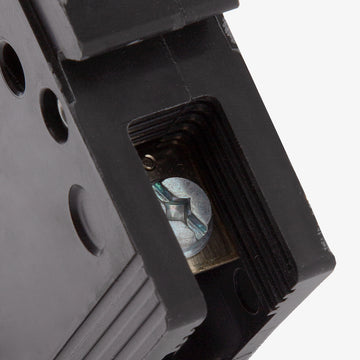

What are the wire size and torque specifications for the EGB14015 lugs?
The factory lugs accept 14 to 6 AWG copper or 12 to 6 AWG aluminum wire. The recommended tightening torque for this wire range is 30 lb-in (3.4 N-m).
Is the EGB14015 rated for HID lighting or HACR applications?
Yes, this 15A breaker is HACR rated for heating, air conditioning, and refrigeration equipment. It is also UL Listed for High-Intensity Discharge (HID) lighting and Switching Duty (SWD) applications.
