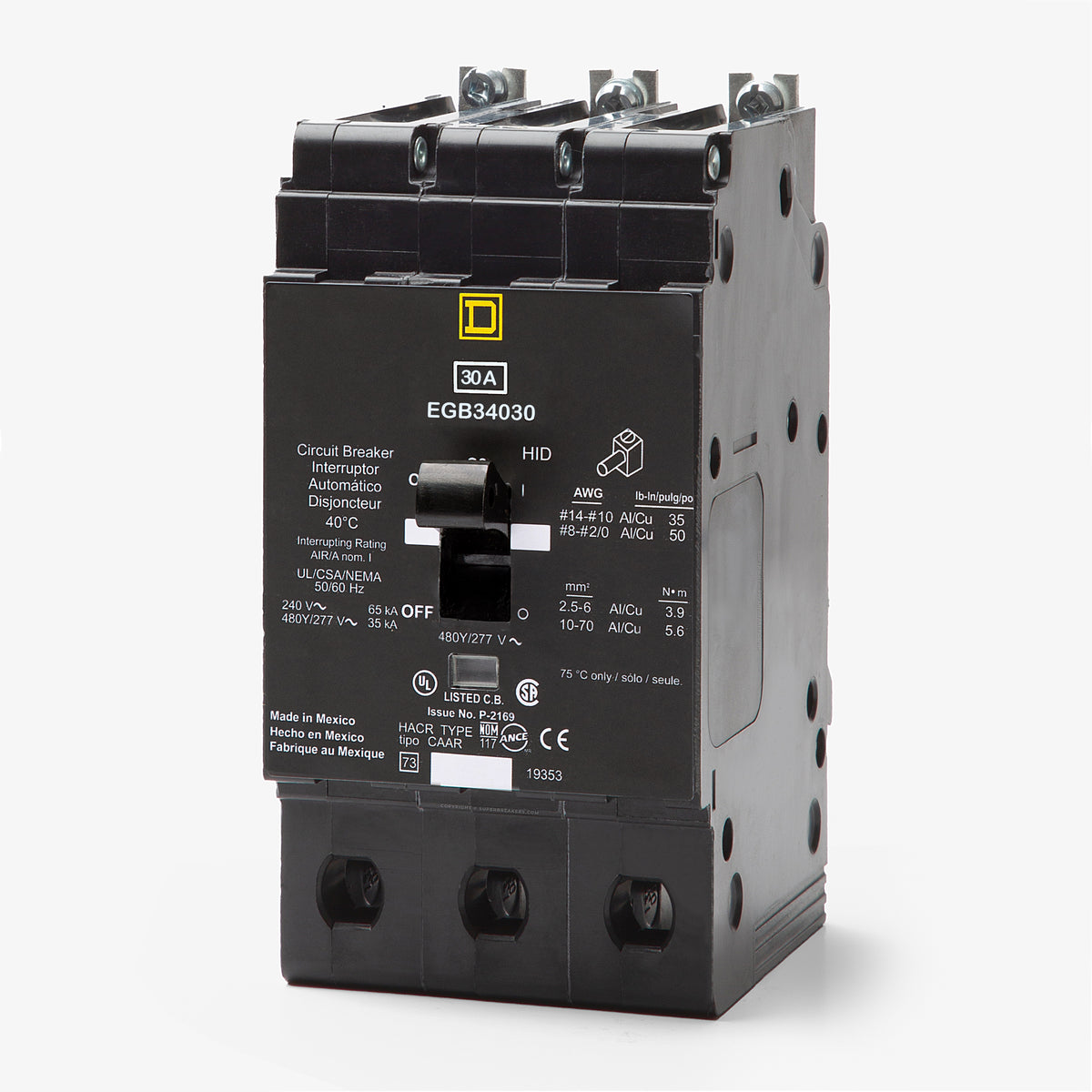

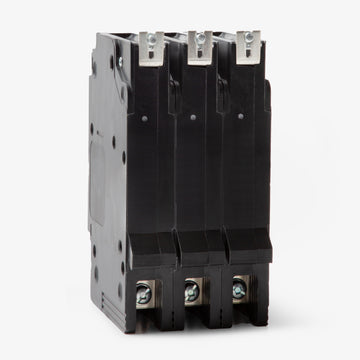

Square D EGB34030 Miniature Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Square D
EGB34030
Miniature Circuit Breaker
Brand
Square D
SKU
EGB34030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EGB34030 - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D EGB34030 - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EGB34030 |
| Series | EGB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Quantity
Square D EGB34030 - 30A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EGB34030-R |
| Series | EGB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Similar Items
40A 3 Pole Miniature Circuit Breaker
40A 3 Pole Miniature Circuit Breaker
20A 3 Pole Miniature Circuit Breaker
Description
Built for commercial and industrial electrical systems, the EGB34030 delivers robust thermal-magnetic protection in a compact E-Frame design. This 3-pole, 30A miniature circuit breaker is rated for 65kAIC at 240V and 35kAIC at 480Y/277V, making it ideal for demanding environments. It installs into Square D NF panelboards using a secure bolt-on mounting style. The unit accommodates 14-6 AWG copper or 12-6 AWG aluminum wiring via standard lug terminals.Specifications
| Brand | Square D |
|---|---|
| Part Number | EGB34030 |
| Series | EGB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
8 answersWhat panelboards are compatible with the EGB34030?
This E-frame breaker is designed exclusively for bolt-on installation in Square D NF series panelboards. It is not compatible with NQ, NQOD, or QO load centers, which require different breaker profiles.
What does the "G" in the EGB prefix signify?
In Square D E-frame circuit breakers, the middle letter designates the maximum interrupting capacity at 480Y/277VAC. The "G" in EGB indicates a 35 kAIC rating. By comparison, an EDB is rated for 18 kAIC, and an EJB is rated for 65 kAIC.
Can the EGB34030 replace an EDB34030 or EJB34030?
Yes. Because all Square D 125A frame E-series breakers share the same physical dimensions and mounting footprint, the EGB34030 can directly replace an EDB34030. It can also substitute for an EJB34030, provided your system's available fault current does not exceed the 35 kAIC rating of the EGB at 480Y/277VAC.
What is the recommended tightening torque for the EGB34030 wire terminals?
The factory installed aluminum lugs on this 30A breaker should be torqued to 30.09 lb-in (3.4 N.m). This specification applies whether you are terminating copper or aluminum conductors.
Is this breaker suitable for heating, cooling, or lighting loads?
Yes. The EGB34030 is HACR rated for use with heating, air conditioning, and refrigeration equipment. It is also HID rated, meaning it is fully certified for high intensity discharge lighting circuits.
What are the magnetic holding and trip currents for this breaker?
The instantaneous magnetic trip function on the EGB34030 is factory calibrated with a hold current of 270A and a guaranteed trip current of 875A.
How can I visually identify if this breaker has tripped in a panel?
This model features the Square D Visi-Trip indicator. When the breaker trips due to an overcurrent or short circuit, the handle snaps to a midpoint position and a high visibility red indicator appears, making it easy to quickly locate in a fully populated NF panelboard.
Can the EGB34030 handle be padlocked for lockout and tagout procedures?
Yes. You can use a compatible Square D padlocking attachment, such as the EDPAF lock-off device, to secure the breaker handle in the OFF position during electrical maintenance.
