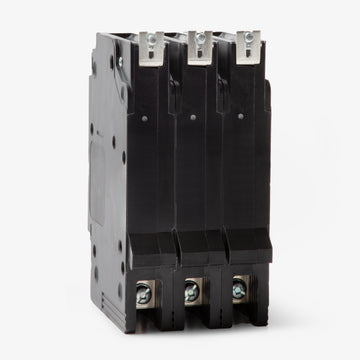

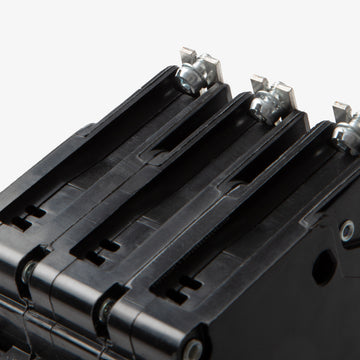

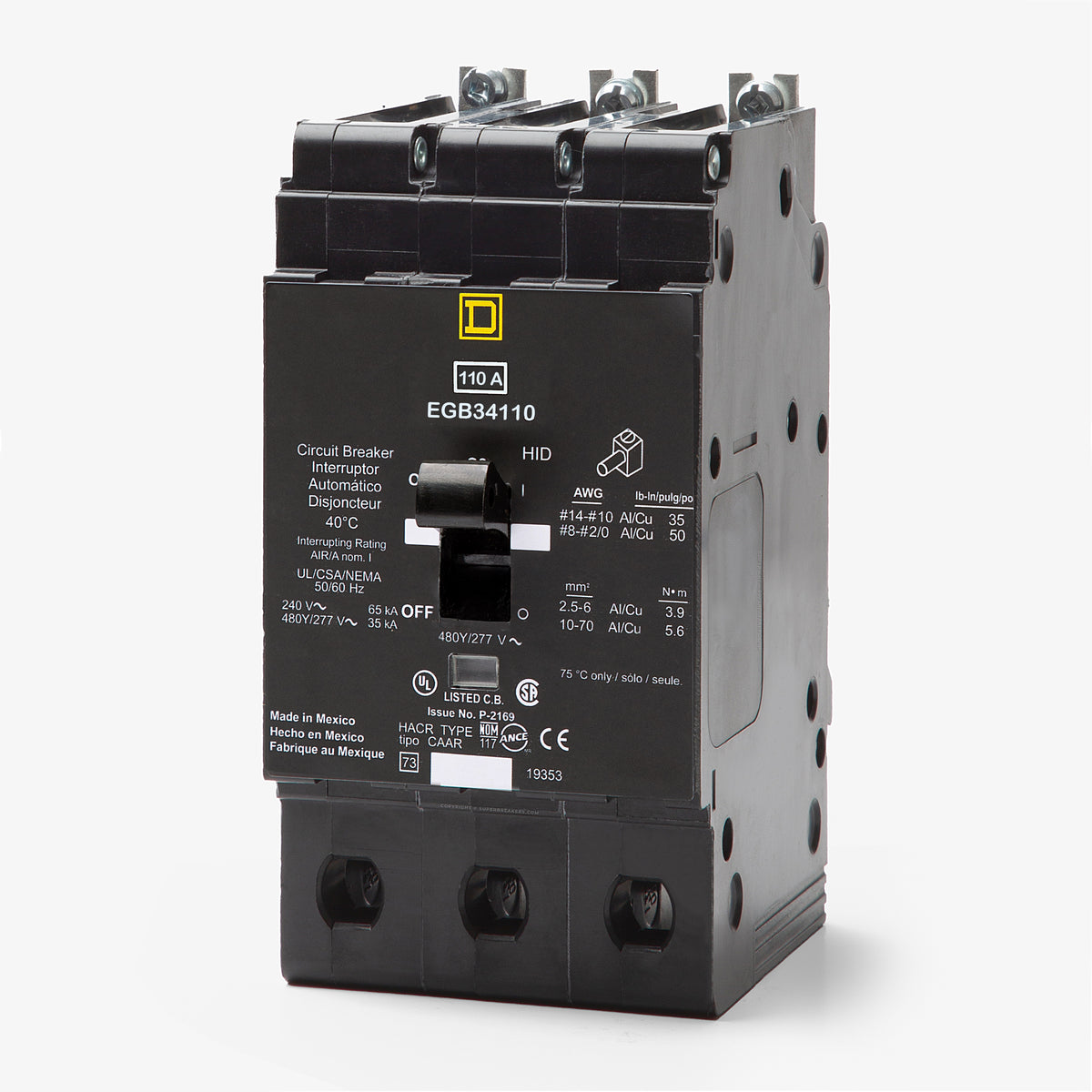

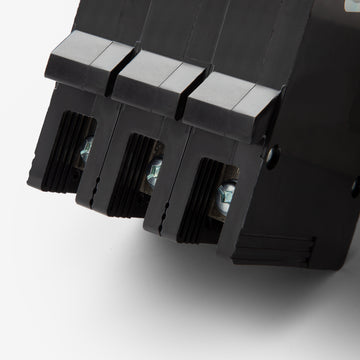

Square D EGB34110 Miniature Circuit Breaker
- 110A
- 3 Pole
- Bolt-On
Square D
EGB34110
Miniature Circuit Breaker
Brand
Square D
SKU
EGB34110
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EGB34110 - 110A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D EGB34110 - 110A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | EGB |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Sold out
Quantity
Square D EGB34110 - 110A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | EGB |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
100A 3 Pole Miniature Circuit Breaker
90A 3 Pole Miniature Circuit Breaker
80A 3 Pole Miniature Circuit Breaker
Description
Built to handle rigorous industrial power demands, this 110-amp thermal-magnetic device supplies essential overcurrent and short-circuit defense. The E-frame component mounts firmly into Square D NF series panelboards, utilizing a bolt-on mechanism to ensure reliable three-phase power delivery. Featuring an integrated Visi-Trip visual indicator, it allows facility managers to easily identify tripped status while supporting up to 480Y/277V systems.Specifications
| Brand | Square D |
|---|---|
| Series | EGB |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat is the required wire torque for the lugs on the EGB34110?
The correct terminal tightening torque depends on the wire size. Torque 14 to 10 AWG conductors to 34.5 lb-in (3.9 Nm) and 8 to 2/0 AWG conductors to 49.6 lb-in (5.6 Nm).
Are there 110A Square D E-Frame breakers available with different interrupting ratings?
Yes. While the EGB34110 offers a 35kAIC rating at 480Y/277VAC, you can substitute the EDB34110 for applications requiring a standard 18kAIC or the EJB34110 for applications needing a high interrupting capacity of 65kAIC at the same voltage.
Can the EGB34110 be installed in standard NQ or I-Line panelboards?
No. The EGB34110 is an E-Frame bolt-on breaker engineered specifically for Square D NF series panelboards. It will not physically fit or mount correctly in NQ or I-Line panels.
Is the EGB34110 rated for use on straight 480V ungrounded delta systems?
No. This breaker carries a 480Y/277VAC rating, meaning it is designed exclusively for solidly grounded wye electrical systems. It is not rated to be used safely on ungrounded or corner-grounded straight 480V delta configurations.
Is the EGB34110 suitable for protecting commercial HVAC equipment?
Yes. The EGB34110 is HACR rated, verifying that it has been tested and approved to safely protect heating, air conditioning, and refrigeration motor branch circuits.
