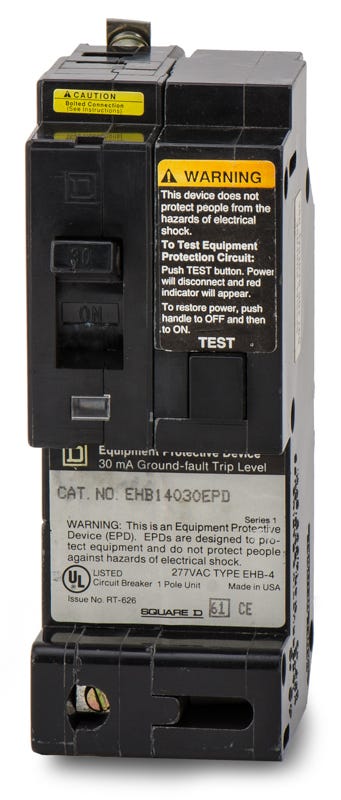

Square D EHB14030EPD GFEP Molded Case Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Quantity
Square D EHB14030EPD - 30A GFEP Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Square D EHB14030EPD - 30A GFEP Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB14030EPD |
| Series | EHB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | 30mA Equipment Ground Fault Protection |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D EHB14030EPD - 30A GFEP Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB14030EPD-R |
| Series | EHB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | 30mA Equipment Ground Fault Protection |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Description
Part of the legacy EHB series, this 30A single-pole breaker delivers specialized 30mA ground-fault protection for commercial equipment. The Square D EHB14030EPD operates at 277VAC with a 14kAIC rating, utilizing thermal-magnetic mechanisms for standard overcurrent defense. It mounts via bolt-on connection into older NEHB panelboards and features the signature Visi-Trip flag. Because the NEHB line is discontinued, upgrading to an NF panelboard is required to use modern EDB series replacements.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB14030EPD-R |
| Series | EHB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | 30mA Equipment Ground Fault Protection |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat panelboards are compatible with the EHB14030EPD?
This breaker is designed exclusively for legacy Square D NEHB panelboards. It will not fit in modern NF panelboards.
Can I use an EDB series breaker to replace the EHB14030EPD?
No. While the EDB series is the modern equivalent, EDB breakers are designed for NF panelboards and are not physically interchangeable with EHB breakers in older NEHB panelboards.
What does the EPD designation mean on this breaker?
EPD stands for Equipment Protection Device. It provides a 30mA ground-fault trip level designed to protect commercial equipment from damage, rather than the 5mA Class A ground-fault protection used for personnel safety.
How is the neutral connection made for the ground-fault feature?
The EHB14030EPD includes a pigtail neutral wire that must be connected directly to the panelboard neutral bar for the ground-fault equipment protection to function properly.
Does this breaker include a tripped indicator?
Yes, it features the standard Square D Visi-Trip indicator, which provides a clear visual flag when the breaker has tripped due to an overcurrent or ground-fault condition.
