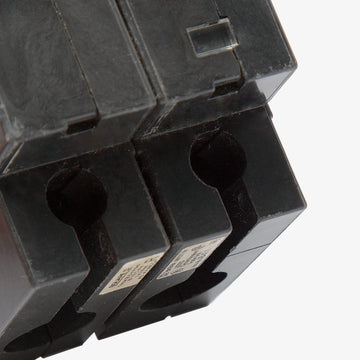

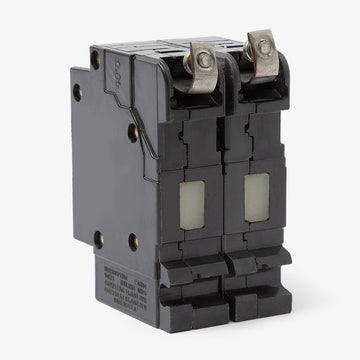

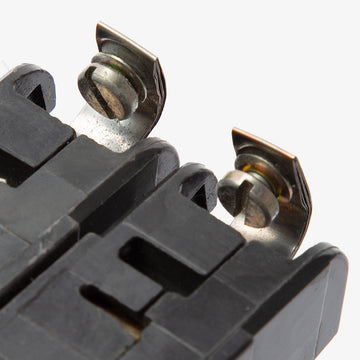

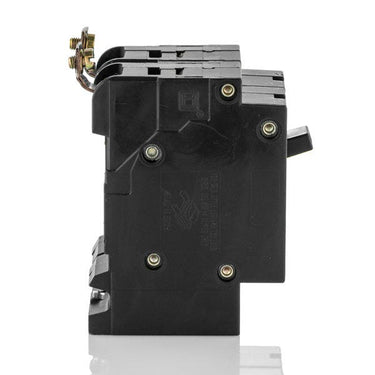

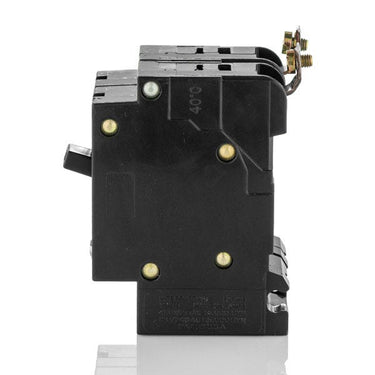

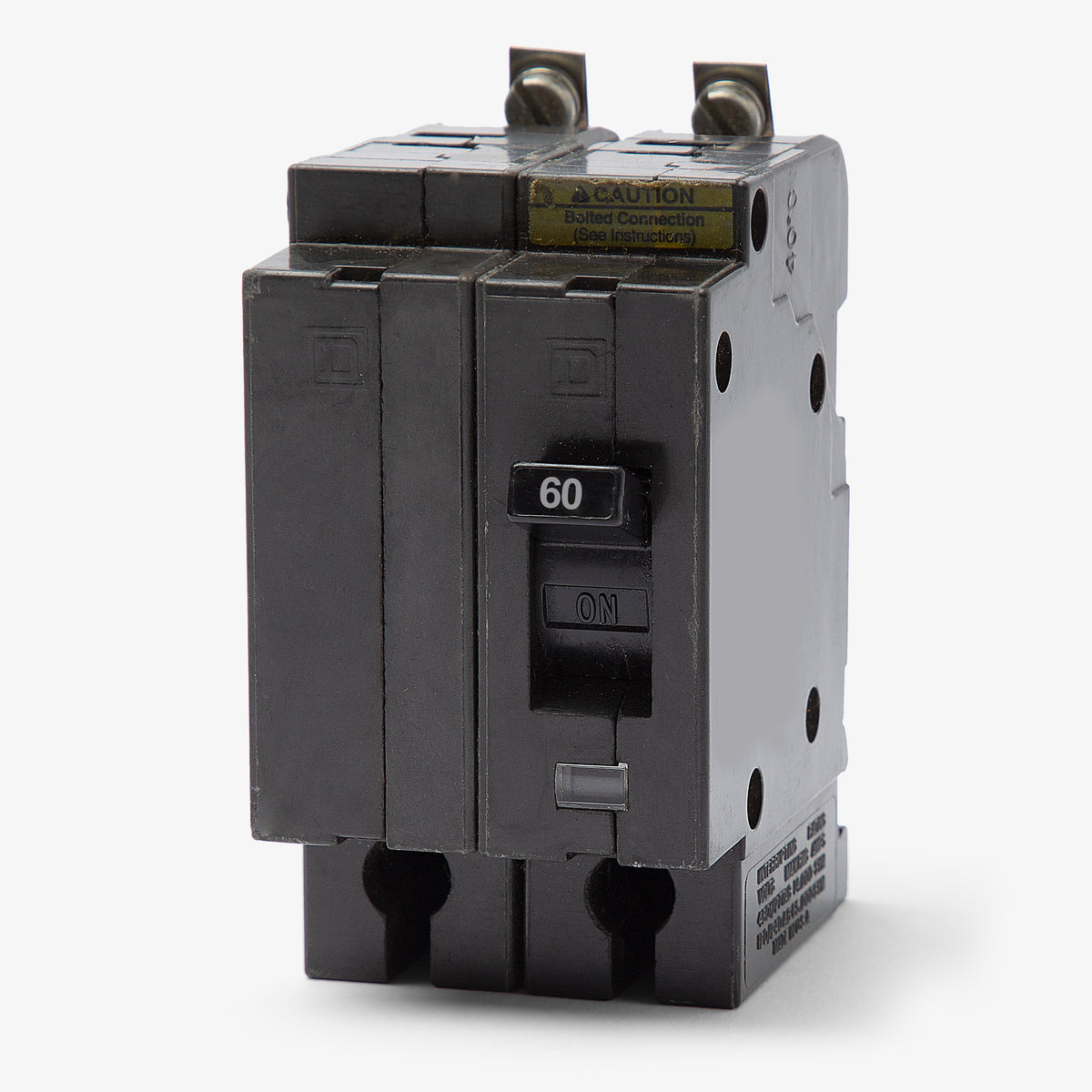

Square D EHB24060 Molded Case Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Quantity
Square D EHB24060 - 60A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Square D EHB24060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB24060 |
| Series | EHB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D EHB24060 - 60A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB24060-R |
| Series | EHB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Description
Engineered for commercial applications, the Square D EHB24060 is a 2-pole, 60A molded case circuit breaker delivering robust thermal-magnetic protection. This bolt-on unit installs into Square D NEHB panelboards. As a legacy component, it is often replaced by the EDB24060, which requires an NF series panelboard. Rated for 14kAIC at 480Y/277V, it includes a Visi-Trip indicator for quick fault identification and is HACR rated for HVAC equipment.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB24060-R |
| Series | EHB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat panelboards are compatible with the EHB24060 circuit breaker?
The EHB24060 is designed exclusively for use in legacy Square D NEHB lighting and distribution panelboards. It features a bolt-on connection that mounts directly to the NEHB bus.
Is the Square D EHB24060 an obsolete circuit breaker?
Yes, the EHB series and NEHB panelboards are legacy products that are no longer manufactured. However, the EHB24060 remains the correct direct replacement for maintaining existing NEHB panels without requiring a full panelboard upgrade.
What wire sizes do the lugs on the EHB24060 accept?
The factory-installed load side lugs on this 60A breaker accept 14 AWG to 2/0 AWG copper wire, or 12 AWG to 2/0 AWG aluminum wire. Always verify the correct torque specifications printed on the breaker label during installation.
What does the LI trip function code mean on the EHB24060?
The LI designation indicates that this thermal-magnetic breaker provides both Long-Time (thermal) overload protection and Instantaneous (magnetic) short-circuit protection. Both trip elements are fixed and non-adjustable.
Can I use an EDB series breaker to replace the EHB24060?
No. While EDB breakers are the modern equivalent used in newer Square D NF panelboards, they have a different mounting configuration and will not fit into an older NEHB panelboard. You must use an EHB series breaker for NEHB panels.
