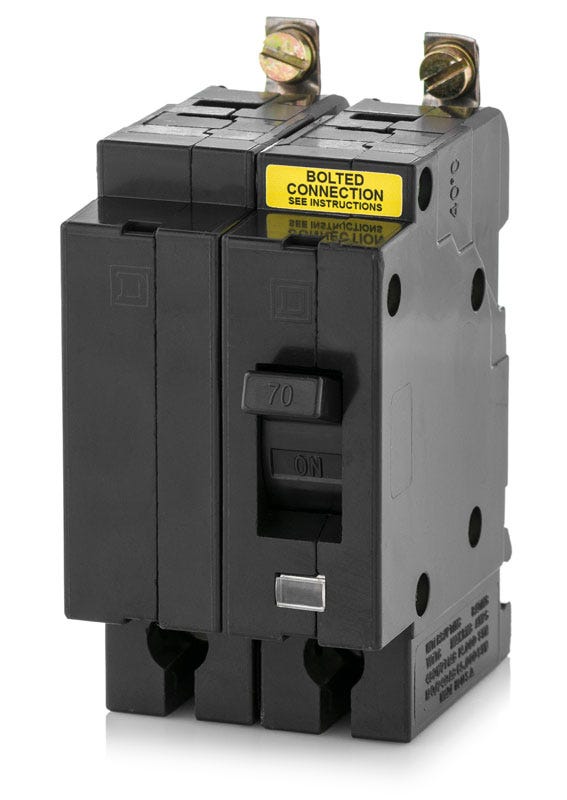

Square D EHB24070 Molded Case Circuit Breaker
- 70A
- 2 Pole
- Bolt-On
Quantity
Square D EHB24070 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D EHB24070 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB24070 |
| Series | EHB |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Cu/Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity

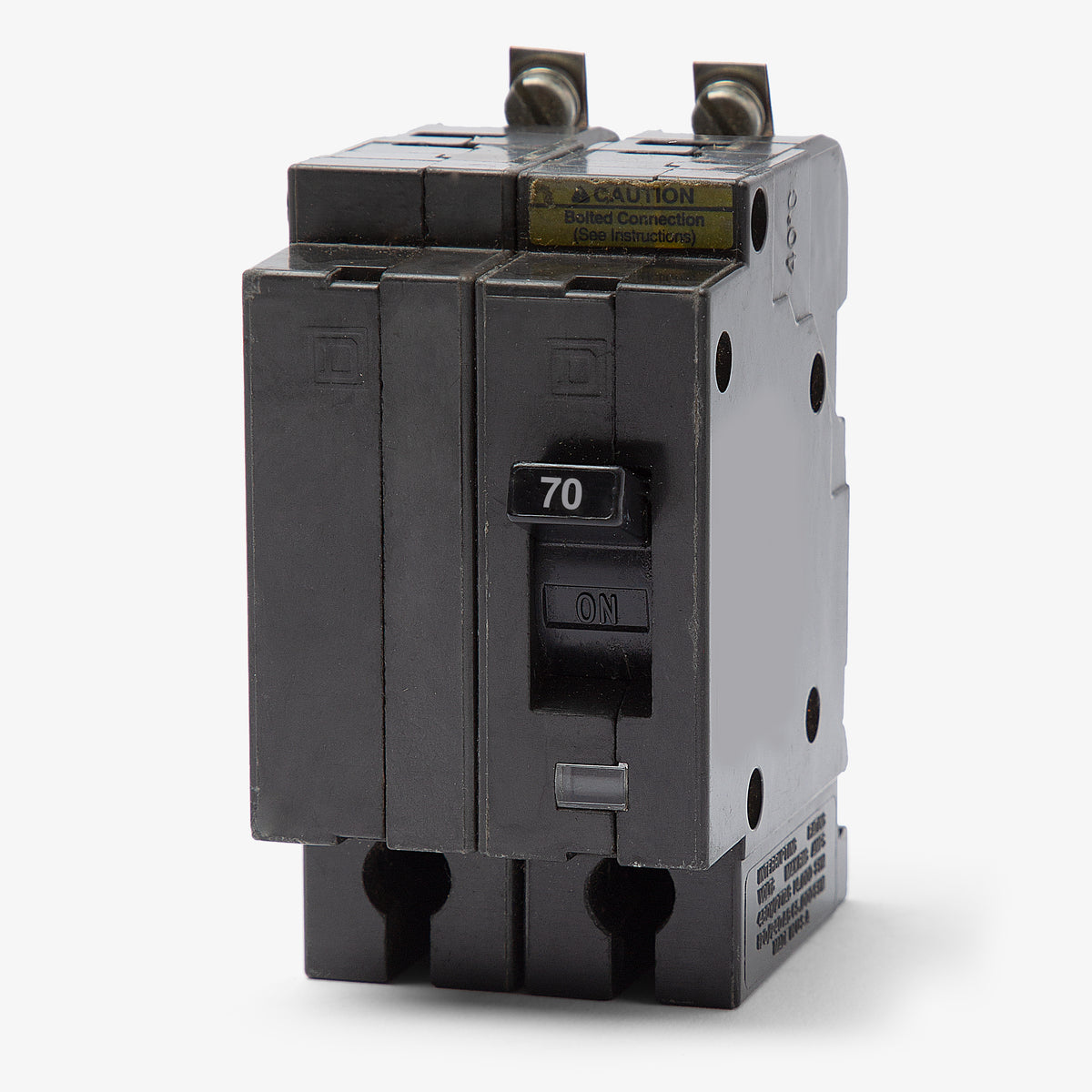

Square D EHB24070 - 70A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB24070-R |
| Series | EHB |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Cu/Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Description
Providing essential overload protection, the Square D EHB24070 is a 70A, 2-pole molded case circuit breaker built for commercial environments. This breaker features a bolt-on configuration that mounts into legacy Square D NEHB panelboards. For newer systems, the EDB24070 serves as the replacement in NF panels. It offers a 14kAIC rating at 480Y/277VAC. The integrated Visi-Trip feature provides clear visual confirmation of a tripped status for faster maintenance.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB24070 |
| Series | EHB |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Cu/Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersCan I replace my EHB24070 with a newer EDB series breaker?
No. While EDB breakers are the modern equivalent used in newer Square D NF panelboards, they are not backwards compatible with legacy NEHB panelboards. You must use an EHB series breaker to ensure proper fit and function in an NEHB panel.
Is the Square D EHB series discontinued?
Yes, Square D has made the EHB circuit breaker series and the corresponding NEHB panelboards obsolete. Replacing a faulty breaker with an EHB24070 allows you to maintain your existing electrical distribution system without the expense of a complete panelboard upgrade.
Does the EHB24070 provide visual indication when it trips?
Yes, this breaker features a Visi-Trip indicator. When the breaker trips due to an overcurrent or short circuit, the handle snaps to a midpoint position and a highly visible red indicator appears, allowing electricians to quickly identify the faulted circuit.
Can I install the EHB24070 on an energized panelboard?
No. For safety and compliance with electrical codes, you must completely de-energize the NEHB panelboard before installing or removing any bolt-on circuit breakers. Always verify the power is off using a properly rated voltage tester before beginning work.
What does the LI trip function code mean on the EHB24070?
The LI designation indicates that this thermal-magnetic breaker provides both Long-Time (L) and Instantaneous (I) trip functions. The long-time function protects against sustained overloads, while the instantaneous function provides immediate tripping during severe short circuits.
Will the EHB24070 work in a Square D I-Line panelboard?
No, the EHB24070 is a bolt-on molded case circuit breaker designed exclusively for legacy Square D NEHB panelboards. I-Line panelboards require specialized breakers with I-Line mounting brackets.
