Square D FA14060A Molded Case Circuit Breaker
- 60A
- 1 Pole
- I-Line
Square D
FA14060A
Molded Case Circuit Breaker
Brand
Square D
SKU
FA14060A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

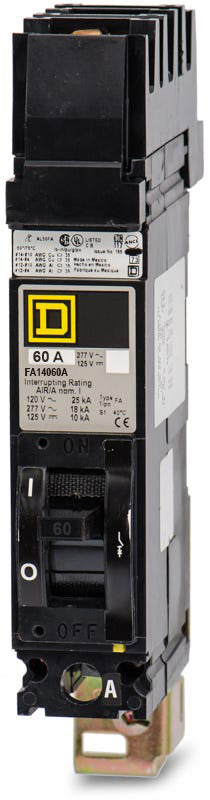

Square D FA14060A - 60A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 1 Pole Molded Case Circuit Breaker
80A 1 Pole Molded Case Circuit Breaker
80A 1 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty commercial applications, this 60A molded case circuit breaker offers reliable thermal-magnetic protection. It fastens into Square D I-Line panelboards and switchboards utilizing a factory-installed phase A jaw. The unit boasts an 18kAIC rating at 277VAC and includes the standard Visi-Trip flag to simplify maintenance checks. While part of the legacy F-Frame family, it can be seamlessly replaced by the newer PowerPacT BDA140601 model.Specifications
| Brand | Square D |
|---|---|
| Series | FA |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 120VAC, 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Phase A Jaws (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489, W-C-375B/GEN |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
6 answersIs the FA14060A still manufactured, or is it a legacy breaker?
The FA14060A is part of the legacy Square D F-Frame family. For modern applications, it is often replaced by the newer PowerPact B-Frame series, specifically the BDA140601, which shares the same 1-pole, 60A, I-Line configuration.
What type of panelboards accept the FA14060A circuit breaker?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It features a plug-on I-Line jaw connection on the line side for quick installation, rather than a standard bolt-on or clip-on mounting.
What does the A suffix in the FA14060A catalog number indicate?
The A suffix indicates that this 1-pole breaker is factory-configured with a jaw to connect specifically to the A-phase bus of an I-Line panelboard. If you need to connect to the B-phase or C-phase, you must order the respective FA14060B or FA14060C models.
What wire sizes are compatible with the lugs on the FA14060A?
The load-side lugs accept 14 AWG to 1/0 AWG copper wire, or 12 AWG to 1/0 AWG aluminum wire. Ensure proper torque specifications are followed during installation.
Can the FA14060A be used in DC electrical systems?
Yes, this thermal-magnetic breaker is rated for DC applications up to 125VDC, with a maximum interrupting capacity of 10kAIC at that voltage. This makes it suitable for specific industrial control or battery backup circuits.
Are the trip settings on the FA14060A adjustable?
No, the FA14060A features a fixed thermal-magnetic trip unit. Both the Long-Time (L) overload protection and Instantaneous (I) short-circuit protection are factory-set and cannot be adjusted in the field.
