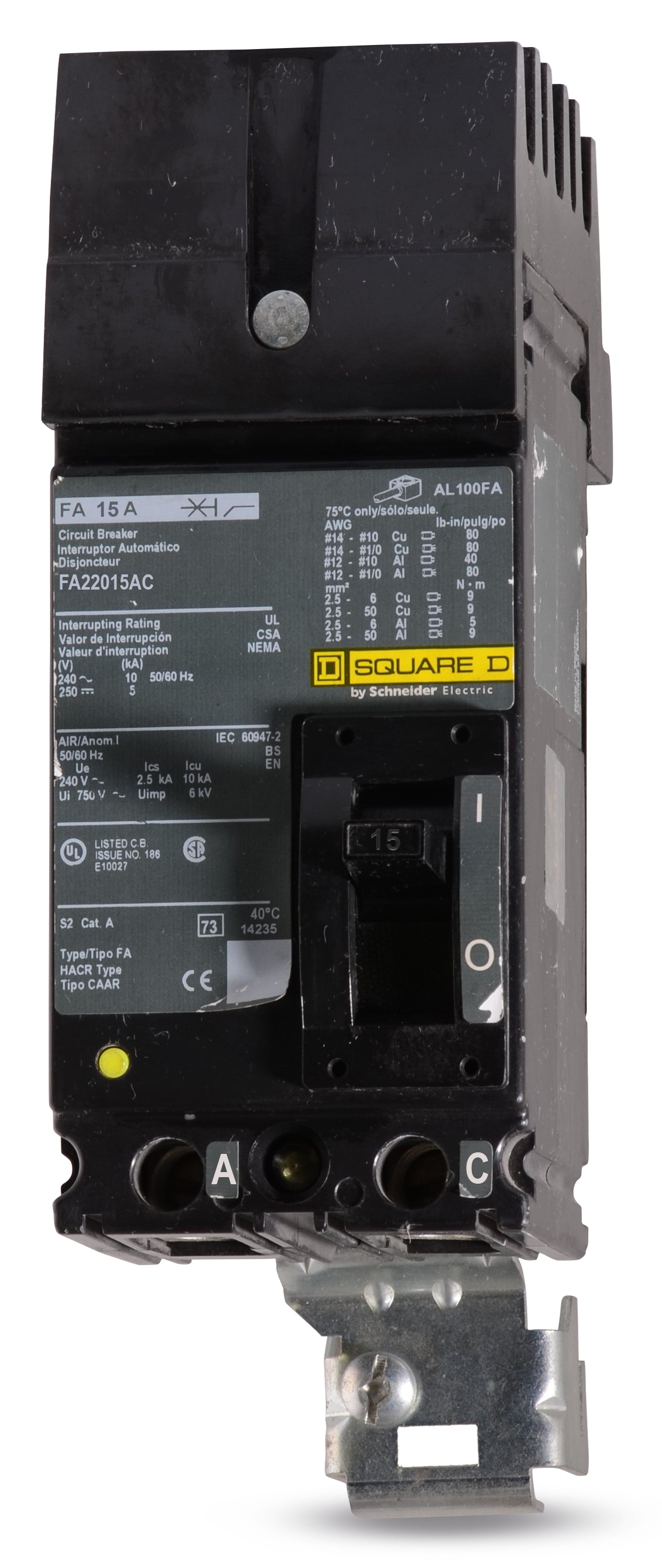

Square D FA22015AC Molded Case Circuit Breaker
- 15A
- 2 Pole
- I-Line
Square D
FA22015AC
Molded Case Circuit Breaker
Brand
Square D
SKU
FA22015AC
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA22015AC - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FA22015AC - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA22015AC |
| Series | FA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Phase AC Jaws |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection AC |
Sold out
Quantity
Square D FA22015AC - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA22015AC-R |
| Series | FA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Phase AC Jaws |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection AC |
Similar Items
15A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
Description
Part of the legacy FA series, this 15-amp molded case circuit breaker provides essential thermal-magnetic protection for commercial and industrial facilities. Designed with an AC phase connection, it mounts into Square D I-Line panelboards to facilitate proper load distribution. Facilities upgrading their infrastructure can replace this unit with the newer BDA240152 model. The breaker features a 10kAIC rating at 240VAC, HACR certification, and a Visi-Trip indicator for fast troubleshooting.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA22015AC |
| Series | FA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Phase AC Jaws |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection AC |
Product FAQs
7 answersWhat does the "AC" suffix indicate on the FA22015AC catalog number?
The "AC" suffix specifies the breaker's phase connection. It is factory-configured to connect directly to the A and C phases of the I-Line bus in the panelboard.
What is the modern replacement for the legacy FA22015AC breaker?
The FA frame is a legacy series that has been discontinued. Facilities upgrading their infrastructure can replace this unit with the newer PowerPact B-frame series, specifically the BDA240152 model, which maintains the 15-amp rating and I-Line mounting style.
What wire sizes are accepted by the lugs on the FA22015AC?
The standard factory-installed lugs on this breaker accommodate copper or aluminum conductors ranging from 14 AWG to 4 AWG.
Can the FA22015AC be installed in standard QO or NQOD panelboards?
No. This breaker features an I-Line plug-in connection and is exclusively compatible with Square D I-Line panelboards and switchboards. It will not fit in QO, NQOD, or standard bolt-on panels.
Can the thermal or magnetic trip points be adjusted on this breaker?
No. The FA22015AC is equipped with a fixed thermal-magnetic trip unit. Both the long-time overload protection and the instantaneous short-circuit protection are factory-set and non-adjustable.
Does the FA22015AC require a separate mounting bracket or hardware kit?
No. As an I-Line style plug-in breaker, it is designed with integrated jaws that grip the panelboard bus bars directly. This allows for a secure mechanical and electrical connection to the bus without additional mounting hardware.
How does the FA22015AC indicate a tripped condition?
When the breaker trips due to an overcurrent or short circuit, the operating handle automatically snaps to a center position between the ON and OFF markings. The handle must be moved fully to the OFF position to reset the mechanism before it can be turned back on.
