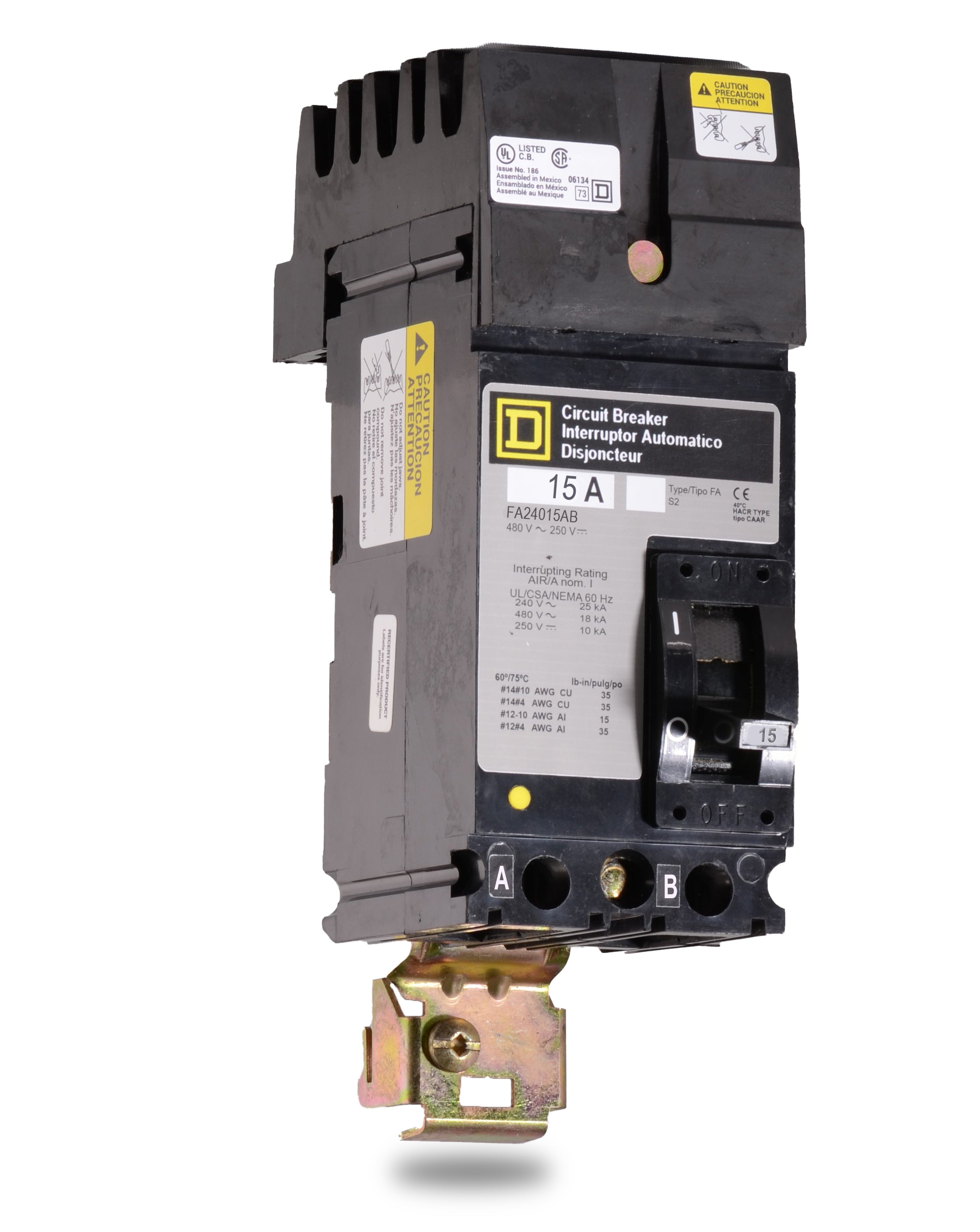

Square D FA24015AB Molded Case Circuit Breaker
- 15A
- 2 Pole
- I-Line
Square D
FA24015AB
Molded Case Circuit Breaker
Brand
Square D
SKU
FA24015AB
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA24015AB - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FA24015AB - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA24015AB |
| Series | FA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D FA24015AB - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA24015AB-R |
| Series | FA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
15A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the Square D FA24015AB is a 2-pole, 15A molded case circuit breaker. It provides reliable overcurrent protection for distribution systems. This F-Frame breaker features an I-Line mounting style with an AB phase connection. It is commonly replaced by the PowerPact HDA260151 for switchgear upgrades. Delivering an 18kAIC rating at 480VAC, the unit utilizes thermal-magnetic trip technology (LI).Specifications
| Brand | Square D |
|---|---|
| Part Number | FA24015AB |
| Series | FA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat is the modern replacement for the Square D FA24015AB circuit breaker?
The FA24015AB is a legacy F-Frame breaker. For modern switchgear upgrades, it is replaced by the Square D PowerPact H-Frame series, specifically the HDA260151, which maintains the 15A rating, 2-pole configuration, and AB phase connection.
What does the AB suffix mean in the FA24015AB catalog number?
The AB suffix indicates the specific phase connection for the I-Line plug-on mounting. It means this 2-pole breaker is configured to connect to the A and B phases of the panelboard bus.
Which panelboards are compatible with the FA24015AB breaker?
This breaker is designed exclusively for use in Square D I-Line panelboards and switchboards. It utilizes an I-Line style plug-in connection and cannot be installed in standard QO, NQ, or NF load centers.
How does the FA24015AB mount into the panelboard?
It features an I-Line plug-on connection. The line side plugs directly into the I-Line bussing, while the load side uses standard lug terminations for the outgoing conductors.
Are the trip settings adjustable on the FA24015AB?
No, this breaker features a thermal magnetic trip unit with fixed thermal and fixed magnetic settings. It provides standard Long Time and Instantaneous protection without field adjustability.
