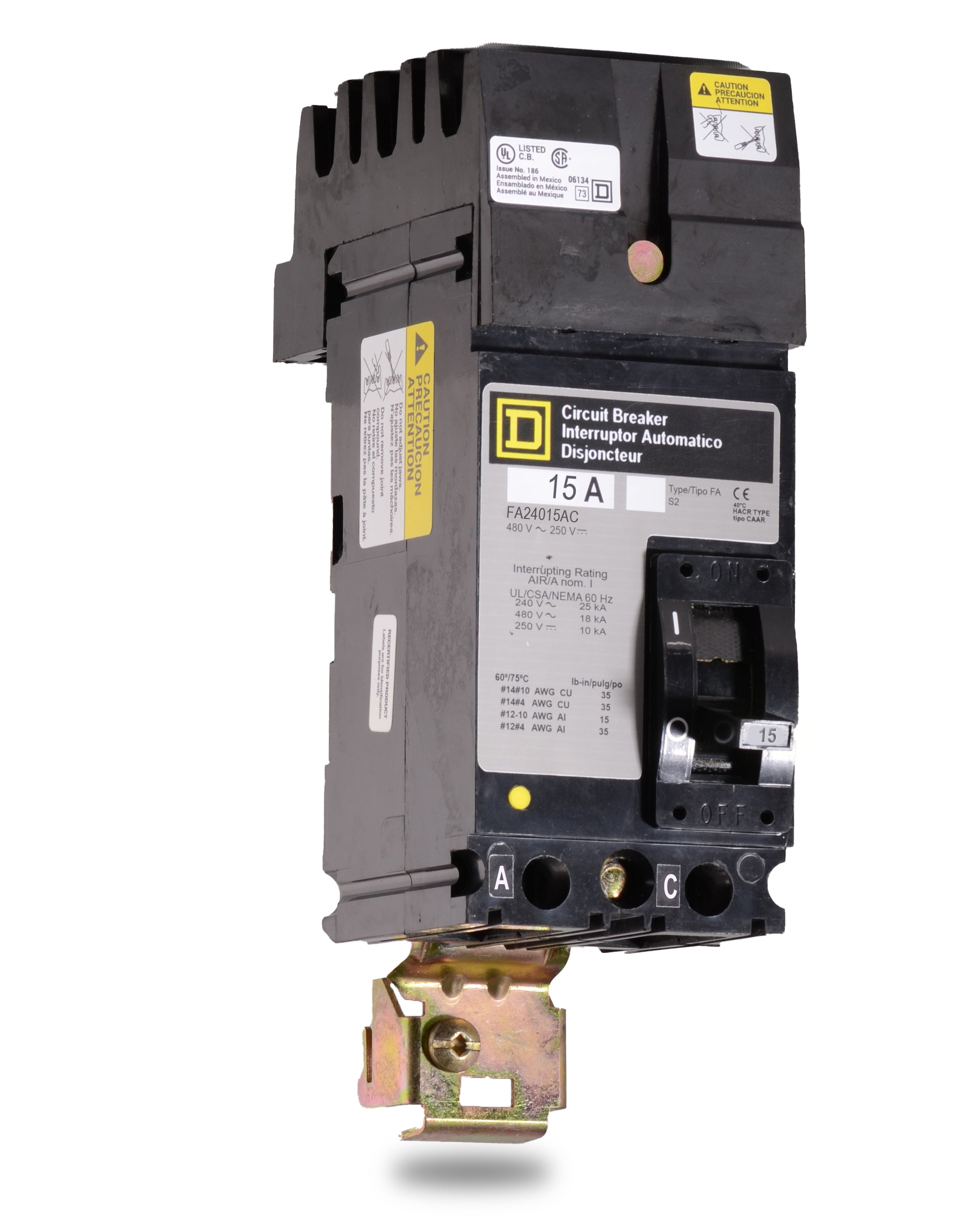

Square D FA24015AC Molded Case Circuit Breaker
- 15A
- 2 Pole
- I-Line
Square D
FA24015AC
Molded Case Circuit Breaker
Brand
Square D
SKU
FA24015AC
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA24015AC - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FA24015AC - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA24015AC |
| Series | FA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection AC |
Sold out
Quantity
Square D FA24015AC - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA24015AC-R |
| Series | FA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection AC |
Similar Items
15A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
Description
Serving commercial facilities, the Square D FA24015AC is a 2-pole, 15A MCCB. It provides dependable overcurrent protection for electrical networks. This model features an AC phase connection and is built for I-Line panelboards. While a staple in legacy systems, it is replaced by the PowerPact BDA240152 for new designs. The breaker achieves an 18kAIC rating at 480VAC. It incorporates fixed thermal-magnetic trip units and a Visi-Trip indicator to streamline troubleshooting.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA24015AC |
| Series | FA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection AC |
Product FAQs
7 answersWhat does the "AC" suffix mean in the FA24015AC catalog number?
The "AC" suffix indicates the phase connection. This 2-pole breaker is factory configured to connect to the A and C phases on a Square D I-Line panelboard bus.
What type of panelboard is required for the FA24015AC?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It features a plug-on design for the line-side bus and mechanical lugs for the load side.
Is the FA24015AC a current model or a legacy breaker?
The FA series is a legacy F-Frame breaker. For modern panel upgrades or new designs, Square D has transitioned to the PowerPact B-Frame series, such as the BDA240152, as the direct replacement.
What wire sizes and materials are compatible with the FA24015AC lugs?
The load-side mechanical lugs accept either copper or aluminum conductors ranging from 14 AWG to 4 AWG.
Can the thermal or magnetic trip settings be adjusted on this breaker?
No, the FA24015AC features a standard thermal-magnetic trip unit with fixed long-time and fixed instantaneous trip functions. The settings cannot be modified in the field.
Is the FA24015AC rated for direct current (DC) applications?
Yes, in addition to its standard AC voltage ratings, this breaker is rated for use on 250VDC systems with a 10kAIC interrupting capacity.
How does the FA24015AC visually indicate a tripped condition?
When the breaker trips due to an overcurrent or short circuit, the operating handle snaps to a center position between ON and OFF, making it easy to identify in a multi-breaker panel.
