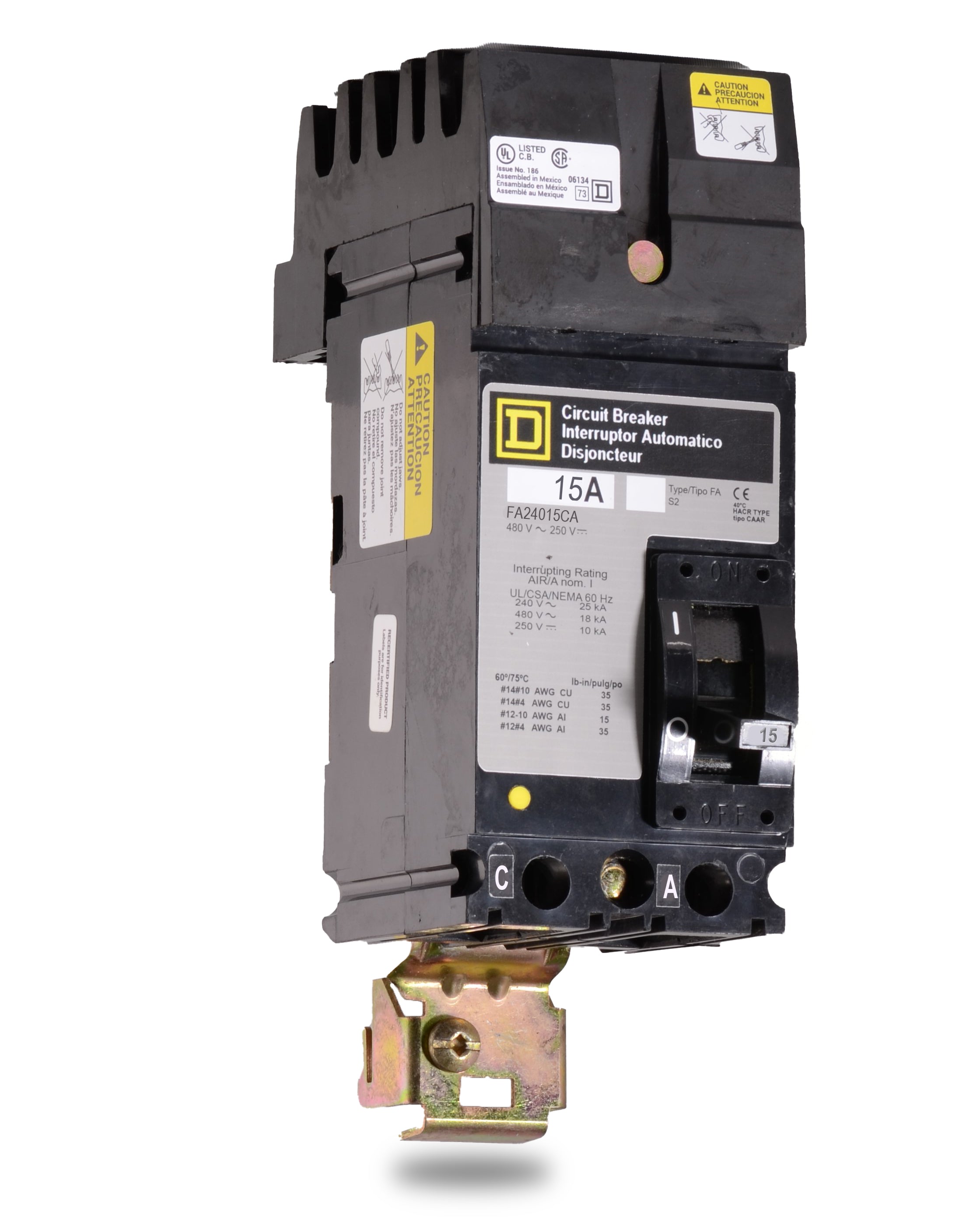

Square D FA24015CA - 15A 2 Pole Molded Case Circuit Breaker
Free Shipping Over $99

Square D FA24015CA Molded Case Circuit Breaker

  • 15A
  • 2 Pole
  • I-Line
Square D FA24015CA
Molded Case Circuit Breaker
Brand Square D
SKU FA24015CA
Select Item Condition
Earn 374 SuperPoints
  • 15A
  • 2 Pole
  • I-Line

Quantity

Bulk Pricing
Send your parts list for a volume quote.
Request Pricing
Square D FA24015CA - 15A 2 Pole Molded Case Circuit Breaker

Square D FA24015CA - 15A 2 Pole Molded Case Circuit Breaker

New

$374.44 No Stock

Quantity

Similar Items

Description SpecificationsProduct FAQs SuperClub Warranties Shipping Reviews 5.0 (71)

Description

Part of the legacy FA series, the Square D FA24015CA delivers reliable thermal-magnetic protection for commercial and industrial electrical systems. This 2-pole, 15-amp molded case circuit breaker is specifically configured with a CA phase connection. It installs into standard Square D I-Line panelboards, providing a robust plug-on connection. Rated for 18 kAIC at 480VAC, it features Visi-Trip technology for quick fault identification and serves as a direct replacement for older installations.

Specifications

Key specifications
Brand Square D
Part Number FA24015CA
Series FA
Amperage 15A
Poles 2
Mounting Style I-Line
Voltage 240VAC, 480Y/277VAC, 480VAC, 250VDC
Phase 1
AIC Rating 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC
Fit and installation
Terminal Type Lugs
For Use With Square D I-Line Panelboards
Wire Gauge 14-1/0 AWG (Cu), 12-1/0 AWG (Al)
Max Wire 1/0 AWG
Min Wire 14 AWG (Cu), 12 AWG (Al)
Protection and operation
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Standards and features
Available Options Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release
Accessories Lugs
Standards CSA C22.2 No. 5, NEMA AB 1, UL 489
Approval CSA, UL
Temp Rating 40C
Construction Features HACR Rated, Phase CA Connection

Product FAQs

6 answers
What panelboards are compatible with the FA24015CA breaker?

The FA24015CA is a plug-in style breaker designed exclusively for Square D I-Line panelboards and switchboards. It cannot be used in standard QO, Homeline, or NQ/NF series panels.

What does the CA suffix mean in the FA24015CA catalog number?

For Square D I-Line breakers, the CA suffix indicates the specific phase connection. This 2-pole breaker is factory-configured to connect to the C and A phases of the panelboard's 3-phase bus.

Is the FA24015CA rated for use in direct current (DC) systems?

Yes, in addition to its AC ratings, this breaker is rated for DC applications up to 250VDC, where it provides an interrupting capacity of 10kAIC.

What wire sizes and materials are supported by the FA24015CA lugs?

The standard mechanical lugs on this breaker accept 14 AWG to 1/0 AWG copper (Cu) wire, or 12 AWG to 1/0 AWG aluminum (Al) wire.

Do I need a separate mounting kit to install the FA24015CA?

No. As an I-Line breaker, it features a plug-in mounting design that connects directly to the I-Line bus assembly. No additional mounting hardware or brackets are required.

Are the trip settings on the FA24015CA adjustable?

No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time (thermal) overload protection and instantaneous (magnetic) short-circuit protection are factory-set and cannot be adjusted in the field.
