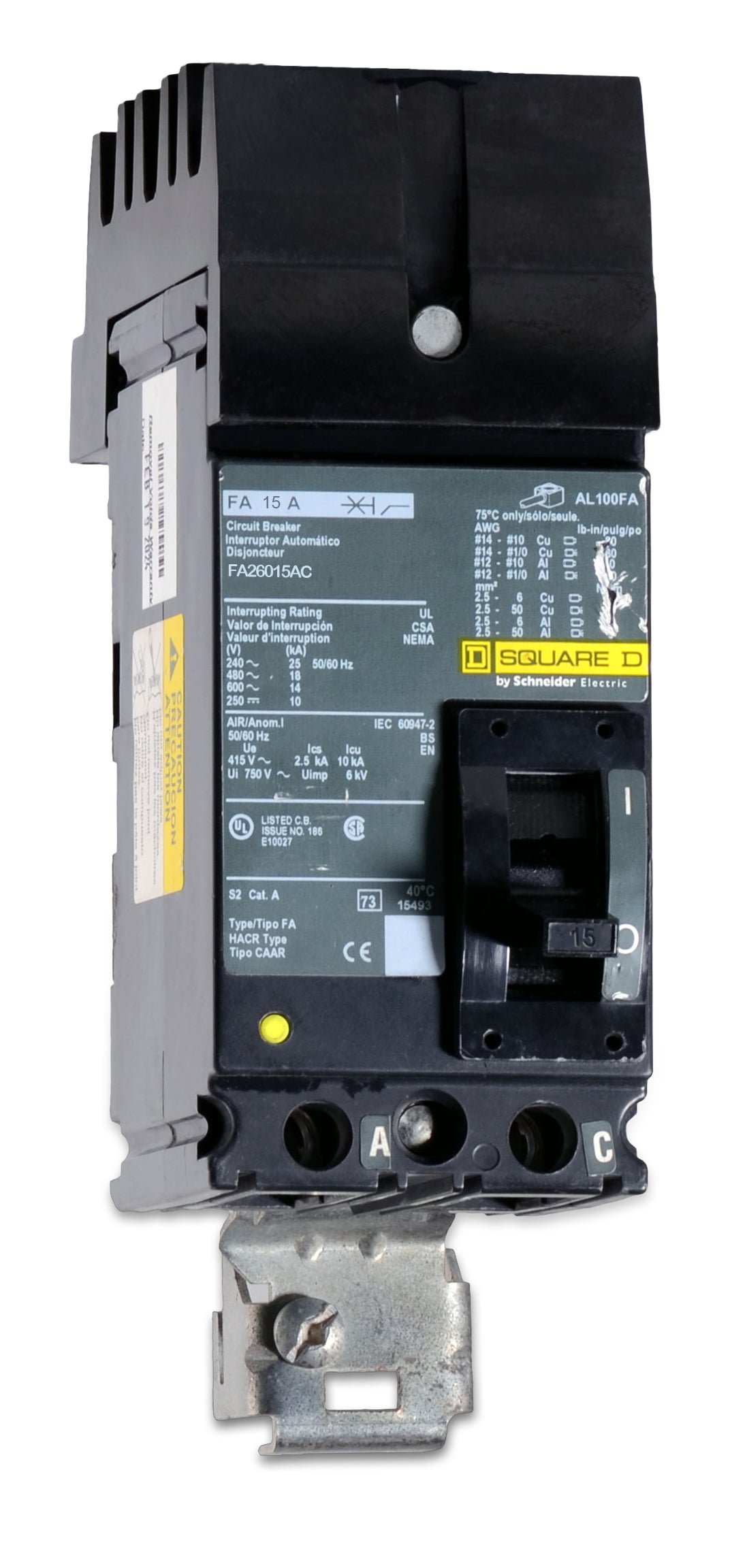

Square D FA26015AC Molded Case Circuit Breaker
- 15A
- 2 Pole
- I-Line
Square D
FA26015AC
Molded Case Circuit Breaker
Brand
Square D
SKU
FA26015AC
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA26015AC - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FA26015AC - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA26015AC |
| Series | FA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Phase AC Jaws |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Sold out
Quantity
Square D FA26015AC - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA26015AC-R |
| Series | FA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Phase AC Jaws |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
15A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
Description
Providing robust overcurrent defense, this 15A Square D MCCB is engineered with a phase AC connection. The 2-pole breaker utilizes fixed thermal-magnetic trip elements to secure industrial circuits. The plug-on I-Line design mounts into compatible Square D panelboards. When transitioning to modern hardware, this F-frame breaker is replaced by the HDA260152. Rated for 600VAC maximum, it delivers 18kAIC at 480V. The unit is HACR rated for HVAC equipment and features a visual trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA26015AC |
| Series | FA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Phase AC Jaws |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat does the AC suffix mean in the FA26015AC catalog number?
The AC suffix indicates the specific busbar phase connection for the I-Line mounting system. This 2-pole breaker is factory-configured to connect to the A and C phases in a 3-phase panelboard.
Which panelboards are compatible with the FA26015AC breaker?
This F-frame breaker is designed exclusively for Square D I-Line panelboards and switchboards. It features a plug-on I-Line connection that mounts directly to the internal busbar system.
What is the modern replacement for the legacy FA26015AC?
The FA series is a legacy F-frame product. For modern system upgrades, Square D typically replaces this model with the PowerPacT H-frame HDA260152. Always verify your panelboard accepts H-frame breakers before upgrading.
Are the thermal and magnetic trip functions adjustable on this breaker?
No. The FA26015AC features a fixed thermal-magnetic trip unit. Both the long-time thermal overload protection and the instantaneous magnetic short-circuit protection are factory-calibrated and cannot be modified in the field.
How does the thermal-magnetic trip unit operate during a fault?
The thermal component uses a bimetal strip that bends as it heats up to clear sustained overloads. The magnetic component provides instantaneous tripping when it detects the high fault currents typical of a short circuit.
