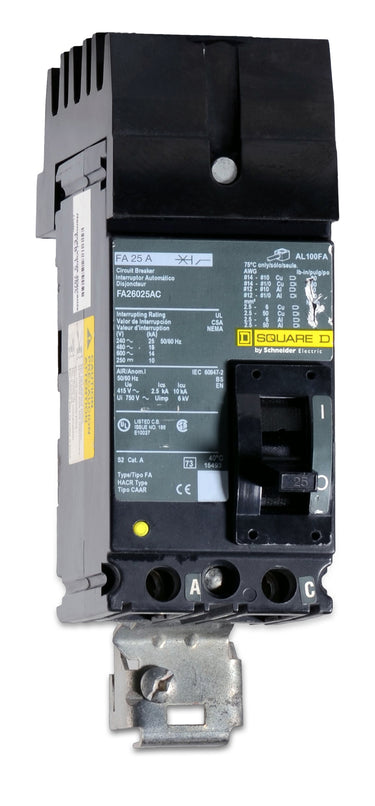

Square D FA26025AC Molded Case Circuit Breaker
- 25A
- 2 Pole
- I-Line
Square D
FA26025AC
Molded Case Circuit Breaker
Brand
Square D
SKU
FA26025AC
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA26025AC - 25A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
25A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial power distribution, the Square D FA26025AC is a 2-pole, 25-amp molded case circuit breaker. It belongs to the legacy F-Frame family and provides reliable thermal-magnetic protection with long-time and instantaneous (LI) trip functions. This breaker features a plug-on I-Line mounting style with an AC phase connection, designed specifically to fit into Square D I-Line panelboards. For modern upgrades, it is replaced by the HDA260252 model.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA26025AC |
| Series | FA |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase Connection AC |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat does the "AC" suffix mean in the FA26025AC catalog number?
The "AC" suffix indicates the phase connection for the I-Line bus. This 2-pole breaker is factory-configured with plug-on jaws that connect specifically to the A and C phases in a Square D I-Line panelboard.
How does the FA26025AC differ from the FA26025AB or FA26025BC?
While all three are 25-amp, 2-pole FA frame breakers, they connect to different phases on the panelboard bus. The FA26025AC connects to phases A and C, whereas the AB and BC variants connect to phases A and B, and B and C, respectively. You must select the correct phase configuration for your panel layout.
Can the trip settings on the FA26025AC be adjusted in the field?
No, the thermal-magnetic trip unit on this breaker has fixed long-time and instantaneous (LI) trip functions. The trip settings are factory-calibrated and cannot be adjusted in the field.
Is the FA26025AC suitable for high fault current applications?
The FA series is a standard-interrupting breaker, rated for 18kA at 480VAC and 14kA at 600VAC. If your power system requires a higher interrupting capacity, you will need to upgrade to an FH frame breaker, which shares the same physical footprint but offers higher AIC ratings.
Do I need to purchase separate lugs for the FA26025AC?
No, this breaker includes factory-installed mechanical lugs on the load side that accept 14 to 4 AWG copper or aluminum wire. The line side utilizes an I-Line plug-on connection, so no line-side lugs are required.
How does the FA26025AC mount into the panelboard?
It utilizes a plug-on I-Line connection that grips the panelboard bus tightly during short circuits. This design allows for quick installation in Square D I-Line panelboards without the need for bolted line-side connections.
