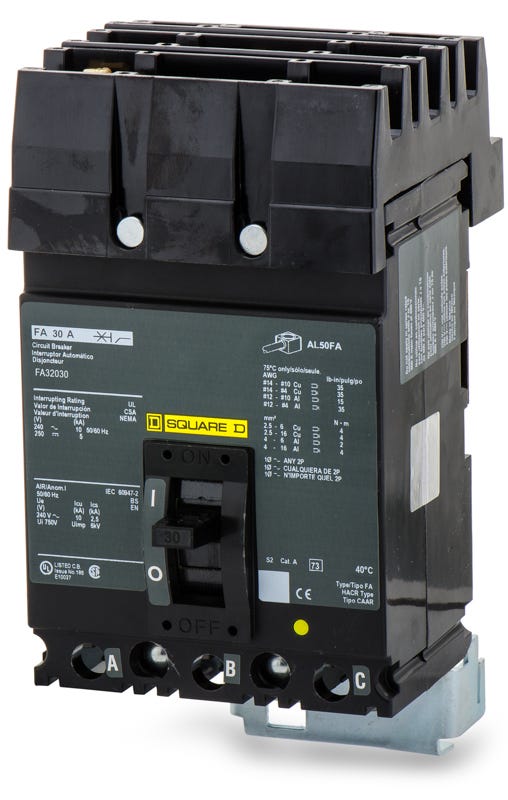

Square D FA32030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- I-Line
Square D
FA32030
Molded Case Circuit Breaker
Brand
Square D
SKU
FA32030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA32030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FA32030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA32030 |
| Series | FA |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D FA32030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA32030-R |
| Series | FA |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
30A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
Description
Operating at 30 amps, this 3-pole molded case circuit breaker is engineered for robust commercial power distribution. It delivers dependable overcurrent protection for branch circuits. The unit features a specialized plug-on mounting style designed exclusively for Square D I-Line panelboards. While still widely used, this legacy breaker is replaced by the BDA34030Y in newer systems. Protection is managed by a fixed thermal-magnetic trip unit offering long-time and instantaneous functions.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA32030 |
| Series | FA |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersIs the Square D FA32030 circuit breaker obsolete?
Yes, the FA frame is a legacy product and is no longer manufactured by Square D. It remains available as a drop-in replacement for existing I-Line panels. For modern retrofits or new systems, the PowerPact B-frame, specifically the BDA34030Y, is the current replacement.
What are the magnetic trip settings for the FA32030?
This breaker features a fixed thermal-magnetic trip unit. For the 30A FA frame, the magnetic hold setting is 275A and the magnetic trip setting is 600A.
Which lug kit is standard for the FA32030?
The standard load-side lug kit for 15A to 30A FA frame breakers is the AL50FA. This lug kit accepts 14-4 AWG copper or 12-4 AWG aluminum conductors.
Can the FA32030 be installed in standard residential load centers?
No. The FA32030 features an I-Line plug-on mounting style. It is exclusively designed for commercial and industrial Square D I-Line panelboards and switchboards, and will not fit in QO or Homeline load centers.
Is the FA32030 rated for 480V systems?
No. The FA32030 is rated for a maximum of 240VAC or 250VDC. For 480V applications, a different F-frame breaker, such as the FH or FC frame, is required.
How does the FA32030 connect to the panelboard bus?
The breaker utilizes Square D's I-Line plug-on design. The line side features jaws that push directly onto the panelboard bus assembly, requiring no additional mounting brackets or hardware.
