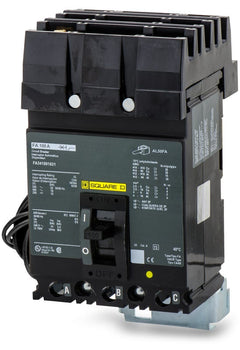

Square D FA34080 Molded Case Circuit Breaker
- 80A
- 3 Pole
- I-Line
Square D
FA34080
Molded Case Circuit Breaker
Brand
Square D
SKU
FA34080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA34080 - 80A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D FA34080 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA34080 |
| Series | FA |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D FA34080 - 80A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA34080-R |
| Series | FA |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
100A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
Description
Part of the legacy F-frame series, the Square D FA34080 provides robust overcurrent protection for commercial and industrial electrical systems. This 3-pole, 80A breaker installs into standard I-Line panelboards, utilizing a plug-on design for efficient deployment. It features a fixed thermal-magnetic trip unit with long-time and instantaneous (LI) functions. Rated at 18 kAIC at 480VAC, it includes Visi-Trip technology for quick fault identification and is fully HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA34080-R |
| Series | FA |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
7 answersHow does the FA34080 physically connect to the panelboard?
This breaker features an I-Line plug-on connection for the line side and mechanical lugs on the load side. It is designed exclusively for phase-to-busbar mounting in Square D I-Line distribution panelboards and switchboards.
Are the load-side lugs included with this circuit breaker?
Yes, factory-installed mechanical lugs are included on the load side. They accommodate 14 to 1/0 AWG copper wire or 12 to 1/0 AWG aluminum wire.
What is the physical difference between the FA34080 and the FAL34080?
The FA34080 is an I-Line plug-on circuit breaker designed specifically for I-Line panelboards. The FAL34080 is a unit-mount (lug-to-lug) breaker intended for individual enclosures or standard switchboards. They cannot be used interchangeably.
What is the direct modern replacement for the legacy FA34080?
Schneider Electric designates the PowerPact B-frame BDA36080 as the recommended replacement for this legacy F-frame breaker. Upgrading to the B-frame may require different spatial clearances depending on your existing I-Line panel setup.
Is this FA series circuit breaker suitable for HVAC applications?
Yes, this breaker is HACR rated. It is fully certified to provide branch circuit protection for commercial heating, air conditioning, and refrigeration equipment.
How does the FA34080 indicate a tripped condition?
It features Square D Visi-Trip technology. During an overcurrent or short-circuit fault, the handle snaps to a center position and displays a highly visible red indicator, allowing electricians to quickly identify the tripped breaker in a fully populated panel.
Will this F-frame breaker fit into a residential QO or Homeline load center?
No. The FA34080 is an industrial molded case circuit breaker with a specialized I-Line mounting bracket. It is completely incompatible with standard residential load centers and will only fit Square D I-Line distribution infrastructure.
