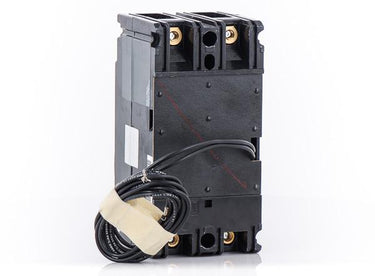

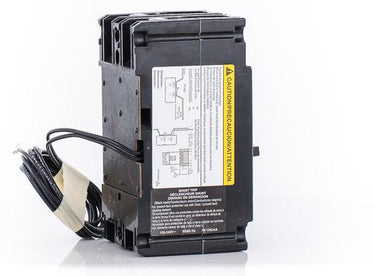

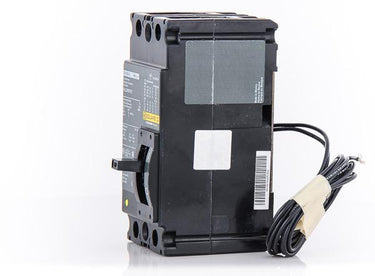

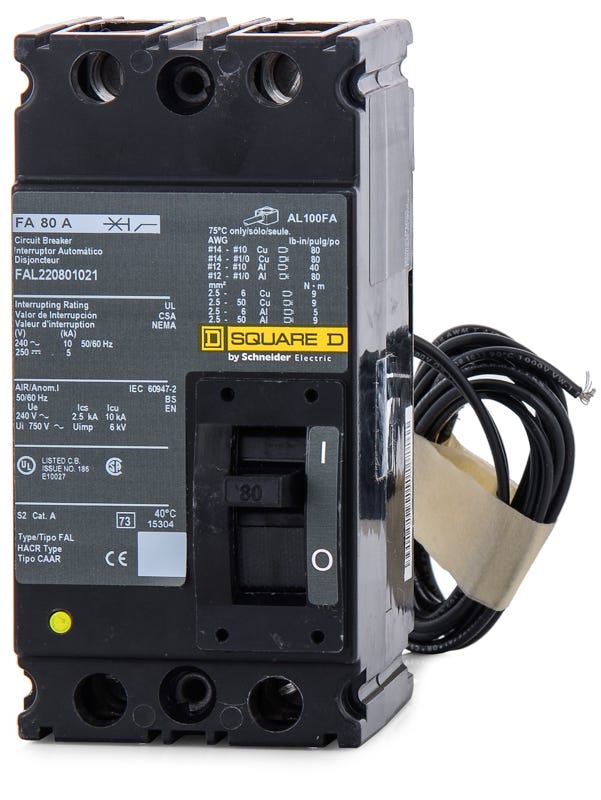

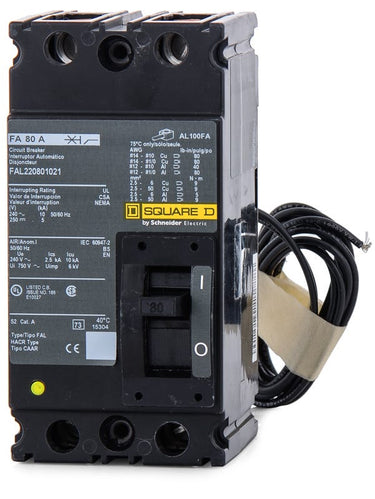

Square D FAL220801021 Molded Case Circuit Breaker
- 80A
- 2 Pole
- Unit Mount
Quantity
Square D FAL220801021 - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
Description
Designed with a factory-installed shunt trip, the FAL220801021 allows for remote circuit interruption in safety-critical applications. This 2-pole, 80-amp molded case circuit breaker belongs to the legacy F-Frame family, delivering thermal-magnetic protection for commercial and industrial systems. It mounts into standard Square D enclosures and switchboards, providing a 10kAIC rating at 240VAC. When upgrading, it can be replaced by the BDL26080 equipped with a compatible shunt trip kit.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL220801021 |
| Series | FAL |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Control Panels |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
7 answersCan I use the FAL220801021 to replace an older FA frame breaker?
Yes, this legacy F-Frame molded case circuit breaker is a direct replacement for older FA and FAL series breakers used in Square D enclosures, switchboards, and control panels.
What does the 1021 suffix mean on the FAL220801021?
The 1021 suffix indicates that this breaker includes a factory-installed 120/240VAC shunt trip. This accessory allows for remote circuit interruption in safety-critical applications.
Does this breaker require a separate mounting kit for switchboard installation?
The FAL220801021 is a unit-mount, feed-thru breaker. It mounts directly using its built-in hardware and does not plug onto a busbar like I-Line style breakers.
Can the FAL220801021 be used in DC control circuits?
Yes, this thermal-magnetic breaker is dual-rated for AC and DC systems. It provides a 10kAIC rating at 240VAC and a 5kAIC rating at 250VDC.
What type of trip unit is installed in the FAL220801021?
This breaker features a fixed thermal-magnetic trip unit with long-time and instantaneous (LI) trip functions, providing standard overload and short-circuit protection.
What is the modern replacement for the FAL220801021?
When upgrading from the legacy F-Frame, this breaker can be replaced by a modern PowerPact B-Frame breaker, such as the BDL26080, provided it is equipped with a compatible shunt trip kit.
Is the FAL220801021 HACR rated for HVAC equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires specialized overcurrent protection.
