Square D FAL24090 Molded Case Circuit Breaker
- 90A
- 2 Pole
- Unit Mount
Square D
FAL24090
Molded Case Circuit Breaker
Brand
Square D
SKU
FAL24090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

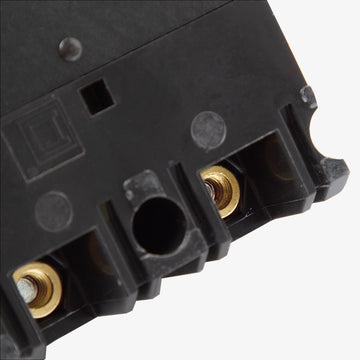

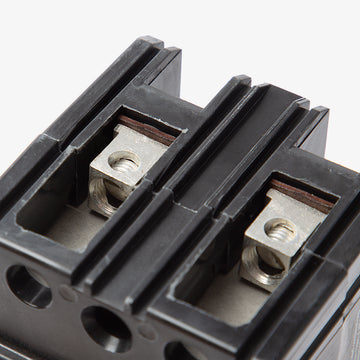

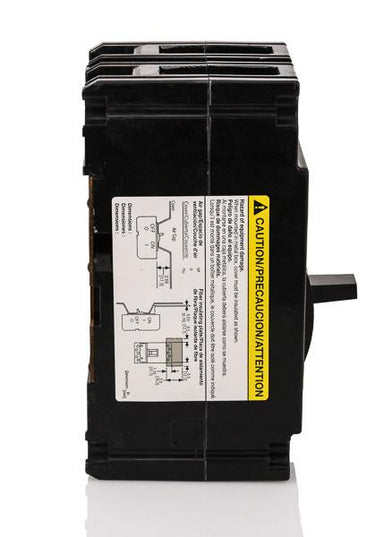

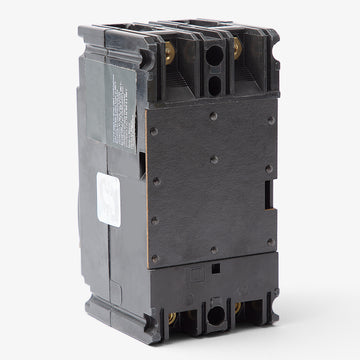

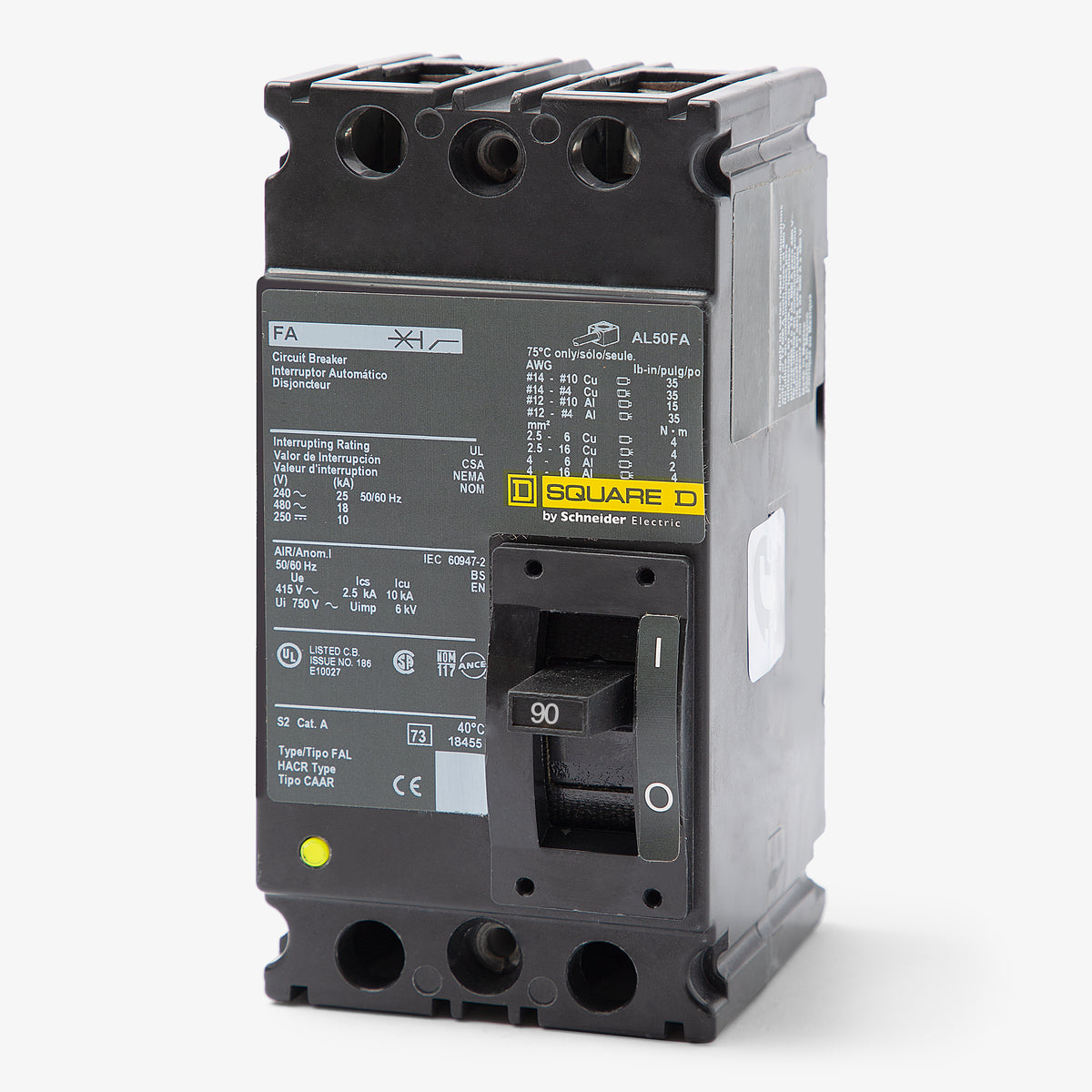

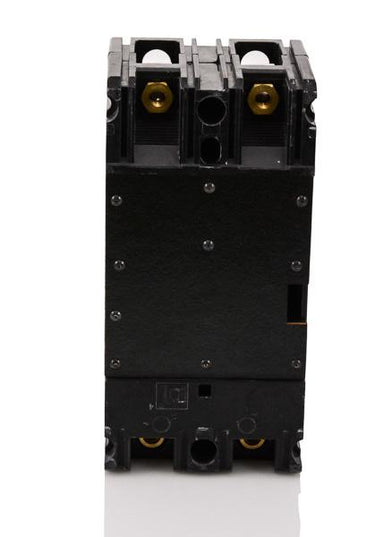

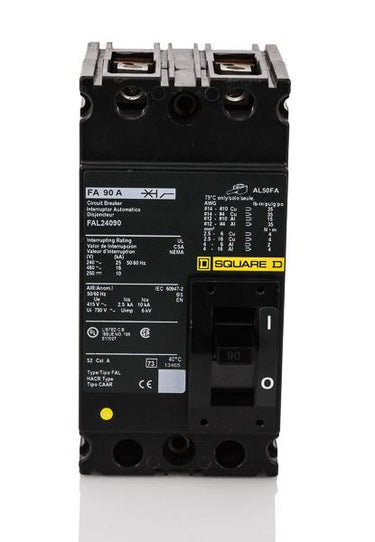

Square D FAL24090 - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FAL24090 - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL24090 |
| Series | FAL |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Control Panels, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed |
Sold out
Quantity
Square D FAL24090 - 90A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL24090-R |
| Series | FAL |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Control Panels, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed |
Similar Items
100A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
Description
Operating at 90 amps, the Square D FAL24090 is a 2-pole MCCB designed for industrial applications. It provides fixed thermal and magnetic (LI) protection to safeguard critical circuits. This unit-mount breaker fits into Square D enclosures and switchboards. As a legacy F-Frame component, it serves as a replacement for older systems and is succeeded by the HDL26090. Rated 18kAIC at 480VAC, it is HACR rated and includes a Visi-Trip indicator to simplify troubleshooting.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL24090 |
| Series | FAL |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Control Panels, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed |
Product FAQs
7 answersWhat is the recommended replacement for the legacy FAL24090 circuit breaker?
Schneider Electric designates the PowerPact B-frame series as the direct replacement for legacy F-frame breakers. For a 90A, 2-pole application, the BDL26090 is the recommended substitute, though retrofitting may require updated mounting hardware.
Are the lugs on the FAL24090 removable, and what wire sizes do they accept?
Yes, the breaker uses removable mechanical lugs (catalog number AL100FA). These lugs accept 14 to 1/0 AWG copper or 12 to 1/0 AWG aluminum conductors.
Can I field-install a shunt trip on this F-frame breaker?
Internal accessories like shunt trips or auxiliary switches for the FAL series are typically factory-installed (often indicated by a four-digit suffix like 1021). If you require field-installable accessories, you may need to upgrade to a modern PowerPact breaker.
How is the FAL24090 mounted in an electrical system?
This is a unit-mount, feed-thru breaker. It is secured with mounting screws and requires wire connections at both the line and load terminals. It is not compatible with I-Line plug-on panelboards.
Does the FAL24090 support direct current (DC) systems?
Yes, this thermal-magnetic breaker is rated for up to 250VDC with a 10kA interrupting capacity, making it suitable for specific DC control panels and battery applications.
What enclosures are compatible with the FAL24090?
This breaker is designed for standard Square D enclosures, industrial control panels, and switchboards configured for unit-mount F-frame breakers.
Can the trip settings on the FAL24090 be adjusted?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time (overload) and instantaneous (short-circuit) trip functions are factory set and cannot be modified in the field.
