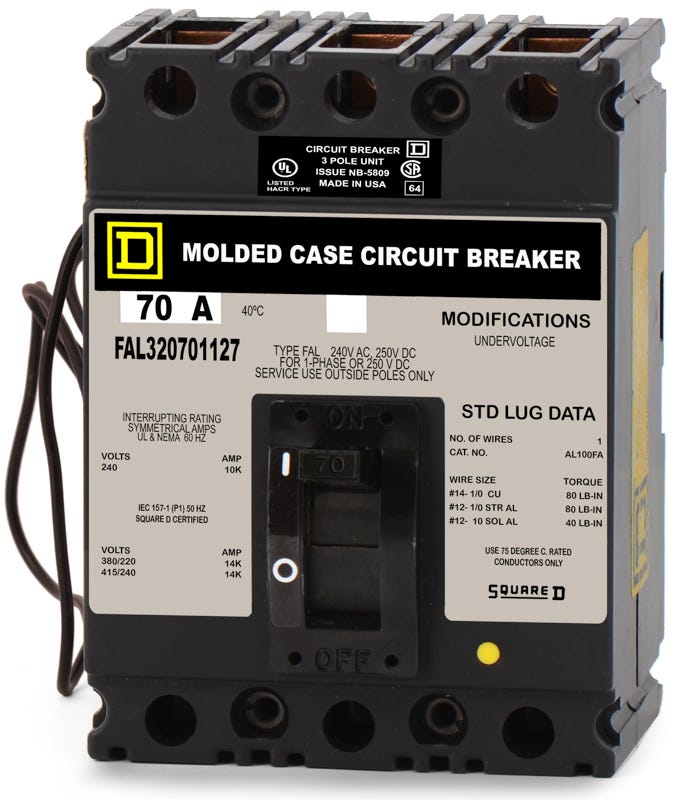

Square D FAL32070-1127 Molded Case Circuit Breaker
- 70A
- 3 Pole
- Unit Mount
Square D
FAL32070-1127
Molded Case Circuit Breaker
Brand
Square D
SKU
FAL32070-1127
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FAL32070-1127 - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
70A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy F-Frame series, the Square D FAL32070-1127 provides robust 70A thermal-magnetic protection for industrial applications. This unit-mount breaker features a factory-installed 24VDC undervoltage release to ensure safe tripping during voltage drops. It installs into compatible Square D enclosures and switchboards. For modern upgrades, this model is replaced by the PowerPact BDL36070. Rated for 10kAIC at 240VAC, it includes line and load lugs and a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL32070-1127-R |
| Series | FAL |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards, Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Side Lugs Included, Undervoltage Release (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489, W-C-375B/GEN |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
7 answersWhat does the "-1127" suffix mean on the FAL32070-1127?
The "-1127" suffix indicates that this breaker includes a factory-installed 24Vdc Undervoltage Release (UVR). This accessory automatically trips the breaker if the control voltage drops below a predetermined safety threshold.
Is the FAL32070-1127 compatible with I-Line panelboards?
No, this is a unit mount (feed-thru) breaker designed to be bolted into place and wired with mechanical lugs on both the line and load sides. For I-Line panelboards that require a plug-on line connection, you will need the FA32070 equivalent.
What is the current replacement for the legacy Square D FAL series?
The FAL series is a legacy F-frame breaker that has been superseded by the Square D PowerPact B-frame series. For new installations or complete panel upgrades, PowerPact B-frame breakers provide the modern equivalent for 15A to 125A unit mount applications.
Are the thermal and magnetic trip points adjustable on this breaker?
No, the FAL32070-1127 features a fixed thermal-magnetic trip unit. The long-time overload and instantaneous short-circuit protection settings are factory-calibrated and cannot be modified in the field.
Can I use aluminum wire with the factory lugs on this breaker?
Yes, the standard mechanical lugs on the FAL32070-1127 are dual-rated for both copper and aluminum conductors. They accept 14 to 1/0 AWG copper wire and 12 to 1/0 AWG aluminum wire.
Does this breaker support direct current (DC) applications?
Yes, in addition to its standard AC ratings, this breaker is certified for DC systems up to 250VDC. When deployed in a 250VDC application, it provides a 5kA interrupting capacity.
What frame size does the FAL32070-1127 belong to?
This breaker is part of the Square D legacy F-frame family. It shares the same physical footprint as other FA, FH, and FC breakers, but is specifically configured for unit mounting rather than I-Line bus connections.
