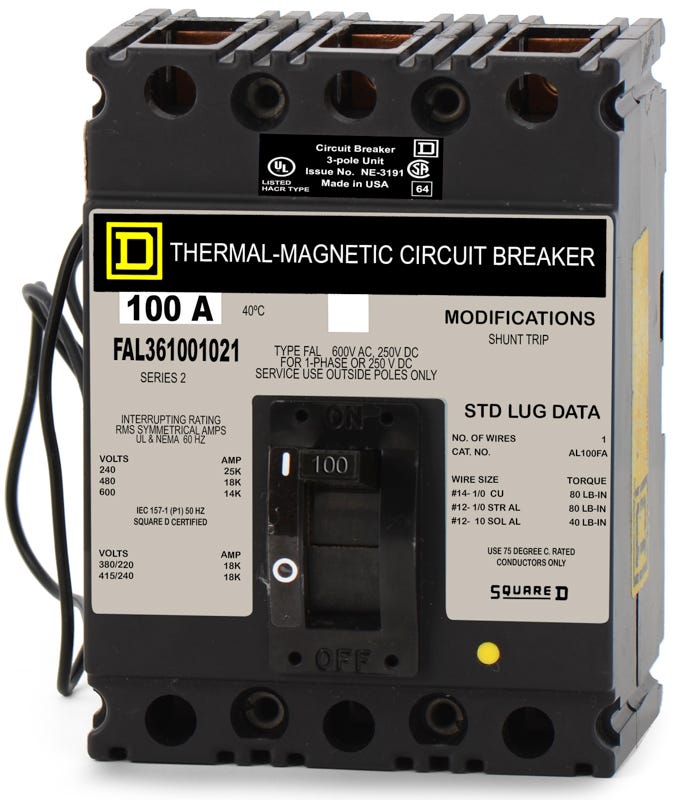

Square D FAL36100-1021 FAL361001021 - 100A 3 Pole Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
Quantity
Square D FAL361001021 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Square D FAL361001021 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL36100-1021 |
| Series | FAL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (120-240VAC), Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D FAL361001021 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL36100-1021-R |
| Series | FAL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (120-240VAC), Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Description
Featuring integrated remote-trip capabilities, the Square D FAL36100-1021 is a 3-pole, 100A molded case circuit breaker with thermal-magnetic (LI) protection. This unit mount MCCB fits Square D enclosures and switchboards. The "-1021" suffix denotes a factory-installed 120-240VAC shunt trip for emergency stops. It crosses over to the HDL36100 series for modern upgrades. Rated 18kAIC at 480VAC, it includes a Visi-Trip indicator for rapid fault identification and carries a HACR rating.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL36100-1021-R |
| Series | FAL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (120-240VAC), Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
7 answersWhat does the "-1021" suffix mean on the FAL36100-1021?
The "-1021" suffix indicates that this circuit breaker includes a factory-installed 120/240V AC shunt trip. This accessory allows the breaker to be tripped remotely, which is commonly used for emergency stops or automated control systems.
What is the modern replacement for the legacy Square D FAL36100-1021?
The FAL series is an obsolete F-frame breaker. Schneider Electric designates the PowerPact B-Frame (such as the BDL36100) as the modern replacement for 15 to 125A F-frame applications. To replicate the "-1021" functionality, you will also need to add a compatible 120/240V AC shunt trip accessory to the new B-frame breaker.
Will the FAL36100-1021 fit in a Square D I-Line panelboard?
No. This is a unit-mount (feed-thru) breaker equipped with line and load lugs, designed for standard enclosures, switchboards, and motor control centers. It does not have the plug-on jaw connections required for I-Line panelboards.
Can the FAL36100-1021 be reverse fed?
Yes. Standard Square D FAL thermal-magnetic circuit breakers are suitable for reverse feeding, provided they do not have restrictive "Line" and "Load" markings. This makes them versatile for backfeed applications like generator connections.
Is the FAL36100-1021 suitable for HVAC applications?
Yes. This breaker is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment that requires group motor protection.
What replacement lug kit is compatible with the FAL36100-1021?
The standard mechanical lug kit for this 100A breaker is the AL100FA. These lugs accept 14 to 1/0 AWG copper or 12 to 1/0 AWG aluminum wire.
Does the FAL36100-1021 provide ground fault or arc fault protection?
No. This is a standard thermal-magnetic breaker providing only overload (long-time) and short-circuit (instantaneous) protection. It does not include GFCI or AFCI capabilities.
