Square D FAP36080 Molded Case Circuit Breaker
- 80A
- 3 Pole
- Bolt-On
Square D
FAP36080
Molded Case Circuit Breaker
Brand
Square D
SKU
FAP36080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

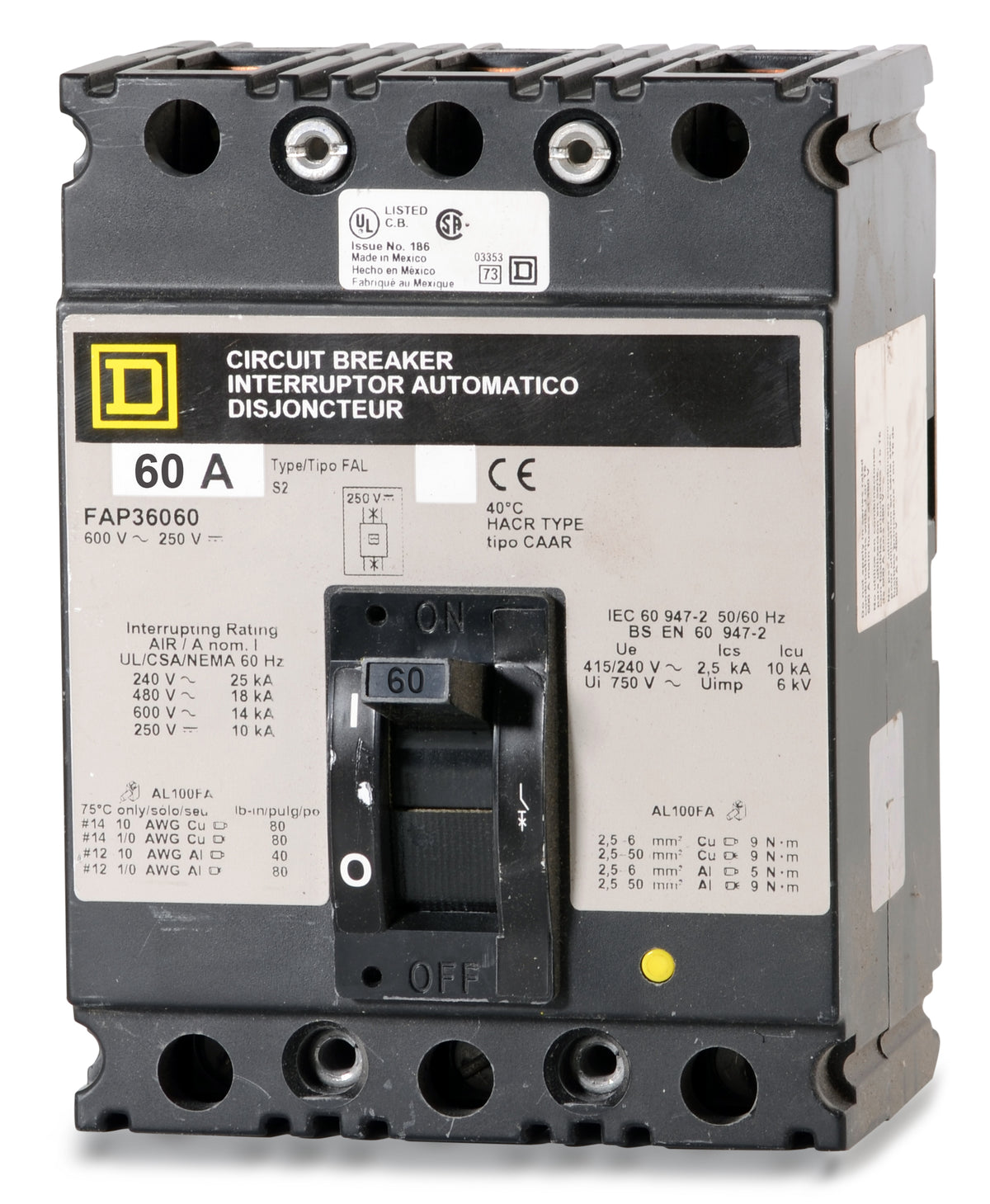

Square D FAP36080 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial applications, the FAP36080 delivers 80A of thermal-magnetic overcurrent protection across three phases. It operates reliably up to 600VAC and includes standard long-time and instantaneous trip functions. The bolt-on configuration mounts securely into Square D panelboards and motor control centers. It can be replaced by the newer PowerPacT H-Frame (HJP36080). With an 18 kAIC rating at 480VAC, this breaker includes the Visi-Trip visual indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAP36080 |
| Series | FAP |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FAP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Motor Control Centers, Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersDoes the FAP36080 plug onto a busbar or bolt into place?
The FAP36080 is a unit-mount, bolt-on circuit breaker. It is designed to be hard-mounted to a backpan or mounting plate using screws, and cables are terminated directly to the feed-thru lugs. It does not plug onto a busbar.
Is the FAP36080 suitable for direct current (DC) systems?
Yes, this thermal-magnetic breaker is rated for both AC and DC systems. It can handle up to 250VDC with a maximum interrupting capacity of 10kA, making it suitable for specific industrial DC control panels.
What wire sizes are accepted by the factory lugs on the FAP36080?
The included feed-thru lugs accept conductors from 14 AWG up to 1/0 AWG. Both copper (Cu) and aluminum (Al) wires are compatible. Always ensure the lugs are torqued to the manufacturer specifications printed on the breaker.
Can I adjust the trip settings on the FAP36080?
No, the FAP36080 features a fixed thermal-magnetic trip unit. Both the long-time (overload) and instantaneous (short-circuit) trip functions are factory-set and cannot be adjusted in the field.
What type of equipment is the FAP36080 designed to be installed in?
As a legacy F-frame molded case circuit breaker, it is commonly installed in Square D motor control centers (MCCs) and compatible panelboards that accommodate unit-mount, bolt-on breakers.
