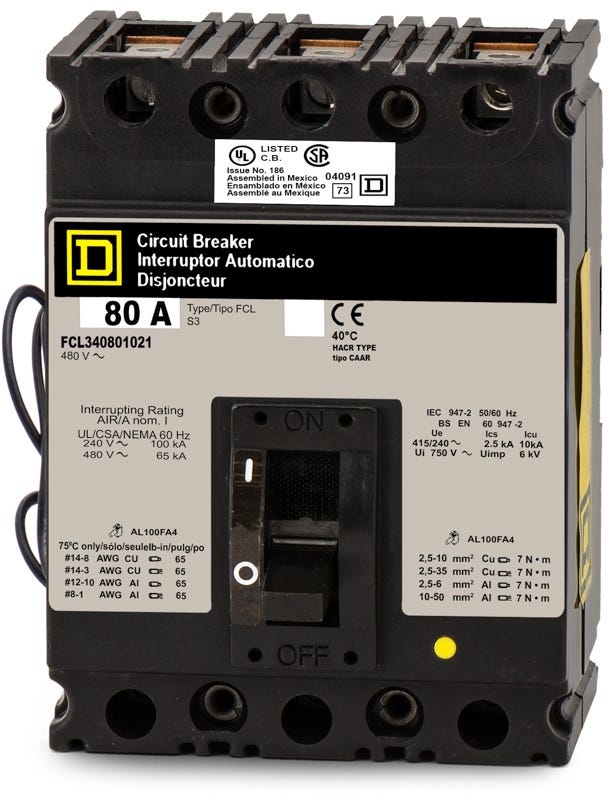

Square D FCL340801021 - 80A 3 Pole Molded Case Circuit Breaker

Brand Square D
SKU FCL340801021
Square D FCL340801021 3 Pole Circuit Breaker
Free Shipping Over $99

Square D FCL340801021 - 80A 3 Pole Molded Case Circuit Breaker

Brand Square D
SKU FCL340801021
Select Item Condition
Earn 574 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more
Square D FCL340801021 3 Pole Circuit Breaker

Square D FCL340801021 - 80A 3 Pole Molded Case Circuit Breaker

New

$574.13 No stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Part of the legacy F-frame series, the FCL340801021 provides robust current-limiting protection for commercial and industrial electrical systems. It features a factory-installed 120/240VAC shunt trip, allowing for remote tripping capabilities. This 3-pole, 80A unit mount MCCB installs into compatible Square D enclosures, switchboards, and motor control centers. Rated at 65 kAIC at 480VAC, it effectively restricts let-through energy to safeguard downstream equipment from severe fault currents.

Specifications

Brand Square D
Series FCL
Part Number FCL340801021
Amperage 80A
Voltage 240VAC, 480VAC
Poles 3
Phase 3
AIC Rating 100kA @ 240VAC, 65kA @ 480VAC
Mounting Style Unit Mount
Terminal Type Lugs
For Use With Square D Enclosures, Switchboards, Motor Control Centers
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 14-1/0 AWG (Cu), 12-1/0 AWG (Al)
Max Wire 1/0 AWG
Min Wire 14 AWG
Available Options Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment
Accessories Lugs, Shunt Trip (120/240VAC)
Standards CSA C22.2 No. 5, NEMA AB 1, UL 489
Approval CSA, UL
Temp Rating 40C
Construction Features HACR Rated, Current Limiting, High Interrupting Capacity, Trip-Free Mechanism, Common Trip
Special Features Current Limiting
