Square D FCP34020 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Quantity

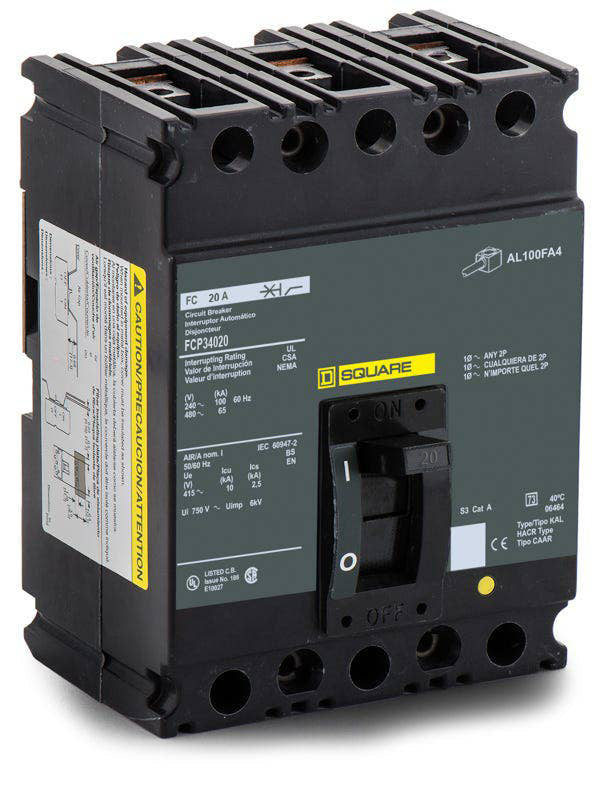

Square D FCP34020 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Engineered for commercial power distribution, the FCP34020 is a 3-pole, 20A molded case circuit breaker from Square D's legacy F-Frame family. This unit bolts securely into compatible Square D panelboards, switchboards, and motor control centers. For modern system upgrades, it crosses over to the HJL36020 replacement model. Featuring an extra-high interrupting capacity of 65 kAIC at 480VAC, this HACR-rated breaker handles substantial fault currents safely.Specifications
| Brand | Square D |
|---|---|
| Part Number | FCP34020 |
| Series | FCP |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC |
| Frame Type | FCL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB-1, W-C-375B/GEN |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Extra High Interrupting Capacity |
Product FAQs
6 answersWhat is the modern replacement for the FCP34020 circuit breaker?
The FCP34020 is a legacy F-Frame breaker. For modern system upgrades or replacements, it crosses over to the Square D HJL36020, which is a PowerPacT H-Frame circuit breaker with equivalent electrical ratings.
What equipment is the FCP34020 designed to fit?
This bolt-on molded case circuit breaker is engineered for installation in compatible Square D panelboards, switchboards, and motor control centers. It is not designed for I-Line plug-on panels.
What wire gauge is supported by the terminals on this breaker?
The included lugs accept wire sizes ranging from 14 AWG to 1/0 AWG. The terminals are rated for both copper and aluminum conductors.
How does the LI trip function operate on the FCP34020?
The LI designation means the thermal-magnetic trip unit provides Long-Time (L) protection for overloads and Instantaneous (I) protection for short circuits. Both the thermal and magnetic trip points are fixed and cannot be field adjusted.
What is the interrupting capacity of this breaker at different voltages?
The FCP34020 features an extra-high interrupting rating of 65 kAIC when used on 480VAC systems. If installed in a 240VAC application, the interrupting capacity increases to 100 kAIC.
Is the FCP34020 rated for HVAC equipment?
Yes, this circuit breaker is HACR rated, making it safely approved for use with heating, air conditioning, and refrigeration systems that require overcurrent protection.
