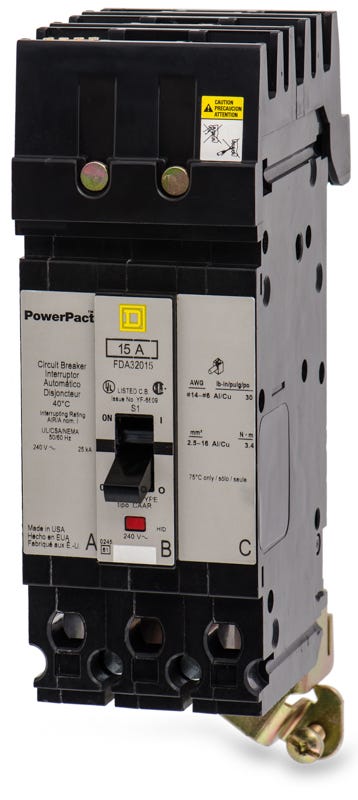

Square D FDA32015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- I-Line
Square D
FDA32015
Molded Case Circuit Breaker
Brand
Square D
SKU
FDA32015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FDA32015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy F-frame series, this 15A molded case circuit breaker delivers thermal-magnetic protection for commercial and industrial applications. It installs into Square D I-Line panelboards and switchboards, utilizing a plug-on phase connection for rapid deployment. Featuring a 25kAIC interrupt rating at 240VAC, the unit includes standard long-time and instantaneous (LI) trip functions. Note that this specific model has been superseded by the PowerPact HDA36015 for modern upgrades.Specifications
| Brand | Square D |
|---|---|
| Part Number | FDA32015 |
| Series | FDA |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards accept the FDA32015 circuit breaker?
This F-Frame breaker is specifically designed for installation in Square D I-Line panelboards and switchboards. It utilizes a plug-on phase connection for rapid deployment.
What is the modern replacement for the legacy FDA32015?
The FDA32015 is a legacy F-Frame breaker. For new installations or modern upgrades, Square D has superseded this model with the PowerPact HDA36015.
Does the FDA32015 require separate mounting hardware for the line side?
No, it features an I-Line style plug-in connection. The breaker jaws clamp directly onto the I-Line bus assembly, providing both the mechanical mounting and electrical phase connection without additional fasteners.
Can the trip settings on the FDA32015 be adjusted?
No, this breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous (LI) protection parameters are factory-set and cannot be modified in the field.
What wire sizes are compatible with the load lugs on this breaker?
The factory-installed lugs accept either copper or aluminum conductors ranging from 14 AWG to 4 AWG.
Is this breaker rated for DC voltage applications?
No, the FDA32015 is only rated for AC voltage, with a maximum rating of 240V AC. It does not carry a DC voltage rating.
