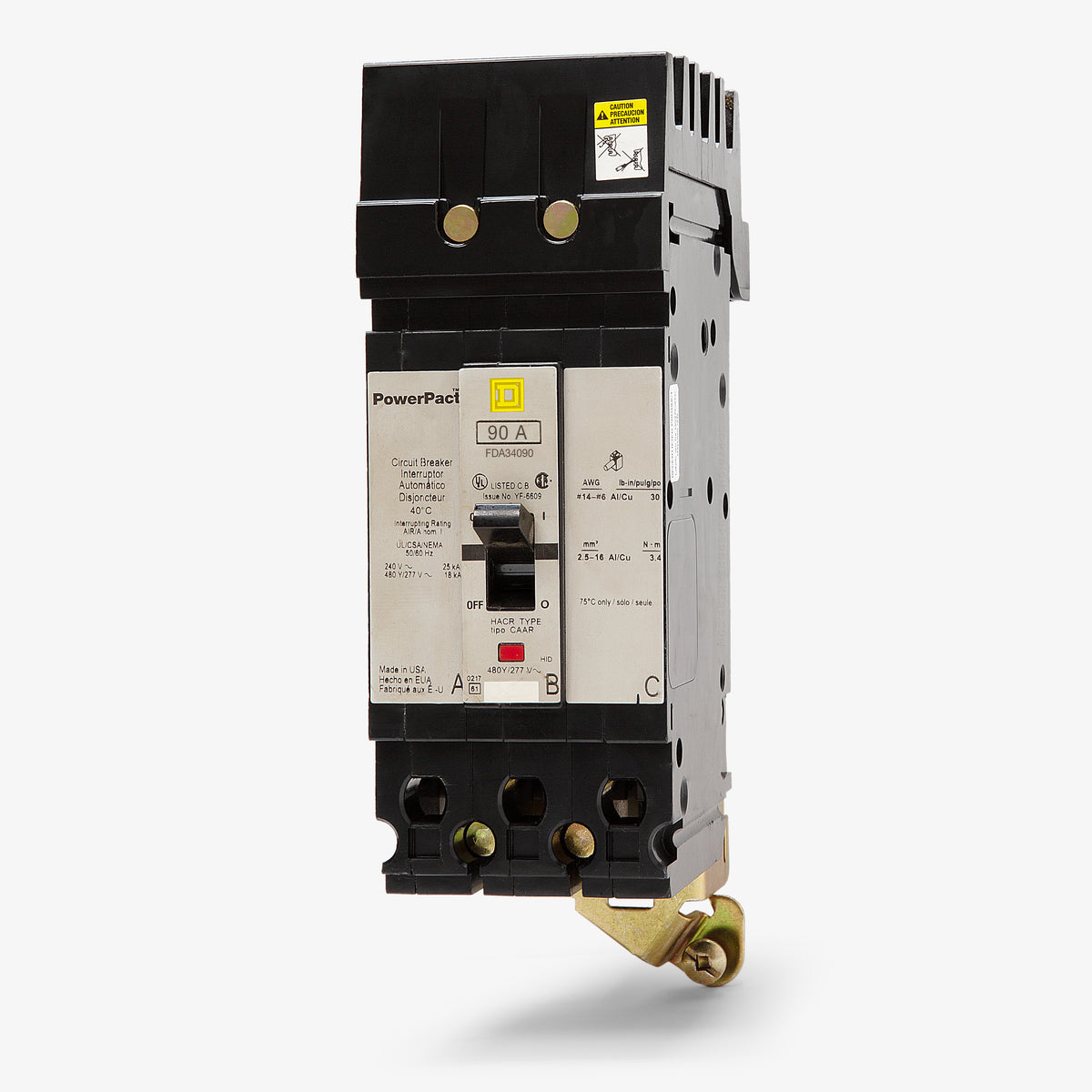

Square D FDA34090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- I-Line
Square D
FDA34090
Molded Case Circuit Breaker
Brand
Square D
SKU
FDA34090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FDA34090 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Square D FDA34090 is a 3-pole, 90A molded case circuit breaker from the legacy F-Frame series. It provides robust overcurrent protection for demanding distribution systems. This unit mounts into Square D I-Line panelboards, utilizing a plug-on design that simplifies installation. It serves as a reliable replacement for older setups and is officially replaced by the HDA36090. Rated 18kAIC at 480V, it features a fixed thermal-magnetic trip unit.Specifications
| Brand | Square D |
|---|---|
| Series | FDA |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersIs the FDA34090 still manufactured, or is there a modern replacement?
The FDA34090 is a legacy F-frame circuit breaker and is no longer in active production. It has been officially replaced by the Square D PowerPact H-frame series, specifically the HDA36090, which maintains the same I-Line mounting style and 90-amp rating.
Can I install the FDA34090 in a standard Square D QO or NQ panelboard?

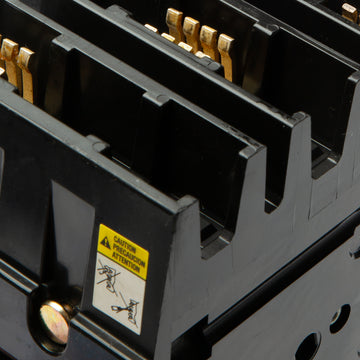

No. This breaker features a specialized plug-on jaw connection on the line side. It is exclusively compatible with Square D I-Line panelboards and switchboards, and cannot be installed in QO, NQ, or NF series panels.
How is the FDA34090 secured inside the panelboard?

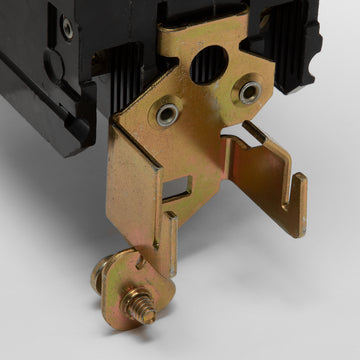

The breaker utilizes a plug-on phase connection that grips the I-Line busbars directly. It is then mechanically fastened to the panelboard backpan using a retaining bracket and mounting screws to ensure a rigid and safe installation.
Is the FDA34090 suitable for reverse feeding applications?
No. Because it is an I-Line style breaker with factory-installed plug-on jaws on the line side, it is strictly designed for forward feeding from the panelboard bus. Reverse feeding is not permitted.
What is the recommended lug torque for the load-side terminals?
Torque specifications are printed directly on the breaker faceplate or side label. Always use a calibrated torque wrench during installation, as improper torque can lead to thermal failure or damage to the lug threads.
