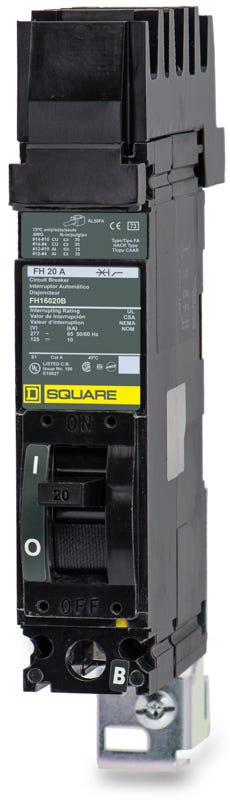

Square D FH16020B Molded Case Circuit Breaker
- 20A
- 1 Pole
- I-Line
Square D
FH16020B
Molded Case Circuit Breaker
Brand
Square D
SKU
FH16020B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FH16020B - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D FH16020B - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | FH |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, I-Line Switchboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Phase B Connection (Factory Configured), Lugs (AL50FA) |
| Standards | HACR, UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity |
Quantity
Square D FH16020B - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FH16020B-R |
| Series | FH |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, I-Line Switchboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Phase B Connection (Factory Configured), Lugs (AL50FA) |
| Standards | HACR, UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity |
Similar Items
15A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
30A 1 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the FH16020B delivers 20A thermal-magnetic protection. This F-frame model is designed exclusively for Phase B busbar connections. The unit installs into standard Square D I-Line panelboards and switchboards. For modern upgrades, this legacy component is superseded by the PowerPact BGA140202. With an interrupting capacity of 65kA at 240VAC, it provides excellent short-circuit defense and is HACR rated for HVAC equipment.Specifications
| Brand | Square D |
|---|---|
| Part Number | FH16020B-R |
| Series | FH |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, I-Line Switchboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Phase B Connection (Factory Configured), Lugs (AL50FA) |
| Standards | HACR, UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity |
Product FAQs
6 answersWhat does the "B" suffix in the FH16020B catalog number indicate?
The "B" suffix indicates that this 1-pole I-Line circuit breaker is factory-configured with a jaw connection designed to attach exclusively to the Phase B busbar in the panel.
Which panelboards accept the FH16020B circuit breaker?
This legacy F-frame breaker is designed specifically for installation in Square D I-Line panelboards and I-Line switchboards.
What is the modern replacement for the legacy FH16020B circuit breaker?
The FH16020B is a legacy component. For modern upgrades, Square D has superseded this model with the PowerPact B-frame series, specifically catalog number BGA140202, which provides equivalent 20A, 1-pole protection for I-Line panels.
How is the FH16020B physically installed in the panel?
The breaker features a plug-on I-Line jaw connection on the line side that engages directly with the panel busbar. The load side utilizes a standard mechanical lug for wire termination.
What wire sizes are accepted by the load-side lugs on this breaker?
The load-side mechanical lug accepts copper or aluminum conductors ranging from 14 AWG to 4 AWG.
Is the FH16020B suitable for use with HVAC equipment?
Yes, this circuit breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
