Square D FH360701021 Molded Case Circuit Breaker
- 70A
- 3 Pole
- I-Line
Quantity

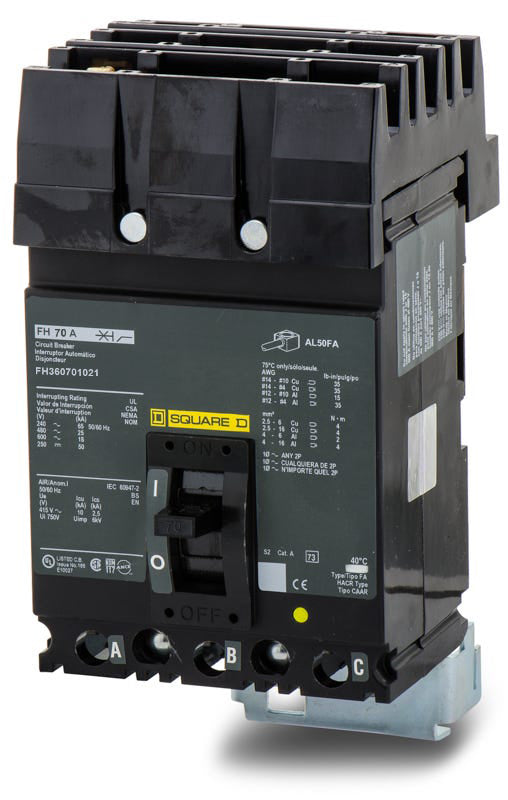

Square D FH360701021 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Engineered for remote operation, the Square D FH360701021 includes a factory-installed 120-240VAC shunt trip. This 70A thermal-magnetic breaker delivers essential long-time and instantaneous (LI) defense for industrial networks. The 3-pole unit is designed to plug into Square D I-Line panelboards. It functions as an exact replacement for legacy F-Frame installations and crosses over to the modern HGA36070 series. Capable of handling 65kAIC at 240VAC, it ensures robust fault clearing.Specifications
| Brand | Square D |
|---|---|
| Part Number | FH360701021 |
| Series | FH |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip 120-240VAC (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Visual Trip Indicator |
Product FAQs
7 answersWhat does the 1021 suffix indicate on the FH360701021 catalog number?
The 1021 suffix designates that this breaker includes a factory-installed 120/240VAC shunt trip accessory. This allows the breaker to be opened remotely via a control voltage signal, which is commonly required for emergency shutdown or fire alarm integration.
What is the modern replacement for the legacy FH360701021 circuit breaker?
The Square D F-Frame series is a legacy product. The direct modern equivalent is the PowerPact H-Frame series, specifically the HGA36070. To match the exact functionality of the FH360701021, the replacement H-Frame breaker must be equipped with a compatible 120/240VAC shunt trip accessory.
Which panelboards are compatible with the FH360701021?
This breaker features an I-Line plug-in mounting design and is exclusively compatible with Square D I-Line panelboards and switchboards. It cannot be used in standard unit-mount or load center applications.
How does the I-Line mounting system connect to the panelboard?
The I-Line design utilizes plug-on jaws that grip the panelboard bus bars directly. This establishes the line-side electrical connection and mechanical mounting simultaneously, eliminating the need for separate line-side cables or mounting hardware.
What wire sizes are accepted by the load side terminals?
The standard load lugs on this breaker accept 14 to 1/0 AWG copper wire or 12 to 1/0 AWG aluminum wire.
Are the trip settings adjustable on this F-Frame breaker?
No, the FH360701021 features a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous (LI) protection without adjustable dials for the trip curve.
Can the FH360701021 be used in direct current (DC) systems?
Yes, this thermal-magnetic breaker is rated for DC applications up to 250VDC, where it provides a 10kA interrupting capacity.
