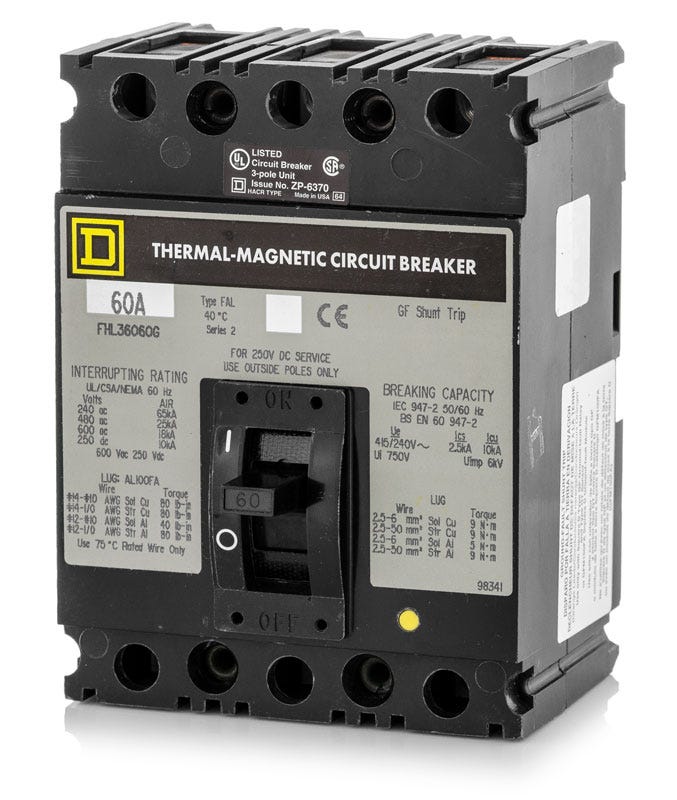

The New Square D FHL36060G Molded Case Circuit Breaker 600V 60A is a FHL Series thermal magnetic circuit breaker from Square D by Schneider Electric. This F-frame circuit breaker has 3 poles and 3 phases, and is suitable for feed-thru applications. It has a voltage rating of 600V and amperage rating of 60A. Featuring high interrupting capacity, this Square D circuit breaker has an AIC rating of 65kA at 240V, 25kA at 480V, and 18kA at 600V at 50/60 Hz. It is complete with long-time and instantaneous trip functions for reliable thermal magnetic protection. The Square D FHL36060G has ground fault shunt trip and line & load side lug terminals.
Specifications
Brand
Square D
Series
FHL
Amperage
60
Voltage
480 VAC
Poles
3
Interrupting Rating
25kA
Frame Type
F
Protection
Thermal Magnetic
Circuit Breaker Type
Molded Case
Voltage Protection Rating
600V
