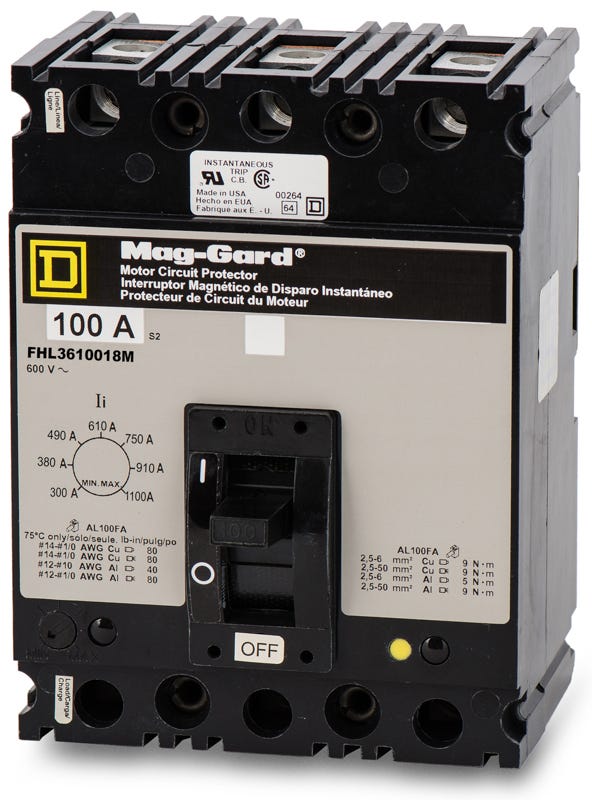

Square D FHL3610018M Motor Circuit Protector
- 100A
- 3 Pole
- Unit Mount
Quantity
Square D FHL3610018M - 100A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
Quantity
Square D FHL3610018M - 100A 3 Pole Motor Circuit Protector
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FHL3610018M-R |
| Series | FHL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC |
| Amperage Range | 300-1100A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Motor Control Centers, Motor Starters |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (AL100FA) |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1, IEC 60947-2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, High Interrupting Capacity |
Quantity
Square D FHL3610018M - 100A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FHL3610018M-R |
| Series | FHL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC |
| Amperage Range | 300-1100A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Motor Control Centers, Motor Starters |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (AL100FA) |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1, IEC 60947-2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, High Interrupting Capacity |
Description
Part of the legacy F-Frame series, the Square D FHL3610018M is a 3-pole, 100A motor circuit protector. It provides dedicated short-circuit protection for motor branch circuits when paired with an overload relay. This unit-mount device installs into motor control centers and combination starters using AL100FA lugs. For facilities upgrading older equipment, this model is replaced by the newer HJL36100M73. It features an adjustable 300-1100A magnetic trip range, rated 25 kAIC at 480VAC.Specifications
| Brand | Square D |
|---|---|
| Part Number | FHL3610018M-R |
| Series | FHL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC |
| Amperage Range | 300-1100A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Motor Control Centers, Motor Starters |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (AL100FA) |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1, IEC 60947-2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, High Interrupting Capacity |
