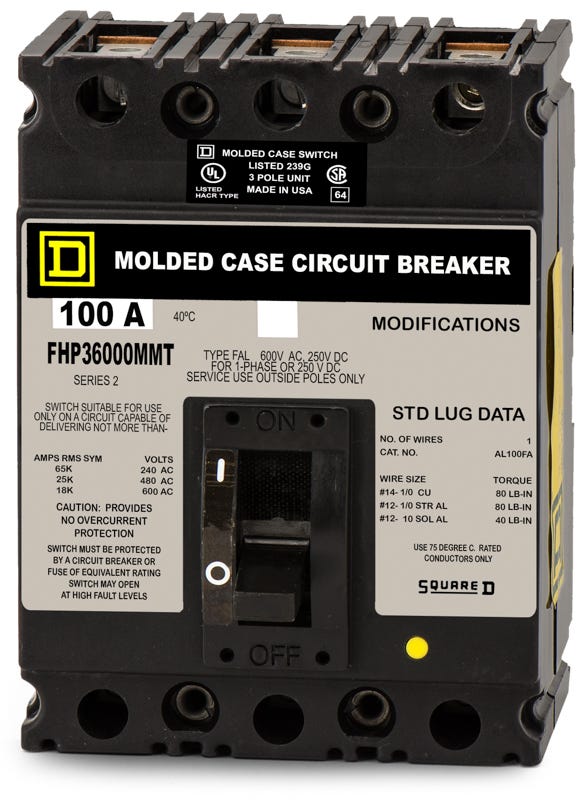

Square D FHP36000MMT - 100A 3 Pole Automatic Molded Case Switch

Brand Square D
SKU FHP36000MMT
Square D FHP36000MMT 3 Pole Circuit Breaker
Free Shipping Over $99

Square D FHP36000MMT - 100A 3 Pole Automatic Molded Case Switch

Brand Square D
SKU FHP36000MMT
Select Item Condition
Earn 161 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more
Square D FHP36000MMT 3 Pole Circuit Breaker

Square D FHP36000MMT - 100A 3 Pole Automatic Molded Case Switch

Re-Certified

$161.78 No stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Built for industrial isolation, the Square D FHP36000MMT is a 3-pole, 100A automatic molded case switch. It serves as a robust disconnect device for heavy-duty electrical systems, safely opening and closing circuits under normal conditions. This bolt-on unit installs into Square D motor control centers and panelboards. As a legacy F-Frame component, it is officially replaced by the HGL36000S15. Rated for 600VAC, it features a fixed magnetic trip for self-protection against short circuits.

Specifications

Brand Square D
Series FHP
Part Number FHP36000MMT-R
Amperage 100A
Voltage 600VAC, 250VDC
Poles 3
Phase 3
AIC Rating 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC
Mounting Style Bolt-On
Terminal Type Lugs
For Use With Square D Motor Control Centers, Panelboards
Trip Technology Magnetic Only
Trip Function Code I
Trip Function Instantaneous Only
Wire Gauge 14-1/0 AWG (Cu/Al)
Max Wire 1/0 AWG
Min Wire 14 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch
Accessories Lugs
Standards CSA C22.2 No. 5, NEMA AB 1, UL 489
Approval CSA, UL
Temp Rating 40C
Construction Features Automatic Molded Case Switch, HACR Rated
