Square D FHP36025 Molded Case Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
Quantity

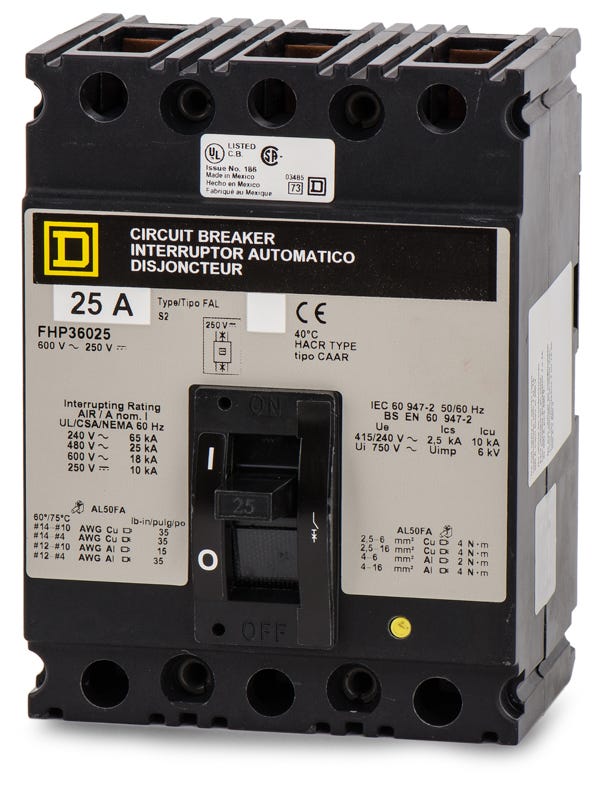

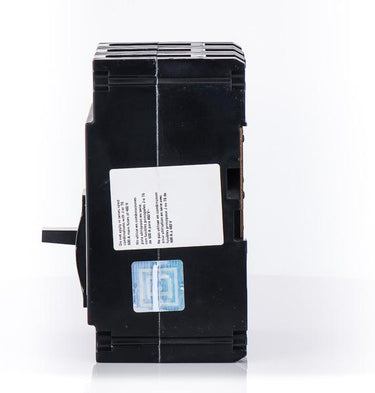

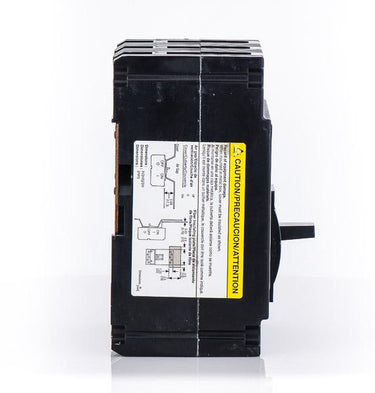

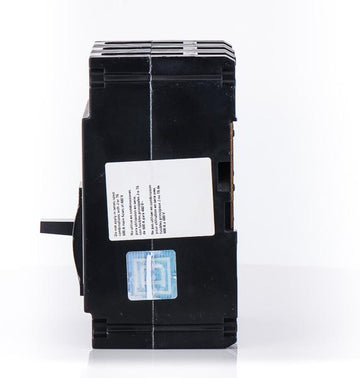

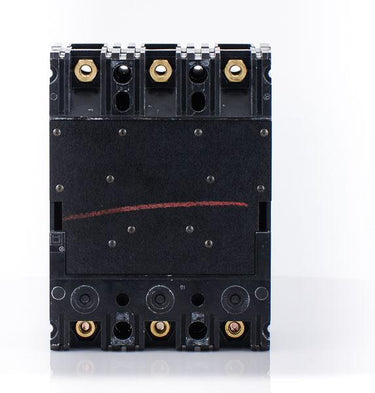

Square D FHP36025 - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Built to handle up to 600VAC, this 25-amp three-pole breaker offers robust thermal-magnetic protection for commercial and industrial facilities. The bolt-on design integrates seamlessly into Square D motor control centers and legacy switchboards. With a high interrupting capacity of 65kA at 240V and 25kA at 480V, it ensures reliable fault clearing. While this specific F-frame model is a legacy component, it can be seamlessly substituted or upgraded using the modern HGL36025 equivalent.Specifications
| Brand | Square D |
|---|---|
| Part Number | FHP36025 |
| Series | FHP |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Motor Control Centers, Switchboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity |
Product FAQs
5 answersWhat is the modern replacement for the legacy Square D FHP36025?
The FHP36025 is a legacy F-Frame breaker. Facilities looking to modernize or replace this unit can use the PowerPact H-Frame equivalent, catalog number HGL36025, which offers compatible ratings for existing enclosures.
Which enclosures and panels are compatible with the FHP36025?
This F-Frame breaker is engineered specifically for use in legacy Square D Motor Control Centers (MCCs) and industrial switchboards that accept bolt-on branch devices.
What are the wiring and termination requirements for the FHP36025?
The breaker mounts directly to the panel bus via bolt-on line connections. The load-side lugs are rated for either copper or aluminum conductors ranging from 14 AWG to 4 AWG.
Can the trip settings on the FHP36025 be adjusted in the field?
No. This breaker is equipped with a fixed thermal-magnetic trip unit providing Long-Time and Instantaneous (LI) protection. Applications requiring adjustable overload or short-circuit protection will require a different breaker class, such as an adjustable Motor Circuit Protector (MCP).
Is the FHP36025 rated for direct current (DC) applications?
Yes, in addition to its AC ratings, this thermal-magnetic breaker is rated for 250VDC systems with a 10kA interrupting capacity, allowing it to be used in industrial DC control circuits.
