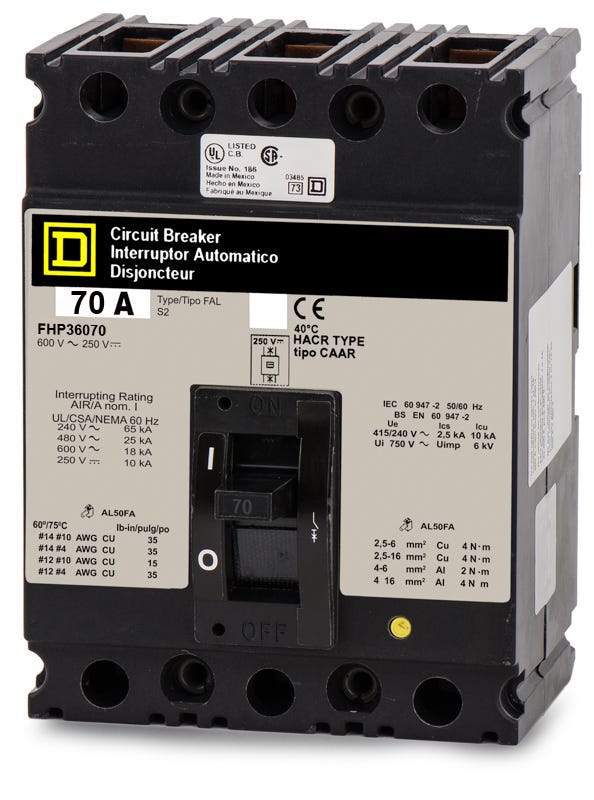

Schneider Electric FHP36070 Molded Case Circuit Breaker
- 70A
- 3 Pole
- Unit Mount
Quantity
Schneider Electric FHP36070 - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Schneider Electric FHP36070 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Schneider Electric |
|---|---|
| Part Number | FHP36070 |
| Series | FHP |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FHP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Motor Control Centers, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Quantity
Schneider Electric FHP36070 - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Schneider Electric |
|---|---|
| Series | FHP |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FHP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Motor Control Centers, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Description
Built for industrial applications, the Schneider Electric FHP36070 3-pole, 70A molded case circuit breaker delivers long-time and instantaneous (LI) protection. This unit-mount MCCB installs into Square D motor control centers and switchboards. As a legacy F-Frame device, it replaces older units and is superseded by the HJP36070. Rated at 25kAIC at 480VAC, it features a fixed thermal-magnetic trip, load side lugs, and a HACR rating for HVAC equipment.Specifications
| Brand | Schneider Electric |
|---|---|
| Series | FHP |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FHP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Motor Control Centers, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Product FAQs
7 answersWhat enclosures or panels is the FHP36070 compatible with?
This unit mount breaker is designed for use in Square D motor control centers and switchboards. It bolts directly to the mounting surface rather than plugging into a busbar.
Can this breaker be used in DC applications?
Yes, the FHP36070 is rated for up to 250VDC with a 10kA interrupting capacity. It is suitable for specific DC control circuits and battery systems requiring a 70A thermal magnetic trip.
Does this breaker provide adjustable trip settings?
No, the FHP36070 features fixed thermal and fixed magnetic trip elements. If your application requires adjustable long-time or instantaneous pickup settings, you will need a breaker with an electronic trip unit like a Micrologic module.
What does the FHP designation indicate for this breaker?
The FHP prefix indicates a Square D F-frame molded case circuit breaker with a high interrupting rating, delivering up to 65kA at 240VAC. Standard interrupting F-frames typically use the FAL prefix.
Is the FHP36070 a direct replacement for older F-frame breakers?
Yes, the FHP36070 can replace older Square D F-frame unit mount breakers with matching specifications. Verify the interrupting rating and mounting style match your existing equipment before installation.
How is the FHP36070 mounted in a switchboard?
It utilizes a unit mount, bolt-on configuration. This requires securing the breaker directly to the enclosure or mounting pan with screws, and wiring the line and load sides to the respective terminals.
Are the factory lugs on the FHP36070 rated for both copper and aluminum wire?
Yes, the included lugs are dual-rated for both copper (Cu) and aluminum (Al) conductors. Always apply an approved oxide inhibitor when terminating aluminum wire and torque to the manufacturer specifications.
