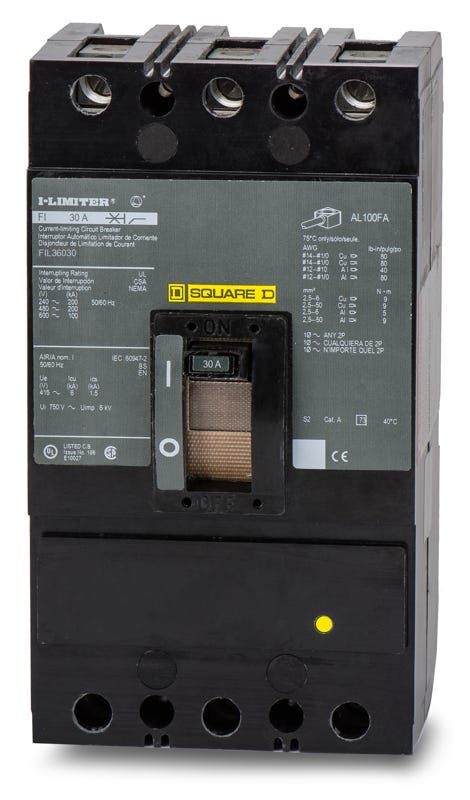

Square D FIL36030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Unit Mount
Square D
FIL36030
Molded Case Circuit Breaker
Brand
Square D
SKU
FIL36030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FIL36030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D FIL36030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FIL36030 |
| Series | FIL |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480Y/277VAC, 200kA @ 480VAC, 100kA @ 600Y/347VAC, 100kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Switchboards, Motor Control Centers, Individual Enclosures |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator, Lug Kits |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator |
| Special Features | Current Limiting |
Quantity
Square D FIL36030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FIL36030-R |
| Series | FIL |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480Y/277VAC, 200kA @ 480VAC, 100kA @ 600Y/347VAC, 100kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Switchboards, Motor Control Centers, Individual Enclosures |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator, Lug Kits |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator |
| Special Features | Current Limiting |
Similar Items
20A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding industrial environments, the Square D FIL36030 is a 3-pole, 30A current-limiting circuit breaker. It utilizes thermal-magnetic trip technology to deliver exceptional 200kAIC protection at 480VAC, safeguarding downstream equipment from high fault currents. This F-Frame MCCB features a unit-mount configuration for integration into Square D switchboards and individual enclosures. For modern panelboard upgrades, this legacy breaker is replaced by the HRL36030.Specifications
| Brand | Square D |
|---|---|
| Part Number | FIL36030-R |
| Series | FIL |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480Y/277VAC, 200kA @ 480VAC, 100kA @ 600Y/347VAC, 100kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Switchboards, Motor Control Centers, Individual Enclosures |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator, Lug Kits |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator |
| Special Features | Current Limiting |
Product FAQs
7 answersWhat types of enclosures or panels accept the FIL36030 breaker?
The FIL36030 is a unit-mount F-frame breaker designed for use in Square D switchboards, motor control centers, and individual enclosures. It is not compatible with I-Line panelboards.
What wire sizes and materials are compatible with the lugs on the FIL36030?
The factory-installed line and load lugs accept 14 AWG to 4 AWG copper or aluminum conductors.
What does the current-limiting designation mean for the FIL36030?
As a current-limiting breaker, the FIL36030 clears faults extremely fast, reducing the let-through energy and peak current during a short circuit. This helps protect downstream equipment from severe thermal and mechanical stress.
Can I install the FIL36030 in a Square D I-Line panelboard?
No. The FIL36030 is a unit-mount breaker with line and load lugs. It does not have the plug-on jaw required for I-Line bus systems.
What type of trip unit is installed in the FIL36030?
This breaker features a non-interchangeable thermal-magnetic trip unit with fixed long-time and fixed instantaneous trip functions.
How is the FIL36030 physically mounted?
The FIL36030 is a unit-mount breaker that bolts directly to a mounting pan or enclosure backplate. It does not plug onto a busbar system.
Can the FIL36030 be used in IEC applications?
Yes, the FIL36030 carries CE approval and is rated for use on 415VAC systems with a 6kA interrupting capacity under IEC standards.
