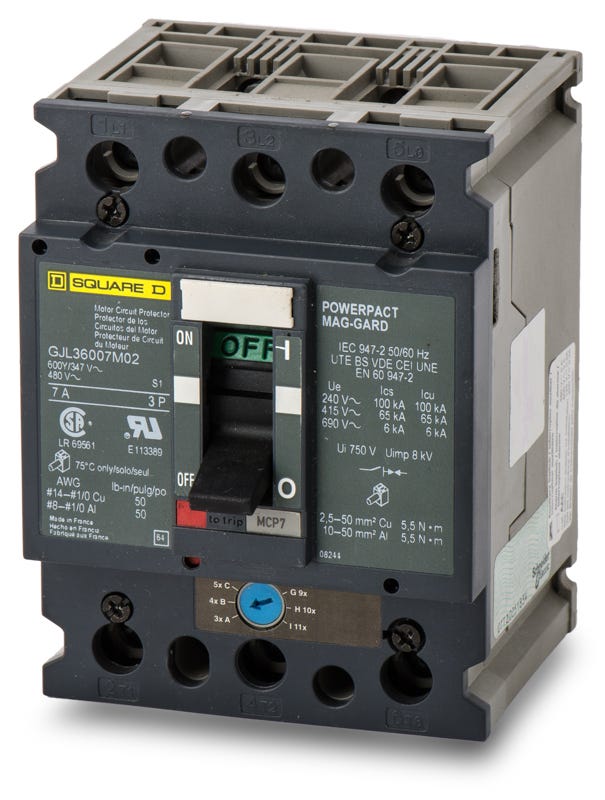

Square D GJL36007M02 Motor Circuit Protector
- 7A
- 3 Pole
- Unit Mount
Square D
GJL36007M02
Motor Circuit Protector
Brand
Square D
SKU
GJL36007M02
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D GJL36007M02 - 7A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
Sold out
Quantity
Square D GJL36007M02 - 7A 3 Pole Motor Circuit Protector
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | GJL36007M02 |
| Series | GJL |
| Amperage | 7A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 208Y/120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 18kA @ 600Y/347VAC |
| Amperage Range | 21-77A |
|---|
| Frame Type | GJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Combination Motor Controllers, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu), 8-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 8 AWG (Al) |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (Line & Load) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
Quantity
Square D GJL36007M02 - 7A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | GJL |
| Amperage | 7A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 208Y/120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 18kA @ 600Y/347VAC |
| Amperage Range | 21-77A |
|---|
| Frame Type | GJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Combination Motor Controllers, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu), 8-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 8 AWG (Al) |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (Line & Load) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
Similar Items
15A 3 Pole Motor Circuit Protector
30A 3 Pole Motor Circuit Protector
50A 3 Pole Motor Circuit Protector
Description
Rated for 7A continuous current, this 3-pole PowerPacT G-Frame protector is optimized for motor branch circuits. It integrates easily into Square D motor control centers and combination controllers to provide instantaneous short-circuit protection. The adjustable magnetic trip range of 21-77A enables precise tuning for various motor sizes and inrush profiles. Delivering a 65kAIC interrupting capacity at 480V, it can be substituted with the HJL36007M02 if needed.Specifications
| Brand | Square D |
|---|---|
| Series | GJL |
| Amperage | 7A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 208Y/120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 18kA @ 600Y/347VAC |
| Amperage Range | 21-77A |
|---|
| Frame Type | GJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Combination Motor Controllers, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu), 8-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 8 AWG (Al) |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (Line & Load) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
