Square D GJL36075M06 Circuit Breaker
Quantity
Core Specs
See full specs
Square D GJL36075M06 3 Pole Circuit Breaker
New
Quantity
Description

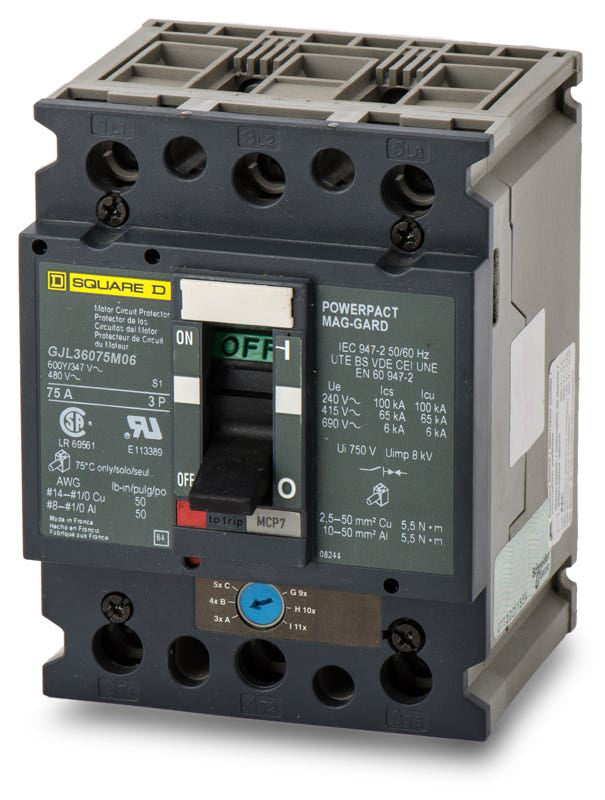

Square D GJL36075M06 3 Pole Circuit Breaker
The Square D GJL36075M06 is a 3 Pole magnetic molded case circuit breaker with a current rating of 75 Amps and a voltage rating of 600V. It has an interrupting rating of 65kAIC@480V. The GJL36075M06 has a feed-thru connection type and includes I - instantaneous functions.
Specifications
| Amperage | 75 A |
|---|---|
| Voltage | 600 V |
| Series | GJL |
| Poles | 3 |
| Phase | 3 |
|---|---|
| Interrupting Rating | 65kAIC@480V |
| Mounting Type | Unit |
|---|---|
| Frame Type | GJL |
| Connection Type | Feed-Thru |
| Length (in) | 5.4 |
| Width (in) | 3.8 |
| Height (in) | 6.5 |
| Wire Gauge | AWG 8, AWG 1/0 aluminium, AWG 14, AWG 1/0 copper |
| Configuration | Single |
| Protection | Standard |
|---|---|
| Functions | LI - Long-Time and Instantaneous |
| Approval | UL, CSA |
|---|
| Brand | Square D |
|---|---|
| MPN | GJL36075M06 |
| UPC | 785901793632 |
