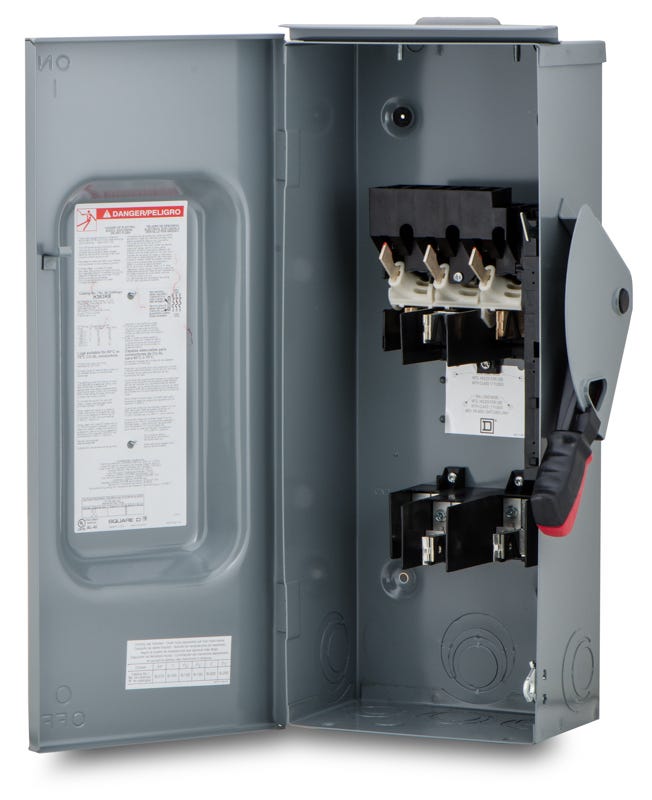

Square D H322NRB Heavy Duty Safety Switch

Brand Square D
SKU H322NRB
(69 Reviews)

Square D H322NRB Heavy Duty Safety Switch

Brand Square D
SKU H322NRB
(69 Reviews)
Select Item Condition

Quantity

Buy Now. Pay Later with Shop Pay.
Earn 711 SuperPoints
Square D H322NRB Heavy Duty Safety Switch

Square D H322NRB Heavy Duty Safety Switch

New

$711.82 In stock

Quantity

Description

Square D H322NRB Heavy Duty Outdoor Safety Switch

Authentic Square D H322NRB Safety Switch
Short Circuit Current Rating: 10kA (Class H or K) - 200kA (Class R or J)
Mounting Type: Surface
Wire Size: #14 to #3 AWG(Al/Cu)
Terminal Type: Lugs
Type of Duty: Heavy Duty
Number of Poles: 3-Pole
Maximum Voltage Rating: 240 Vac/250 Vdc
Action: Single Throw
Ampere Rating: 60A
Approvals: UL Listed
Electrical Interlock: None
Enclosure Type: Rainproof and Sleet/Ice proof (Indoor/Outdoor)
Enclosure Material: Galvannealed Steel
Enclosure Rating: NEMA 3R
Factory Installed Neutral: Yes
Disconnect Type: Fusible

Heavy Duty Safety Switches are needed when maximum performance and continuity of service is essential for commercial and industrial applications. Equipped with fuses they can provide over-current and short-circuit protection.

Specifications

Brand Square D
Series H
Nema Rating Indoor
Duty Rating Heavy Duty
Fusibility Fusible
Mpn H322NRB
Upc 785901480211
Gtin 785901480211
