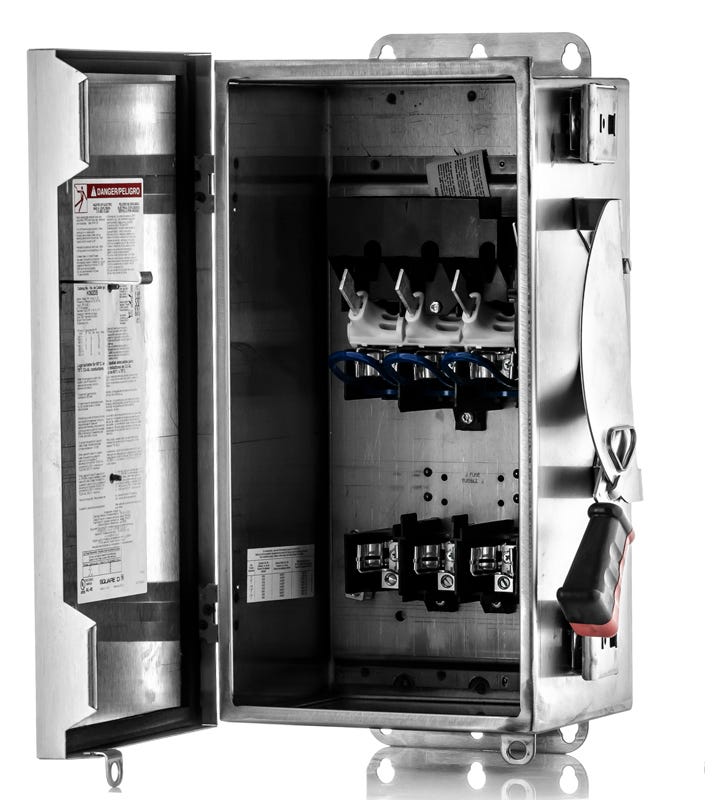

Square D H362DS Safety Switch
The Square D H362DS is a 3 Pole safety switch with a current rating of 60 Amps and a voltage rating of 600VAC, 600VDC. It has an interrupting rating of 200kA@600V. The H362DS has a surface mounting type and it is used for residential, commercial, industrial applications.
Specifications
| Duty Rating | Heavy Duty |
|---|---|
| Fusibility | Fusible |
| Amperage | 60 A |
| Voltage | 600VAC/DC |
| Poles | 3 |
|---|---|
| Phase | 3 |
| Interrupting Rating | 200kA@600V |
| Mounting Type | Surface |
|---|---|
| Frame Type | H |
| Terminal Connection | Line and Load Lug |
| Wire Gauge | AWG 14 to AWG 3 Copper, AWG 12 to AWG 3 Aluminum |
| For Use With | Class H, J, R Fuse |
| Configuration | Single |
| Number Of Wires | 3 |
| Actuator Type | Handle |
|---|
| Approval | UL |
|---|---|
| NEMA Rating | 3, 3R, 4, 4X, 5, 12 |
| Standards | RoHS |
| Temperature Rating | 60 to 75°C |
| Body Material | Stainless Steel |
| Series | H3 |
|---|---|
| Brand | Square D |
| MPN | H362DS |
| GTIN | 785901023661 |
